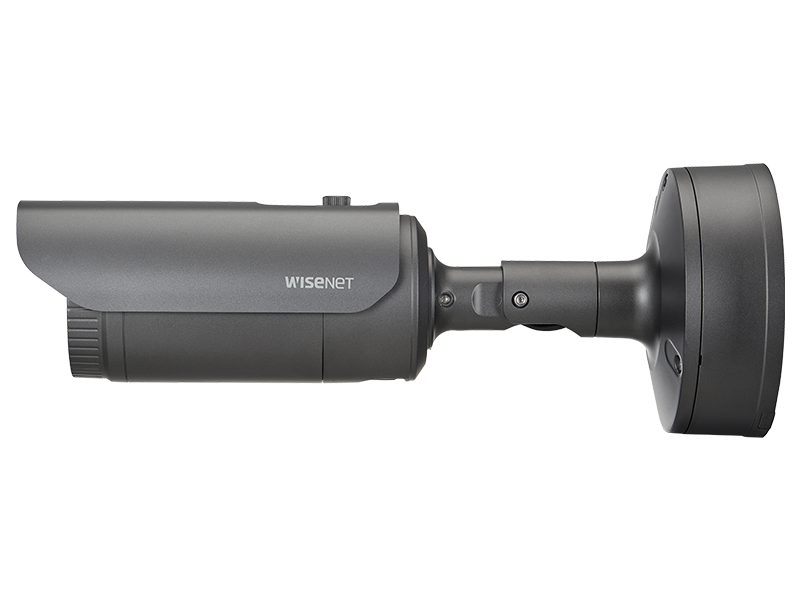

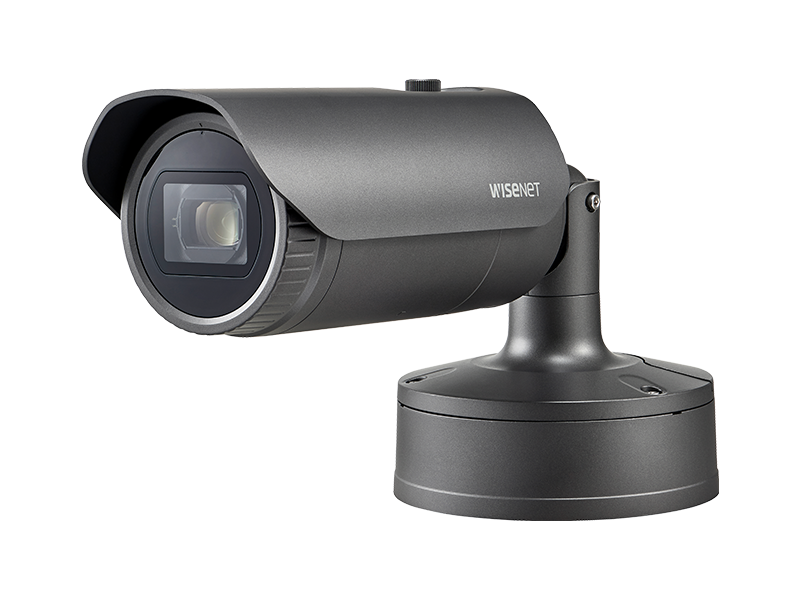

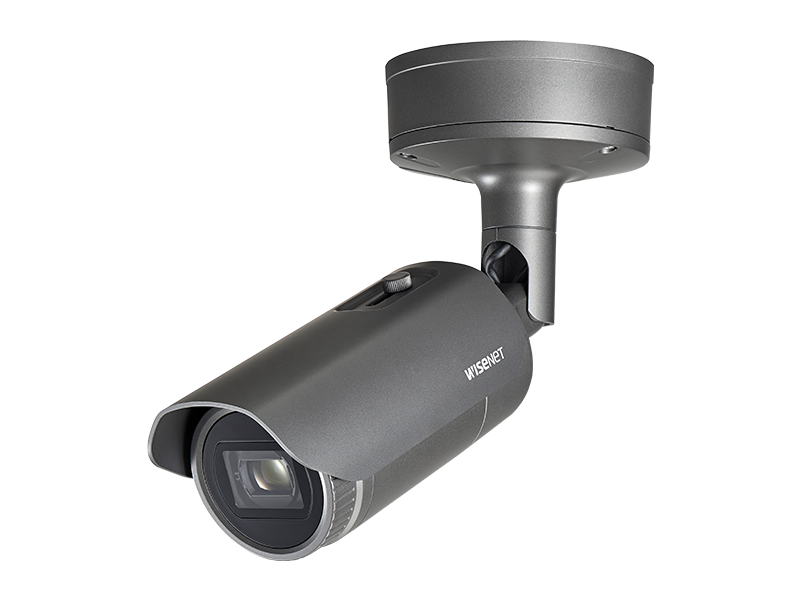

The XNO-6120R/LPR provides a ready-to-go embedded LPR solution. Wisenet X powered by Wisenet 5, Low-Speed network LPR bullet camera for Parking Lots, Drive-thrus, and Entry Gates up to 35MPH. Key camera specifications include 2MP, Full HD(1080p), 12X optical zoom lens (5.2mm ~62.4mm) (54.58º ~ 5.30º), H.265/H.264/MJPEG, WiseStream II compression technology, 150dB WDR, USB port for easy installation, advanced video analytics and sound classification, high powered IR LEDs with readable length for LPR 65 ft, true D/N, dual SD card, hallway view, HLC, Defog detection, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, built-in -40°F heater. Backbox included, -40°C ~ +55°C (-40°F ~ +131°F) temperature rating.



  • Designed for low speed and stop and go applications up to 35 MPG
  • No server needed. The application runs directly on the camera and is licensed and read- to-go.
  • 2 megapixel (1920 x 1080) resolution
  • 12X optical zoom (5.2 ~ 62.4mm) (54.58º ~ 5.30º)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & Night (ICR), WDR (150dB), Defog
  • Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, tampering
  • Motion detection, handover
  • Dual SD/SDHC/SDXC memory slots (Total maximum of 512GB)
  • Hallway view, WiseStream II support
  • High powered IR LEDs with readable length for LPR 65 ft, IP67/IP66, NEMA 4X, IK10


Imaging Device 1/2.8" 2MP CMOS
Effective Pixels 1,945(H) x 1,109(V) 2.16MP
Minimum Illumination Color : 0.03Lux (F1.6), B/W : 0Lux (IR LED on)
Video Out CVBS : 1.0 Vp-p / 75Ω Composite, 720 x 480 for Installation
USB : Micro USB Type B, 1280 x 720, for Installation


Focal Length (Zoom Ratio) 5.2 ~ 62.4mm (Optical 12X)
Maximum Aperture Ratio F1.6(Wide) ~ F3.0(Tele)
Angular Field of View H : 54.58˚(Wide) ~ 5.30˚(Tele) / V : 32.19˚(Wide) ~ 3.00˚(Tele) / D :
61.40˚(Wide) ~ 6.06˚(Tele)
Minimum Object Distance 1.5m (4.92ft)
Focus Control Auto / Manual / One shot AF
Lens / Mount Type DC Auto Iris / Board-in Type


IRViewable Length 70m (229.66ft), maximum plate distance for IR 65ft
Camera Title Off / On (Displayed up to 85 Characters)
- English / Numeric / International / Special Characters
- Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue /
Black / White),
Transparency, Auto scale by Resolution
Day & Night Auto (ICR)/ Color/ B/W / External / Schedule
Backlight Compensation Off / BLC / HLC / WDR
Wide Dynamic Range 150dB
Digital Noise Reduction SSNRV (2D + 3D Noise filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto (Input from fog detection)/ Manual
Motion Detection Off / On (8ea, 8Point polygonal zones), Handoverr
Privacy Masking Off / On (32ea, Rectanglular zones)
- Color : Gray / Green / Red / Blue / Black / White - Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual/Indoor / Outdoor (Included mercury & Sodium)
LDC Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti Flicker(2 ~ 1/12,000sec)
Digital Zoom 24x
Flip / Mirror Off / On, Hallway view : 90˚/270˚
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Alarm input, Motion detection, Video & Audio analytics, Network disconnect
Alarm events File upload via FTP, E-mail, Notification via E-mail, Localstorage (SD/SDHC/
SDXC) or NAS recording at event triggers, External output, DPTZ preset
Audio In Selectable(Mic in/Line in),
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out Line out, Maximum output level: 1Vrms
NDAA Compliant
