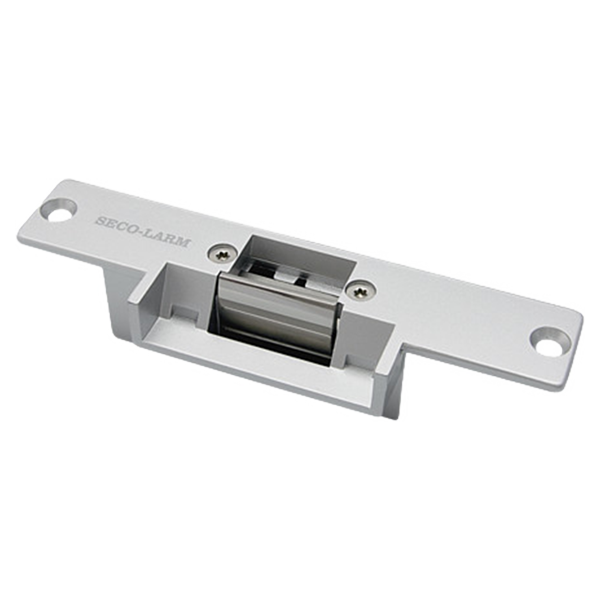

SECO-LARM - SK-990BQ - Electric Door Strikes for Wood Doors, Fail-Secure, 12VDC
Part number:
SK-990BQ
Price:

Fail-Safe Electric Door Strike for wood-framed doors. Door unlocks when power is lost. Indoor use only. 12VDC/VAC.



The SECO-LARM Electric Door Strike can be used to convert cylindrical lock sets into an electronic access-controlled locking system. Combine with an optional digital keypad such as the SECO-LARM SK-1011-SDQ for keyless high-security.



Features:

  • The SECO-LARM Electric Door Strikes convert cylindrical lock sets to an electronic access controlled locking system
  • Can be used on virtually any cylindrical door locking system
  • Use of a digital keypad with the unit assures high security without the need of a key
  • Easily connects to SECO-LARM‘s SK-1011-SDQ  or many other Electronic Keypads
  • Suitable for office-type applications
  • CE approved
  • Baked painted finish
  • Fail-Safe units are perfect for emergency door and escape door installations
Operating Voltage10~14VDC
OperationFail Safe
Circuit TypeN.C
Current Draw200mA
Coil Resistance60Ω
PolarityNone
Weight350g
Name
Description
Size
Downloads
File
Datasheet
0.4mb
