802.3bt PoE++ 95-watt Power over 4-pair UTP Solution
As PLANET GUP-805A-95W adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lightings
With a total power budget of up to 95 watts for different kinds of PoE applications, the GUP-805A-95W provides a quick, safe and higher 802.3bt PoE++ network solution for small businesses and enterprises.
High Performance and Steady Network Communications Guaranteed Despite Distance Extension
The GUP-805A-95W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. The GUP-805A-95W provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications. The available SFP LC fiber interfaces are shown below:
802.3bt PoE++ and DIP Switch for PoE Power Output Mode Options
To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-95W provides one DIP switch for multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, UPOE and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
- 802.3bt PoE++ Power Output Mode
- UPOE Power Output Mode
- Legacy Power Output Mode

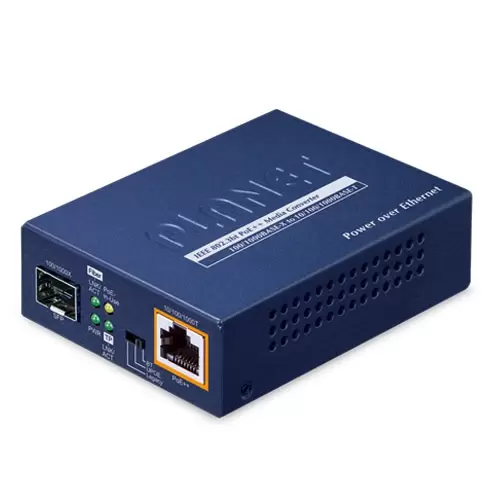

The GUP-805A-95W, IEEE 802.bt PoE++ media converter, uses up to 95W of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and data to each remote PoE compliant powered device.
Features:
- Speed: 100/1000X SFP to 10/100/1000T 802.3bt PoE++
- SFP Port: 100/1000X SFP
- Optical Interface: *SFP module required and sold separately*
- PoE Output: IEEE 802.3bt PoE++
- Max. Power Output: PoE 52-55V DC, 95W
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Interface | |
| Copper Port | 10/100/1000BASE-T Ethernet RJ45 interface |
| Auto-negotiation, auto MDI/MDI-X with PoE injector function | |
| SFP Interface | 100/1000BASE-X SFP interface |
| Fiber Mode | May vary on SFP Module |
| Fiber Port Type (connector) | SFP, LC type |
| Fiber Maximum Distance | May vary on SFP Module |
| Power Over Ethernet | |
| PoE Output | IEEE 802.3af Power over Ethernet PSE |
| IEEE 802.3at Power over Ethernet Plus PSE | |
| IEEE 802.3bt Power over Ethernet Plus Plus PSE | |
| Power Output | PoE 52-55V DC, 95 watts |
| PoE Power Budget | 95 watts |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| End-span: 1/2(-), 3/6(+) | |
| Mid-span: 4/5(+), 7/8(-) | |
| Hardware Specifications | |
| Enclosure | Metal case |
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 144g |

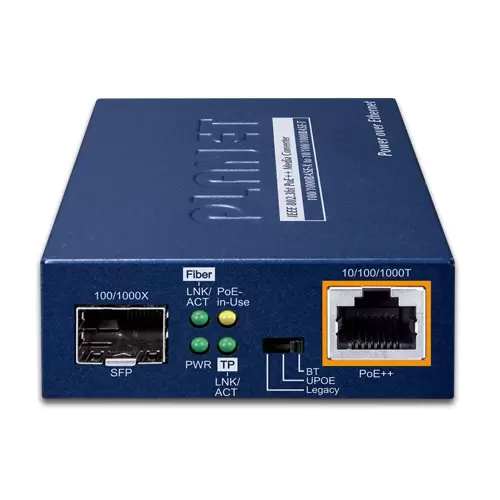

| LED | System: PWR (Green) |
| Fiber 100/1000BASE-X: LNK/ACT(Green) | |
| TP 10/100/1000BASE-T: LNK / ACT(Green) | |
| PoE: Power-in-use (Amber) | |
| DIP Switch | PoE power feeding options (BT/UPOE/Legacy) selection |

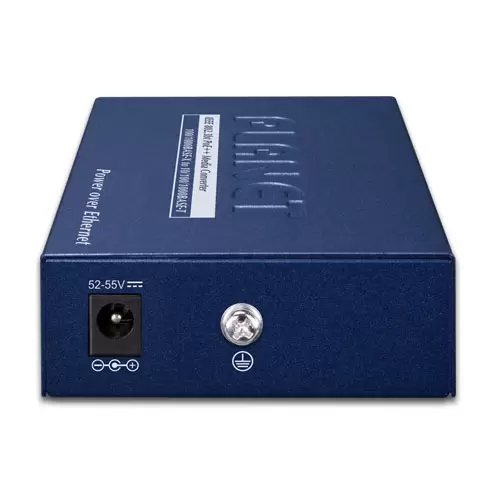

| Power Supply | DC 52V~55V Power Socket, external AC-to-DC adapter |
| Installation | Wall-mount or DIN-rail installation(Optional) |
| Layer 2 Features | |
| Switch Architecture | Store-and-Forward |
| Forwarding Rate | Non-blocking full wire-speed forwarding rate |
| Flow Control | Back pressure for half duplex mode |
| IEEE 802.3x pause frame for full duplex mode | |
| Maximum Frame Size | 9K |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet |
| IEEE 802.3u 100BASE-TX/100BASE-FX | |
| IEEE 802.3ab Gigabit Ethernet over TP | |
| IEEE 802.3z Gigabit Ethernet over Fiber Optic | |
| IEEE 802.3x Flow Control | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3bt Power over Ethernet Plus Plus | |
| Cables | TP：Cat 3/4/5/5e/6 UTP cable |
| Fiber： Multi-mode: 50/125mm or 62.5/125μm optic fiber | |
| Single-mode： 9/125μm optic fiber | |
| Environment | |
| Temperature | Operating: 0 ~ 50 degrees C |
| Storage: -10 ~ 70 degrees C | |
| Humidity | 5% ~ 95% non-condensing |
