1-Port 802.3bt to 1-Port 802.3bt Gigabit PoE++ Extender(95 Watts 802.3bt PoE++ Input, BT/UPOE mode output support via DIP switch, compact size and wall-mountable design)
Long Distance 802.3bt PoE++ and Gigabit Data Extension Solution
PLANET POE-E301 is a simple extender that extends both the Gigabit Ethernet Data and IEEE 802.3bt/802.3at/802.3af Power over Ethernet transmission distance over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m, 300m, 400m and the maximum 400m. The POE-E301 can obtain a maximum of 95-watt PoE power from 802.3bt PoE++ input port and the output port can supply a maximum of 65-watt power, provides a simple solution to achieves more wide-coverage network applications without requiring an external power adapter.
No matter how many PoE supported networking devices such as PoE IP cameras, PoE wireless access points and PoE IP phones are deployed, they are easily installed without the need of having an additional electrical outlet. However, limited by the UTP cabling, only up to 100 meters (328 ft.) of cable is used. Thus, the POE-E301 is designed as the extender to transmit both Gigabit Ethernet data and 802.3bt PoE++ power over another distance of 100m. By daisy-chaining multiple POE-E301s, distance can be tripled or quadrupled to meet your requirements.
With its ability to provide 802.3bt PoE++ and Gigabit Ethernet data extension, the POE-E301 is an ideal networking solution for service providers, campuses and public areas. It enables you to centrally manage the power easily, efficiently and cost-effectively no matter how remote the location is.
Plug and Play, and Easy Cabling Installation
The POE-E301 Gigabit 802.3af/at/bt PoE Extender is quite easy to be installed by the simple plug and play configuration. It is used between a power source equipment (PSE) and a powered device (PD). The POE-E301 injects power to the PD without affecting the data transmission performance. It offers a cost-effective and quick solution to double the standard range of PoE from 100 to 200 meters. The POE-E301 Compact 2-Port 802.3af/at/bt PoE Extender, suitable for use, features 2 1000Mbps auto-negotiation ports, of which the “PoE IN” port functions as PoE (Data and Power) input and the “PoE OUT” port on the other side functions as PoE (Data and Power) output. The “PoE OUT” port is also the power injector to transmit DC voltage via the Cat. 5/5e/6 cable and transfer data and power simultaneously between the PSE and a PD.
Features:
- Network Connector
- In: 1 x 10/100/1000TX
- Out: 1 x 10/100/1000TX
- Type: End-span/Mid-span
- Standard: 802.3bt PoE++ (Type 4)
- PoE Power:
- In: 50-56V DC, max. 95W
- Out: 55V DC, max. 65W
- Operating Temperature: 0°C to 50°C
- TAA Compliant
| Hardware Specifications | |

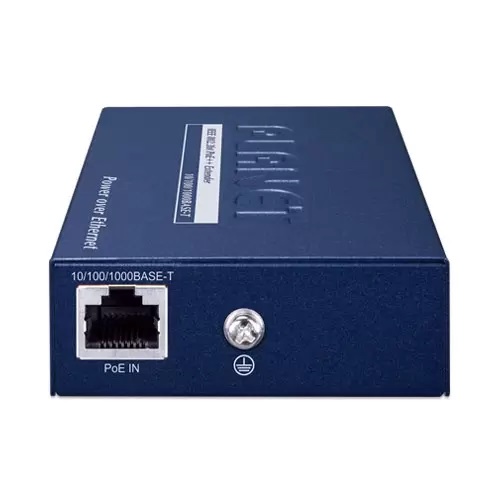

| PoE IN | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt/at/af PoE “Data + DC＂in |
| auto MDI/MDI-X, auto-negotiation RJ45 connector | |

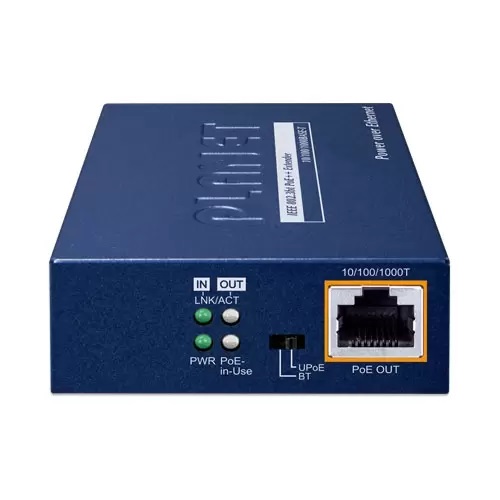

| PoE OUT | 1 x 10/100/1000BASE-T Ethernet with IEEE 802.3bt/at/af PoE ＂Data + DC” out |
| auto MDI/MDI-X, auto-negotiation RJ45 connector | |
| DIP Switch | PoE power feeding options (BT/UPOE) selection |
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 258g |
| Power Requirements | IEEE 802.3bt PoE++ compliant with voltage within 52V-56V DC |
| IEEE 802.3af PoE compliant with voltage within 44V-56V DC | |
| Power Consumption | 2.4 watts (system maximum) /PoE Output at maximum 60 watts |
| Enclosure | Metal |
| Installation | Wall or DIN-rail mounting |
| Protection | ESD (Ethernet): 2KV |
| Surge (EFT for power) : 2KV | |
| LED Indicators | 1 x PWR (Green) |
| 1 x PoE IN Data (Green) | |
| 1 x PoE OUT Data (Green) | |
| 1 x PoE Out : PoE-in-use (Green: BT PD; Amber UPOE PD) | |
| Network Cable | 10BASE-T: 4-Pair UTP Cat. 5 up to 100m (328ft) |
| 100BASE-TX: 4-Pair UTP Cat. 5 up to 100m (328ft) | |
| 1000BASE-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft) | |
| EIA/TIA- 568 100-ohm STP (100m, 328ft) | |
| Switching Specifications | |
| Data Rate | 10/100/1000Mbps |
| Switch Architecture | Store-and-Forward |
| Switch Throughput | 10Mbps:14880pps@64Bytes |
| 100Mbps:148810pps@64Bytes | |
| 1000Mbps:1488000pps@64Bytes | |
| Maximum Frame Size | 9K bytes |
| Flow Control | Back pressure for half duplex |
| IEEE 802.3x pause frame for full duplex | |
| Power over Ethernet | |
| PoE Standard | ＂PoE In” Port |
| IEEE 802.3bt Power over Ethernet Plus end-span/mid-span PD class 4 PDPer “PoE Out” Port | |
| IEEE 802.3bt Power over Ethernet Plus end-span PSE | |
| Backward compatible with IEEE 802.3af/at Power over Ethernet standard | |
| PoE Power Supply Type | End-span + Mid-span |
| PoE Power | “PoE In” Port |
| 50-56V DC, max. 95 watts PoE input“PoE Out” Port | |
| 55V DC, max. 65 watts PoE budget | |
| Power Pin Assignment | “PoE In” Port |
| 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-)“PoE Out” Port | |
| 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) | |
| Maximum Distance | 400 meters with daisy-chain installation of 3 units |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10BASE-T Ethernet |
| IEEE 802.3u 100BASE-TX Fast Ethernet | |
| IEEE 802.3ab 1000BASE-T Gigabit Ethernet | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| IEEE 802.3bt Power over Ethernet Plus Plus | |
| IEEE 802.3x Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -40 ~ 85 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
