1-Port Long Reach PoE
Coaxial Extender Ideal for Harsh Environment
The LRP-101C-KIT is a Single-port PoE over Coaxial Extender Kit featuring long range data and power transmission for distances of up to 1,000m (3,280ft.) over coaxial cables. The LRP-101C-KIT operates in extreme temperature conditions between -20 to 70°C. The unit eliminates the need for additional power outlet sources, simplifying the deployment of PoE devices such as IP surveillance cameras and Wireless Access Points (WAPs).
Long-Distance PoE Solution
The LRP-101C-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can be paired to operate anywhere in your network infrastructure. It contains:
- LRP-101CH: 1-Port 10/100TX PoE PD + 1-Port Coax Long Reach PoE Injector

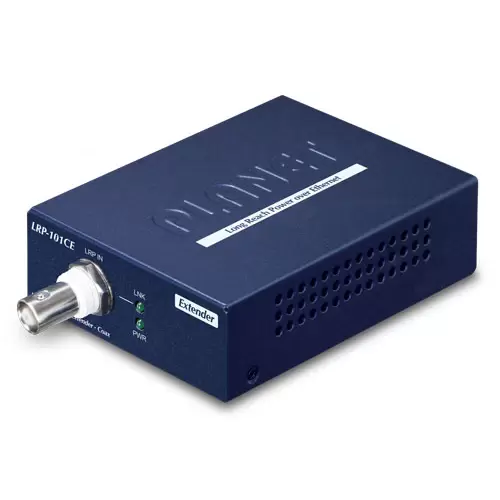

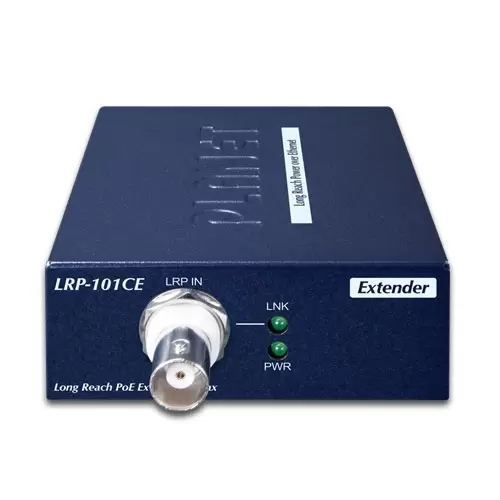

- LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender
The LRP-101CH transmits data and power via a coaxial cable to the LRP-101CE, which can be located as far as 1,000m away. It will then deliver the data and a maximum of up to 25 watts of power to a PoE PD over an Ethernet cable. Both these units are housed in a compact, metal encasement that can be wall-mounted. The LRP-101C-KIT can extend the reach of a network up to 1,000 meters (3,280ft) via a 75 ohm coaxial cable to deliver stable, high-quality video transmission.
Plug-n-play Installation
The LRP-101C-Kit offers a plug-and-play installation and does not require additional configuration. Its diagnostic LEDs on the front panel show the operating status of the individual port and the connected systems.
The Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.
Features:
- Copper: 10/100BASE-TX RJ45, Auto-negotiation / auto-MDI/MDI-X
- PoE Standard: IEEE 802.3at/af PoE
- PoE Input: Mid-span and End-span PSE Input range: 48 ~ 56V DC
- PoE Output: 48~56V DC, 600mA max.
- PoE Budget: Up to 25 watts
- PoE Mode: End-span, RJ45 Pin 1/2 (+), 3/6(-) [PSE]
- Connectivity: 1 x BNC female connector Long Reach PoE over coaxial
- Maximum Distance:
- Max. 200m with PoE+ output (656ft.)
- Max. 600m with PoE output (1,968ft.)
- Max. 1200m without PoE output (3,937ft.)
- Cabling:
- Coaxial cable: 75 ohm
- RG-6/U cable, less than 12Ω/1,000ft.
- RG-59/U cable, less than 30Ω/1,000ft.
- TAA Compliant
| Hardware Specifications | |||||||||||||||||||||||||||
| Ethernet Interface | LRP-101CH – Copper: 10/100BASE-TX RJ45, auto-negotiation / auto-MDI/MDI-X – Power over Ethernet Standard: IEEE 802.3at/af PoE PD (Powered Device) – PoE Input: Supports both Mid-span and End-span PSE Input Range: 48~56V DC – Data Rate: 100/100Mbps – Cabling: Cat5e or above – Maximum Distance: 100 meters – Maximum Frame Size: 1522 bytesLRP-101CE – Copper: 10/100BASE-TX RJ45, Auto-negotiation / auto-MDI/MDI-X – Power over Ethernet Standard: IEEE 802.3at/af PoE PSE (Power Source Equipment) – PoE Output: 56V DC, 600mA max. – PoE Budget: Up to 25 watts – PoE Mode: End-span, RJ45 Pin 1/2(+), 3/6(-) – Data Rate: 100/100Mbps – Cabling: Cat5e or above – Maximum Distance: 100 meters – Maximum Frame Size: 1522 bytes | ||||||||||||||||||||||||||
| Long Reach PoE Interface | LRP-101CH
| ||||||||||||||||||||||||||
| LED Indicators | LRP-101CH 4 x LEDs – PWR – LRP LNK – PoE IN – LNK/ACTLRP-101CE 4 x LEDs – PWR – LRP LNK – PoE-in-use – LNK/ACT | ||||||||||||||||||||||||||
| ESD Protection | 4KV DC | ||||||||||||||||||||||||||
| EFT Protection | LRP-101CH – 2KVLRP-101CE – | ||||||||||||||||||||||||||
| Enclosure | Metal case | ||||||||||||||||||||||||||
| Installation | Wall mount or DIN rail with optional kit | ||||||||||||||||||||||||||
| Dimensions (W x D x H) | 94 x 70 x 26 mm | ||||||||||||||||||||||||||
| Weight | LRP-101CH – 200gLRP-101CE – 375g | ||||||||||||||||||||||||||
| Power Requirements | LRP-101CH – RJ45 PoE Input: 802.3at/af 48~56V DC – DC Input: 48~56V DCLRP-101CE – BNC Power over Coaxial Input: 44~56V DC | ||||||||||||||||||||||||||
| Standards Conformance | |||||||||||||||||||||||||||
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3af Power over Ethernet (802.3at Type 1) IEEE 802.3at Power over Ethernet (802.3at Type 2) | ||||||||||||||||||||||||||
| Regulation Compliance | FCC Part 15 Class A, CE | ||||||||||||||||||||||||||
| Environment | |||||||||||||||||||||||||||
| Temperature | Operating: -20~70 degrees C Storage: -40~75 degrees C | ||||||||||||||||||||||||||
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) | ||||||||||||||||||||||||||
| Note | |||||||||||||||||||||||||||
| Note | *1.Upload: LRP-101CE to LRP-101CH,data stream. Download: LRP-101CH to LRP-101CE,data stream. 2.As there are various resistance values in the category of RG-59/U or RG-6/U cable, the actual data rate will vary on the quality of the copper wire and environment factors. **Depending on what the DC/PoE Power Input and the length of coaxial cable are. | ||||||||||||||||||||||||||
