100Base-FX Media Converter

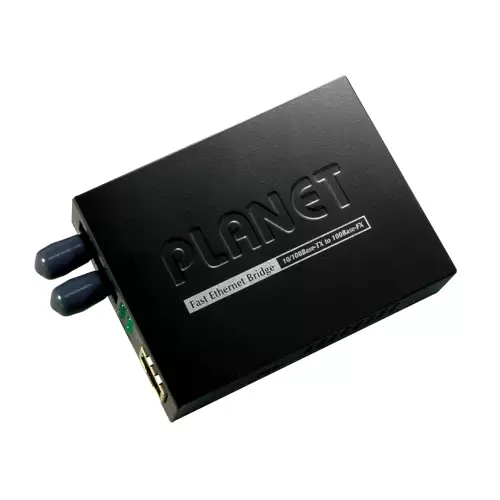

The FT-801 is a Fast Ethernet Bridge 100BASE-FX fiber to 10/100BASE-TX shielded twisted pair (STP) converter. It supports both half-duplex and full-duplex operations and a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation in fiber-optic interface. The fiber port of the converter operates at 1310 nm and uses ST connectors. The Multi-mode model supports distances up to 2km.

The FT-80x series includes LFP (Link Fault Pass-through function) (LLCF/LLR) and DIP switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide an efficient solution to monitoring the net. The DIP switch provides the disabling or enabling of the LFP function.

LLCF (Link Loss Carry Forward) means when a device is connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmit. LLR (Link Loss Return) is when a device is connected to the converter and the fiber line loses the link, the converter’s fiber will disconnect the transmit link. Both can immediately alarm administrators the problem of the link media and provide an efficient solution to monitoring the net. The FT-801 is a quick Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter that works for both full and half duplex operations.

Features:

• Speed: 10/100TX to 10/100 TP/SFP
• Mode: Multi-Mode
• Wavelength: 1310nm
• Distance: 2km
• Fiber Connection: ST
• TAA Compliant
