Media Converter

Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ45 port and highly stable Gigabit fiber performance, PLANET GT-802, GT-802S, GT-802S40, GT-806S60, GT-805A and GT-806A/B media converters support conversion between 10/100/1000BASE-T and 1000BASE-SX/LX networks. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.

Distance Extension with High Performance and Steady Network Communications

PLANET GT-80x gigabit media converter series extends communication distance with highly Gigabit performance via fiber optic cable. The GT-80x series provides media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX interfaces for various fiber optic applications. The available fiber interfaces are shown below:

Enhanced Smart Management Features

The GT-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Passthrough function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR). LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the network. The DIP switch can disable or enable the LFP function.

• LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission.
• LLR (Link Loss Return) means when a device connected to the converter and the fiber line loses the link, the converter’s fiber will disconnect the link of transmission.

Easy Installation

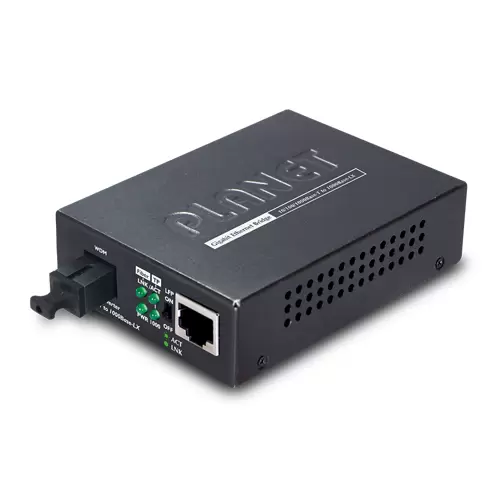

The GT-80x series allows two types of the segment to connect easily. The GT-80x series can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch 7-/15-slot media converter chassis (MC-700/MC-1500/ MC-1500R/MC-1500R48). These media chassis can assist in producing the power for the GT-80x to maintain the fiber-optic network at one location. As the Gigabit Media Converter fully complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T and IEEE 802.3z 1000BASE-LX/SX, the Gigabit media conversion installation is quite quick and easy with its Plug and Play feature. The GT-80x also supports flow control and back pressure in half-duplex mode to eliminate packet loss. The GT-806A40 is a single mode 40km media converter.

Features:

• Speed: 10/100/1000T to 1000LX
• Mode: Single Mode WDM
• Wavelength: TX: 1310nm RX: 1550nm
• Distance: 40km
• Fiber Connection: SC
• TAA Compliant
