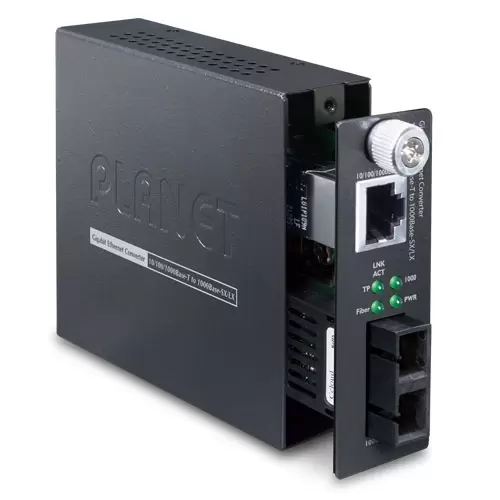

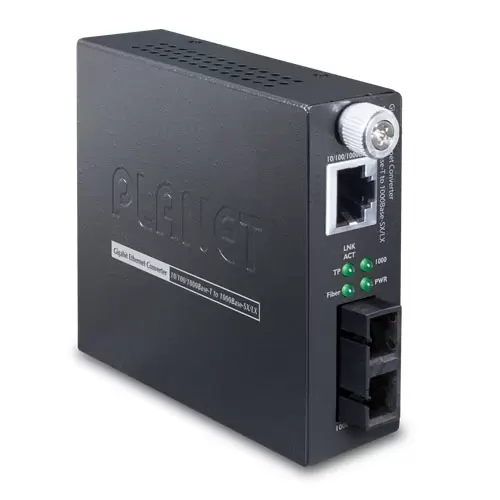

Smart Media Converter
The GST-802 showcases plug and play technology along with smart features. The smart Gigabit media converter has the ability to extend the distance with stable Gigabit performance. The unit supports media conversion between 10/100/1000Base-T and 1000Base-SX interfaces with multi-mode LC/SC connectors from 220m / 550m; single-mode LC/SC connectors from 10 / 20 / 30 / 40 / 50 / 70 /120km, and single fiber connectors WDM,15 / 60Km for a selection of fiber optic applications.
The GST-802 utilizes the Auto MDI/MDI-X on the TP port and the DIP switch to configure available smart functions such as auto-negotiation, force for fiber interface and Link Pass Through function (LLCF/LLR). The Link Loss Carry Forward (LLCF) function operates with the Link Loss Return (LLR) function in order to detect network connections. In addition, the LLR function notifies administrators issues with the media link issue and offers solution for users to monitor the entire network.
Simple Installation
The GST-802 permits the connection of two segment types. The unit can be utilized as an independent unit when powered by a DC adapter. Managing the converter requires Planet’s MC-1610MR/MC-1610MR48, a 19-inch Web Smart 16-Slots Media converter chassis from PlanetechUSA.com to remotely monitor its status through the management-interface of the chassis. When operating with the chassis, the GST-802 has the ability to be monitored through the local RS-232 console and remote web interface. The GST-802 is a smart media converter that showcases plug and play technology along with smart features.
Features:
- Speed: 10/100/1000TX to 1000SX
- Mode: Multi-Mode
- Wavelength: 850nm
- Distance: 220/550m
- Fiber Connection: SC
- TAA Compliant
| Hardware Specifications | |
| Standards | IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX IEEE 802.3ah OAM |
| Ports | 1 x 10/100/1000Base-T port 1 x 1000Base-SX/LX port |
| Copper Interface | RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
| Optic Interface | GST-802 / GST-802S: SC GST-805A: SFP GST-806A15 / GST-806B15 / GST-806A60 / GST-806B60: WDM |
| Optic Wavelength | GST-802: 850nm GST-802S: 1310nm GST-805A: N/A GST-806A15: TX:1310nm / RX:1550nm GST-806B15: TX:1550nm / RX:1310nm GST-806A60: TX:1310nm / RX:1550nm GST-806B60: TX:1550nm / RX:1310nm |
| Launch Power(dBm) Max. | GST-802: -4 dBm GST-802S: -3 dBm GST-805A: N/A GST-806A15: -3 dBm GST-806B15: +5 dBm GST-806A60: -3 dBm GST-806B60: +4 dBm |
| Launch Power(dBm) Min. | GST-802: -9.5 dBm GST-802S: -9.5dBm GST-805A: N/A GST-806A15: -9 dBm GST-806B15: 0 dBm GST-806A60: -9 dBm GST-806B60: -1 dBm |
| Receive Sensitivity | GST-802: -13.5 dBm GST-802S: -14.4 dBm GST-805A: N/A GST-806A15: -21 dBm GST-806B15: -25 dBm GST-806A60: -21 dBm GST-806B60: -25 dBm |
| Maximum Input power | GST-802: -18 dBm GST-802S: -20 dBm GST-805A: N/A GST-806A15: -3 dBm GST-806B15: -3 dBm GST-806A60: -2 dBm GST-806B60: -2 dBm |
| Speed Twisted-pair | 10/20Mbps for Half / Full-Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full-Duplex |
| Speed Fiber-optic | 2000Mbps for Full-Duplex |
| Cable Twisted-pair | 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m 100Base-TX: 2-pair UTP Cat. 5, up to 100m 1000Base-T: 4-pair STP Cat 5 up to 100m |
| Cable Fiber-optic Cable | – 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. – 9/125μm single-mode cable, provides long distance for 10/20/30/40/50/70/120km (vary on fiber transceiver or SFP module) |

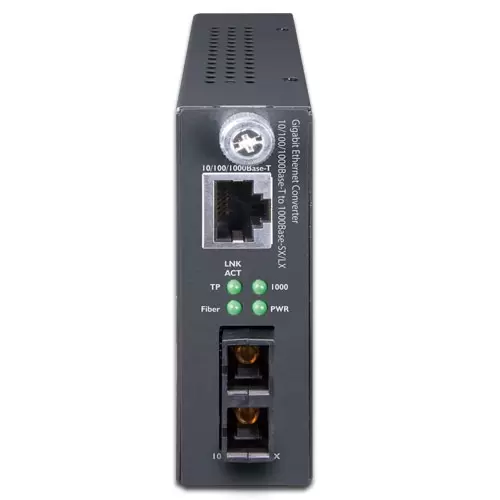

| LED Indicator | – PWR (Green) – TP: 1000, LINK/ACT – Fiber: LINK/ACT |
| DIP Switch | Fiber (Auto-negotiation / Manual), LFP (Disable / Enable) |
| Power Consumption | 3.1 Watts / 10BTU (maximum) |
| OAM | TS-1000, IEEE 802.3ah terminal |
| Jumbo Frame size | 9K |

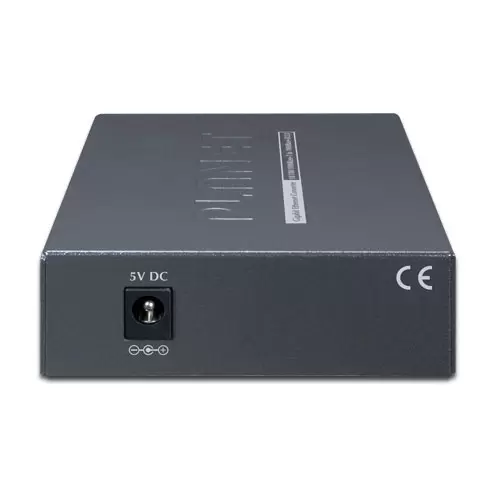

| Power Input | DC 5V / 2A |
| Dimensions (W x D x H) | 81 x 94 x 26 mm |
| Operating Environment | Temperature: 0~50 degrees C; Humidity: 5~90% non-condensing |
| Storage Environment | Temperature: -40~70 degrees C; Humidity: 5~90% non-condensing |
| Emissions | FCC Class A, CE Class A |
