Smart Media Converter
Providing the flexibility of 10/100/1000Mbps Ethernet Media via RJ45 port and highly stable Gigabit fiber performance, PLANET GST-802, GST-802S, GST-805A and GT-806A/B media converters support conversion between 10/100/1000BASE-T and 1000BASE-SX/LX networks. There are SC/SFP/WDM connectors with single-mode or multi-mode media as required. The Ethernet signal allows three types of segments to connect easily, efficiently and inexpensively.
Distance Extension with High Performance and Steady Network Communications
PLANET GST-80x gigabit media converter series extends communication distance with highly Gigabit performance via fiber optic cable. The GST-80x series provides media conversion between 10/100/1000BASE-T and 1000BASE-SX/LX interfaces for various fiber optic applications.
Enhanced Smart Management Features
The GST-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the available smart functions including the auto-negotiation/force for fiber interface and Link Fault Passthrough function (LFP). The LFP function includes the Link Loss Carry Forward (LLCF)/Link Loss Return (LLR).
- LLCF means when a device connected to the converter and the TP line loses the link, the converter’s fiber will disconnect the link of transmission.
- LLR (Link Loss Return) means when a device connected to the converter and the fiber line loses the link, the converter’s fiber will disconnect the link of transmission.
Both can immediately alarm administrators the media link issue and provide efficient solution to monitoring the network.
Easy Installation

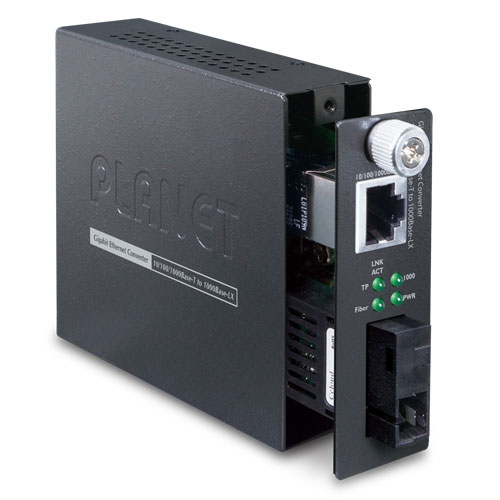

The GST-80x series allows two types of the segment to connect easily. The GST-80x series Smart Media Converter can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch managed 16-slot media converter chassis (MC-1610MR/MC-1610MR48). The managed 16-slot media converter chassis can assist in producing the power for the GST-80x to maintain the fiber-optic network at one location, when working with the Web Smart / Managed media converter chassis, the GST-80x is able to be managed and its status can be monitored through the local RS-232 to RJ45 console and remote web interface. The GST-806A15 is a 10/100/1000Base-T to 1000LX Bi-Directional Smart Media Converter.
Features:
- Speed: 10/100/1000TX to 1000FX
- Mode: Single Mode WDM
- Wavelength: TX: 1310nm RX: 1550nm
- Distance: 20km
- Fiber Connection: SC
- TAA Compliant
| Hardware Specifications | |
| Standards | IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX IEEE 802.3ah OAM |
| Ports | 1 x 10/100/1000Base-T port 1 x 1000Base-SX/LX port |
| Copper Interface | RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
| Optic Interface | GST-802 / GST-802S: SC GST-805A: SFP GST-806A15 / GST-806B15 / GST-806A60 / GST-806B60: WDM |
| Optic Wavelength | GST-802: 850nm GST-802S: 1310nm GST-805A: N/A GST-806A15: TX:1310nm / RX:1550nm GST-806B15: TX:1550nm / RX:1310nm GST-806A60: TX:1310nm / RX:1550nm GST-806B60: TX:1550nm / RX:1310nm |
| Launch Power(dBm) Max. | GST-802: -4 dBm GST-802S: -3 dBm GST-805A: N/A GST-806A15: -3 dBm GST-806B15: +5 dBm GST-806A60: -3 dBm GST-806B60: +4 dBm |
| Launch Power(dBm) Min. | GST-802: -9.5 dBm GST-802S: -9.5dBm GST-805A: N/A GST-806A15: -9 dBm GST-806B15: 0 dBm GST-806A60: -9 dBm GST-806B60: -1 dBm |
| Receive Sensitivity | GST-802: -13.5 dBm GST-802S: -14.4 dBm GST-805A: N/A GST-806A15: -21 dBm GST-806B15: -25 dBm GST-806A60: -21 dBm GST-806B60: -25 dBm |
| Maximum Input power | GST-802: -18 dBm GST-802S: -20 dBm GST-805A: N/A GST-806A15: -3 dBm GST-806B15: -3 dBm GST-806A60: -2 dBm GST-806B60: -2 dBm |
| Speed Twisted-pair | 10/20Mbps for Half / Full-Duplex 100/200Mbps for Half / Full Duplex 2000Mbps for Full-Duplex |
| Speed Fiber-optic | 2000Mbps for Full-Duplex |
| Cable Twisted-pair | 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m 100Base-TX: 2-pair UTP Cat. 5, up to 100m 1000Base-T: 4-pair STP Cat 5 up to 100m |
| Cable Fiber-optic Cable | – 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. – 9/125μm single-mode cable, provides long distance for 10/20/30/40/50/70/120km (vary on fiber transceiver or SFP module) |

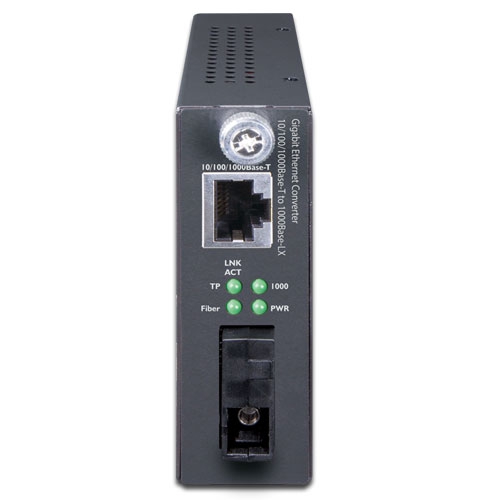

| LED Indicator | – PWR (Green) – TP: 1000, LINK/ACT – Fiber: LINK/ACT |
| DIP Switch | Fiber (Auto-negotiation / Manual), LFP (Disable / Enable) |
| Power Consumption | 3.1 Watts / 10BTU (maximum) |
| OAM | TS-1000, IEEE 802.3ah terminal |
| Jumbo Frame size | 9K |

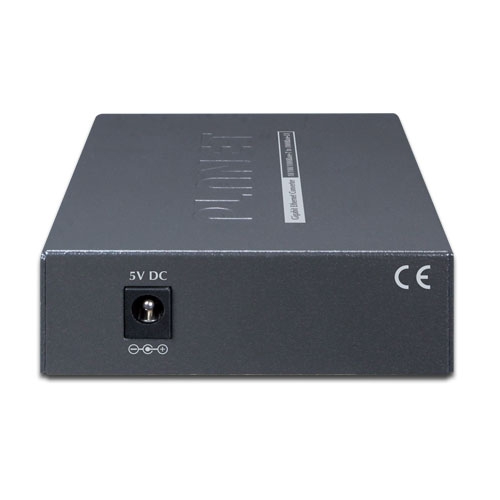

| Power Input | DC 5V / 2A |
| Dimensions (W x D x H) | 81 x 94 x 26 mm |
| Operating Environment | Temperature: 0~50 degrees C; Humidity: 5~90% non-condensing |
| Storage Environment | Temperature: -40~70 degrees C; Humidity: 5~90% non-condensing |
| Emissions | FCC Class A, CE Class A |
