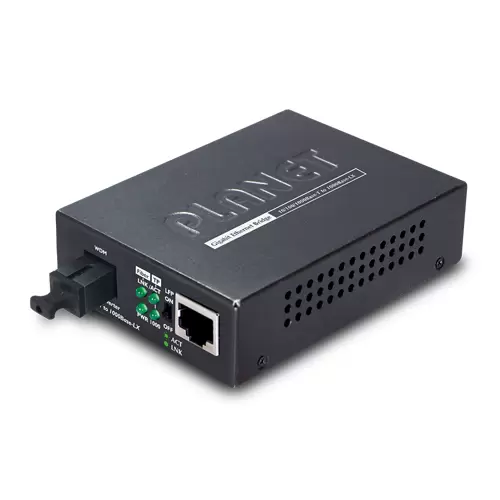

Bi-directional Media Converter
The GT-806A features 10/100/1000Base-T to 1000Base-LX (WDM) Media Conversion (TX:1310nm~60km).
Enhanced Smart Management Features
The GT-806A60 offers Auto MDI/MDI-X on its TP port and the DIP switch to configure the Link Fault Pass Through function (LFP). The unit’s DIP Switch can disable or enable the LFP function.
Network administrators have the ability to manage the GT-806A60 through OAM TS-1000 terminal features including remote failure indication, loop back test, port status, performance monitoring and troubleshooting.
Simple Installation
The GT-806A60 can operate as an independent unit or can be inserted in a media converter chassis (models MC-700, MC-1500, MC-1500R or MC-1500R48. A media chassis can provide power for the GT-806A60 to keep the fiber-optic network at a central location. The unit complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX/SX.
Features:
- Speed: 10/100/1000TX to 1000SX/LX
- Mode: Single Mode WDM
- Wavelength: TX: 1310nm RX: 1550nm
- Distance: 60km
- Fiber Connection: SC
- TAA Compliant
| Hardware Specifications | |
| Hardware Version | 3 |
| Standards | IEEE 802.3, 10Base-T IEEE 802.3u, 100Base-TX IEEE 802.3ab, 1000Base-T IEEE 802.3z, 1000Base-SX/LX |
| Ports | 1 x 10/100/1000Base-T port, 1 x 1000Base-SX/LX port |
| Copper Interface | RJ-45 port (Auto-MDI/MDI-X) Twisted Pair |
| Optic Interface | GT-802/GT-802S: SC GT-805A: SFP GT-806A15/GT-806B15/GT-806A60/GT-806B60: WDM |
| Fiber Maximum Distance | GT-802: 220 / 550m GT-802S: 10km GT-805A: N/A GT-806A15: 15km GT-806B15: 15km GT-806A60: 60km GT-806B60: 60km |
| Optic Wavelength | GT-802: 850nm GT-802S: 1310nm GT-805A: N/A GT-806A15: TX:1310nm RX:1550nm GT-806B15: TX:1550nm RX:1310nm GT-806A60: TX:1310nm RX:1550nm GT-806B60: TX:1550nm RX:1310nm |
| Max. Optical Launch Power | GT-802: -4dBm GT-802S: -3dBm GT-805A: N/A GT-806A15: -3dBm GT-806B15: -3dBm GT-806A60: +5dBm GT-806B60: +4dBm |
| Min. Optical Launch Power | GT-802: -9.5dBm GT-802S: -9.5dBm GT-805A: N/A GT-806A15: -9dBm GT-806B15: -9dBm GT-806A60: 0dBm GT-806B60: -1dBm |
| Max. Input Power | GT-802: N/A GT-802S: -3 GT-805A: N/A GT-806A15: -3 GT-806B15: -3 GT-806A60: -2 GT-806B60: -2 |
| Min. Input Power | GT-802: -18 GT-802S: -20 GT-805A: N/A GT-806A15: -21 GT-806B15: -21 GT-806A60: -25 GT-806B60: -25 |
| Optical Link Budget | GT-802: 3dB(62.5/125μm) 4dB(50/125μm) GT-802S: 4.9dB GT-805A: N/A GT-806A15: 12dB GT-806B15: 12dB GT-806A60: 25dB GT-806B60: 24dB |
| Speed | Twisted-pair: 10/20Mbps for half/full-duplex 100/200Mbps for half/full duplex 2000Mbps for full-duplex Fiber-optic: 2000Mbps for full-duplex |
| Cable | Twisted-pair 10Base-T: 2-pair UTP Cat. 3,4,5, up to 100m 100Base-TX: 2-pair UTP Cat. 5, up to 100m 1000Base-T: 4-pair STP Cat 5 up to 100m Fiber-optic Cable 50/125μm or 62.5/125μm multi-mode fiber cable, up to 220/550m. 9/125μm single-mode cable, providing long distance for 10/15/20/30/40/50/60/70/120km (vary on fiber transceiver or SFP module) |
| LED Indicator | PWR TP LINK/ACT, 1000 Fiber LINK/ACT |
| DIP Switch | LFP function (Disable / Enable) setting |
| OAM | TS-1000 and IEEE 802.3ah Terminal mode supported |
| Jumbo Packet Size | 9K |
| Power Consumption | 4.6 watts / 15 BTU (maximum) |
| Power Input | DC 5V / 2A |
| Dimensions (W x D x H) | 26 x 70 x 97 mm |
| Weight | 0.2kg |
| Operating Environment | Operating temperature: 0 to 50 degrees C; Humidity: 5~95% non-condensing |
| Storage Environment | storage temperature: -10 to 70 degrees C; Humidity: 5~95% non-condensing |
| Emissions | FCC Class A, CE Class A |
