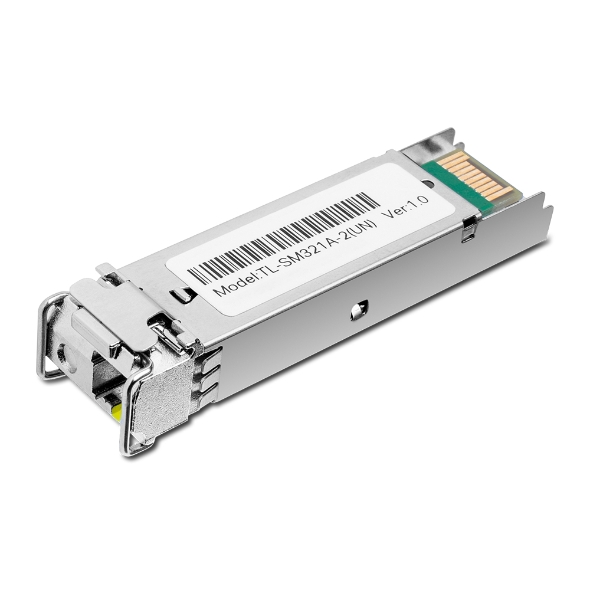

TP-Link - TL-SM321A-2 - 1000BASE-BX WDM BI-DIRECTIONAL PERP SFP MODULE
Part number:
TL-SM321A-2
Price:
1000Base-BX WDM Bi-Directional SFP Module
Features:
- Designed for on-site gigabit fiber communication
- Up to 2 km transmission distance with 9/125 μm SMF (Single-Mode Fiber)

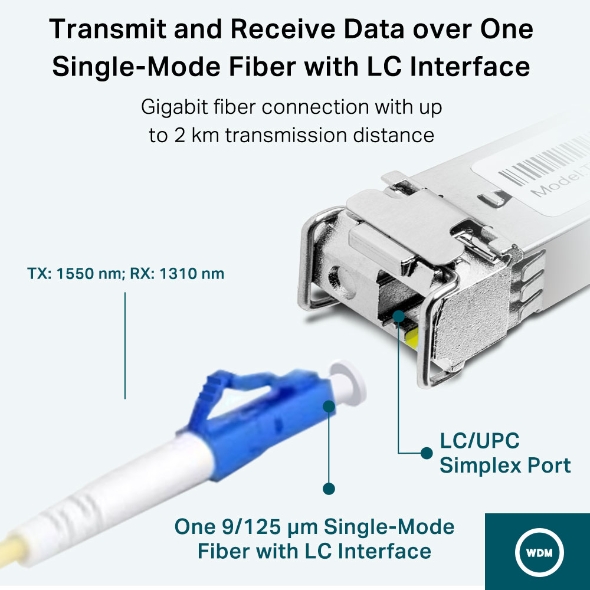

- Bidirectional WDM communication on a single fiber
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Supports Digital Diagnostic Monitoring (DDM)
- Hot-swappable module design
- Work with TL-SM321B-2 as a pair
| HARDWARE FEATURES | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3z, TCP/IP |
| Wave Length | TX: 1550 nm |
| RX: 1310 nm | |
| Power Supply | 3.3 V |
| Safety & Emission | FCC, CE |
| Cabel | Single-Mode Fiber |
| Fiber Type | 9/125 μm Single-Mode |
| Max. Cable Length | 2 KM |
| Data Rate | 1.25 Gbps |
| Port Type | LC Simplex |
| Environment | Operating Temperature: 0–70 °C (32–158 °F) |
| Storage Temperature: -40–85 °C ( -40–185 °F) | |
| Operating Humidity: 10–90% RH, Non-Condensing | |
| Storage Humidity: 5–90% RH, Non-Condensing | |
| Package Contents | • SFP Module TL-SM321A-2 |
| • Installation Guide |
