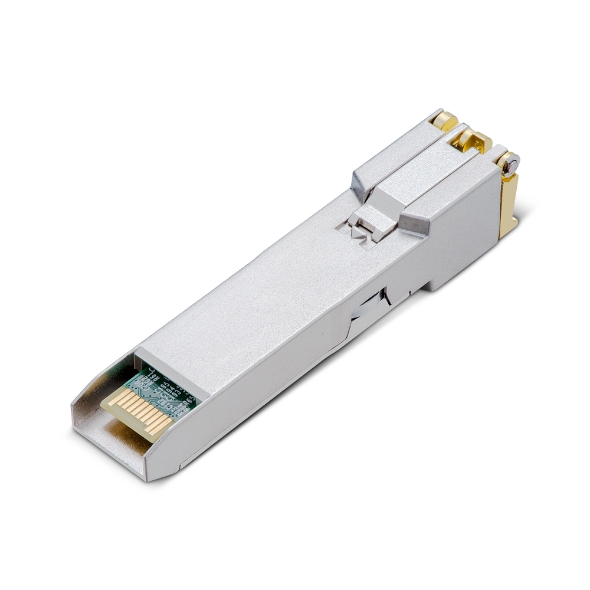

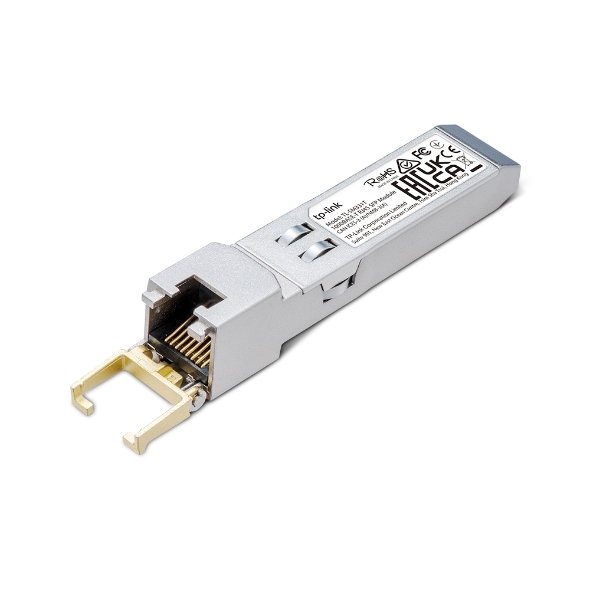

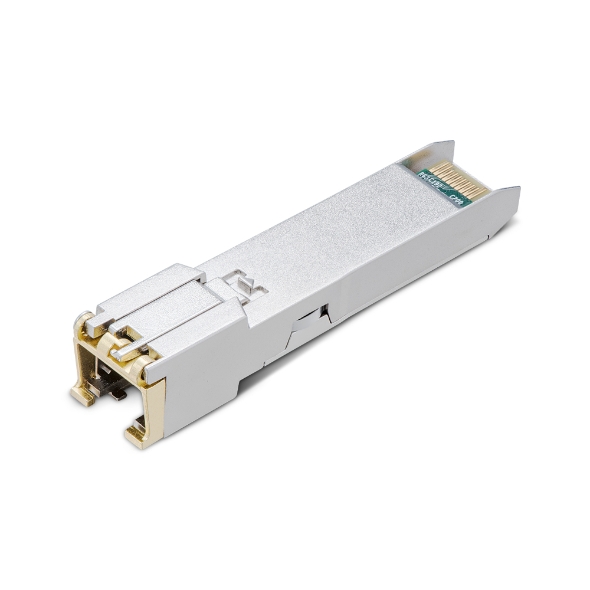

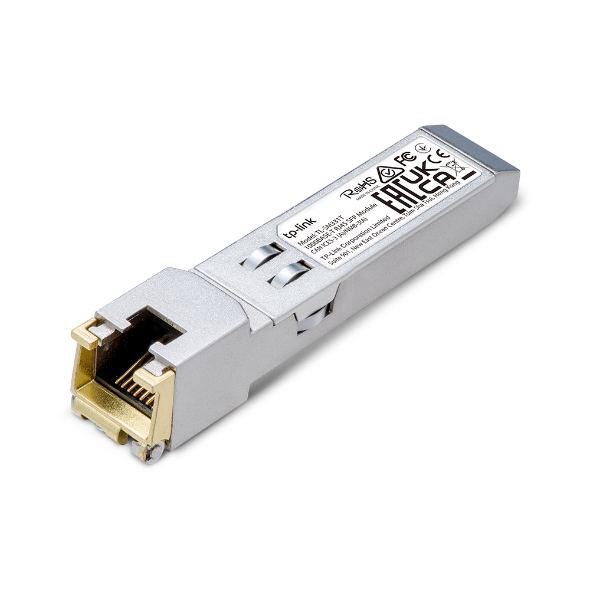

TP-Link - TL-SM331T - 1000BT RJ45 SFP MODULE PERP
Part number:
TL-SM331T
Price:
1000BASE-T RJ45 SFP Module
Features:
- Support 1000BASE-T Operation in Host Systems
- Support TX Disable function
- For 100m Reach Over UTP Cat 5e or above Cable
- Hot-Pluggable SFP Footprint Features
- Commercial Product Operating Temperature Range: 0-70°C
- Compliant with IEEE Std 802.3-2002
- Fully Metallic Enclosure for Low EMI
- Low Power Dissipation (0.5 W Typical, 0.8 W Max)
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | • 1000BASE-T RJ45 SFP Module TL-SM331T • Installation Guide |
| HARDWARE FEATURES | |
|---|---|
| Hot Swappable | Yes |
| TRANSCEIVER | |
|---|---|
| Standards and Protocols | IEEE 802.3-2002 |
| Power Supply | 3.3V |
| Max. Cable Length | 100m (Cat 5e or above) |
| Data Rate | 1.25 Gbps |
| Port Type | 1× 1000 Mbps RJ45 Port |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–85 ℃ (-40–185 ℉) |
Name
Description
Size
Downloads
File
Datasheet
0.2mb
File
Quick Installation Guide
2mb
