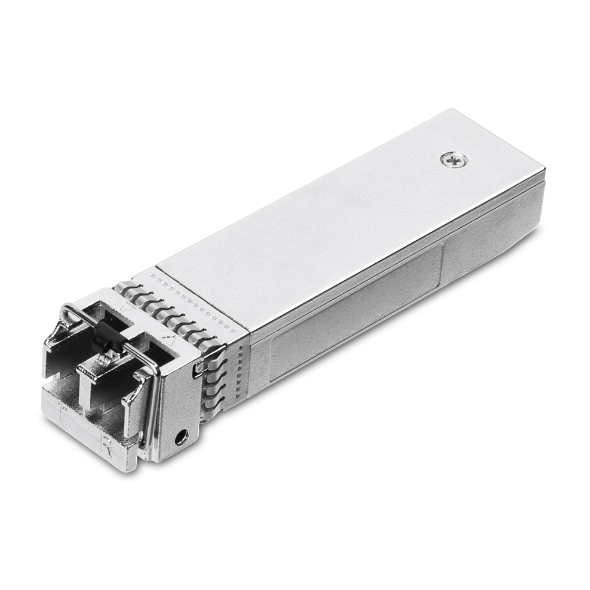

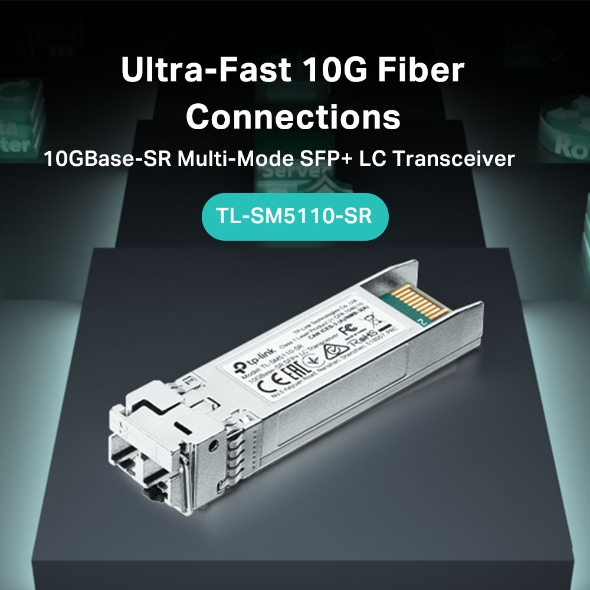

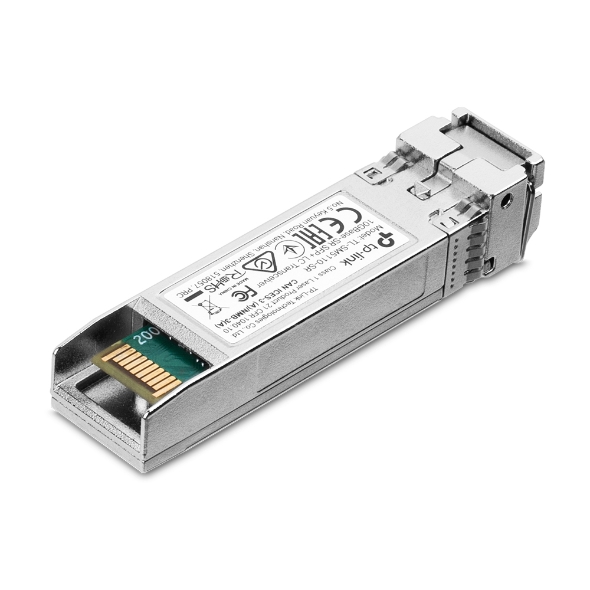

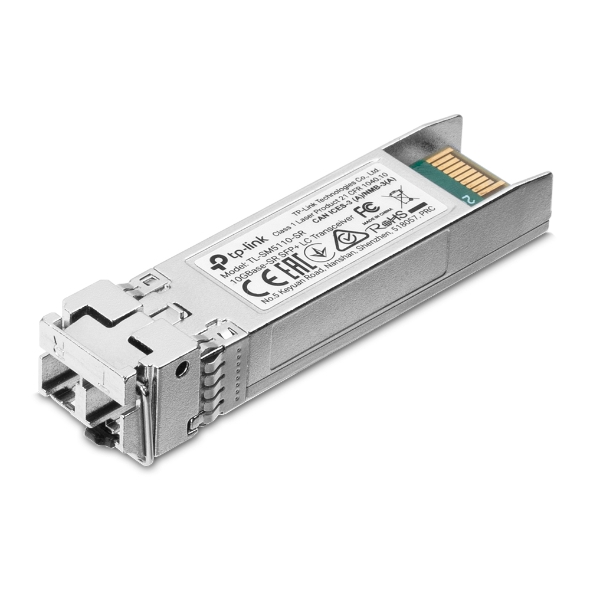

TP-Link - TL-SM5110-SR - 10GBase-SR SFP+ LC Transceiver
Part number:
TL-SM5110-SR
Price:
10GBase-SR SFP+ LC Transceiver
Features:
- Multi-mode SFP+ LC Transceiver
- Hot-Pluggable with maximum flexibility
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with 10G Small Form Pluggable Multi-Source Agreement (SFP+ MSA)

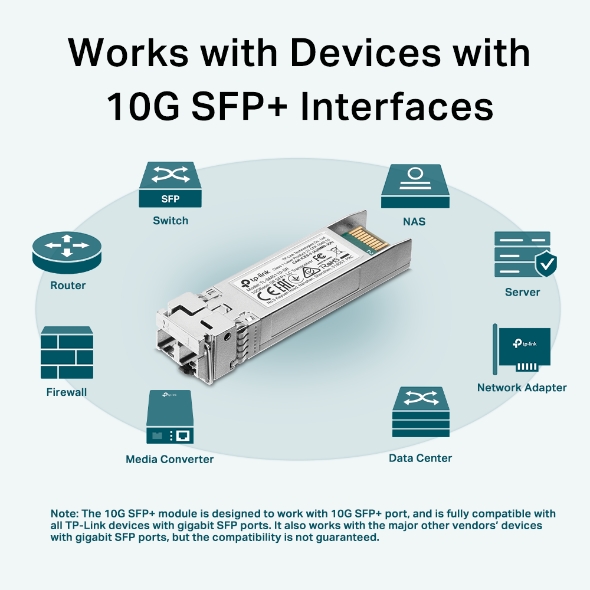

- Compatible with switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more.
| Package Contents | • 10G SFP+ Module TL-SM5110-SR • Installation Guide |
| HARDWARE FEATURES | |
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
| Dimensions (W*D*H) | 2.4*0.6*0.5 in (61.3*14.5*12.2 mm) |
| TRANSCEIVER | |
| Standards and Protocols | IEEE 802.3ae, TCP/IP, SFF-8472 |
| Wave Length | 850nm |
| Power Supply | 3.3V |
| Fiber Type | 50/125um or 62.5/125um Multi-mode |
| Max. Cable Length | 300m (OM3) |
| Data Rate | 10Gbps |
| Port Type | LC/UPC |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 0–70 ℃ (32–158 ℉) Storage Temperature: -40–80 ℃ (-40–176 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
