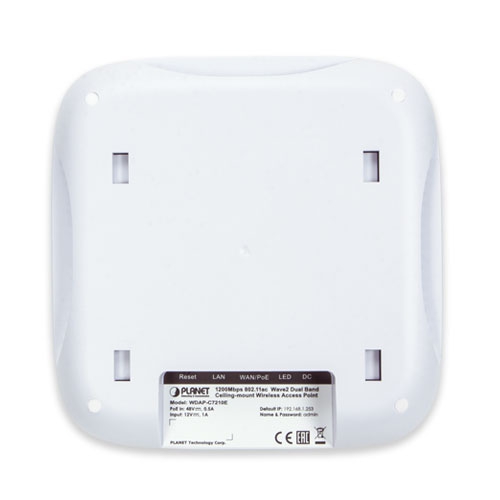

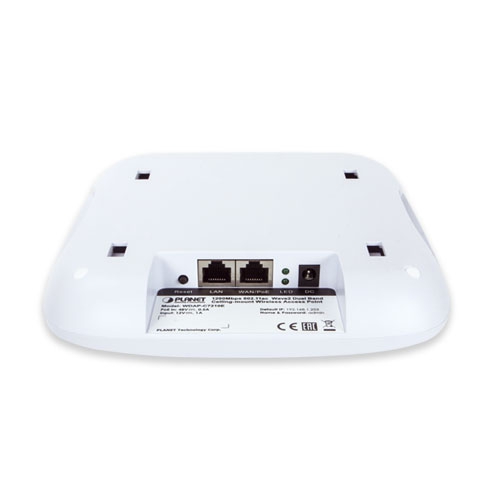

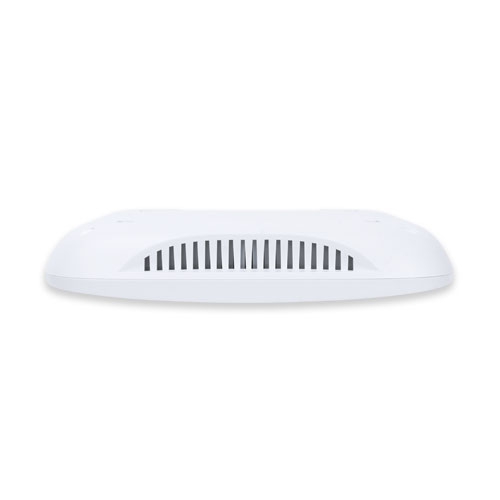

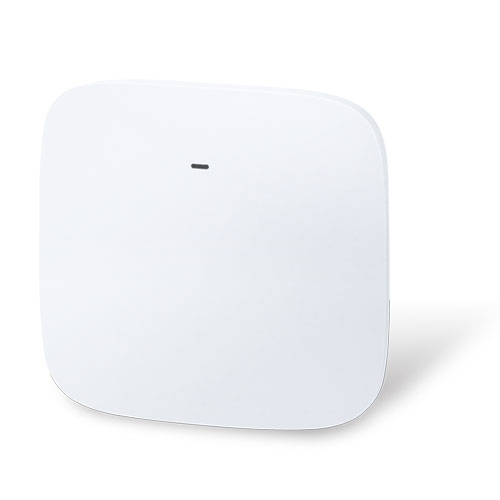

Planet - WDAP-C7210E - 1200Mbps 802.11ac Wave 2 Dual Band Ceiling-mount Wireless Access Point
Planet - WDAP-C7210E - 1200Mbps 802.11ac Wave 2 Dual Band Ceiling-mount Wireless Access Point
Part number:
WDAP-C7210E
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

1200Mbps 802.11ac Wave 2 Dual Band Ceiling-mount Wireless Access Point,  802.3at PoE PD, 2 10/100/1000T LAN, 802.1Q VLAN, supports NMS-500/NMS-1000V controller



Features:

  • Ultra-high-speed, Wave 2 MU-MIMO Wireless LAN Solution
  • Benefits of MU-MIMO under 802.11ac Wave 2
  • Powerful Dual-band WLAN Solution
  • Advanced Security and Rigorous Authentication
  • Multiple Operation Modes for Various Applications
  • Ceiling-mount Design for Your Environment
  • Optimized Efficiency in AP Management
  • Extremely High Speed and Dual Band Make Wi-Fi Transmission More Powerful



Industrial Compliant Wireless LAN and LAN

  • Compliant with the IEEE 802.11a/b/g/n/ac wireless technology
  • Equipped with 10/100/1000Mbps RJ45 ports, auto MDI/MDI-X supported



RF Interface Characteristics

  • 802.11ac Wave 2 2T2R MIMO architecture with data rate of up to 1200Mbps (300Mbps at 2.4GHz and 867Mbps at 5GHz)
  • High output power with multiply-adjustable transmit power control



Multiple Operation Modes and Wireless Features

  • Multiple operation modes: AP, Gateway, WISP, Repeater, Super WDS
  • WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
  • Coverage threshold to limit the weak signal of clients occupying session
  • Real-time Wi-Fi channel analysis chart and client limit control for better performance
  • Support Terminal Fast Roaming with 802.11k, 802.11v, and 802.11r



Secure Network Connection

  • Full encryption supported: 64-/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK and 802.1X RADIUS authentication
  • Supports 802.1Q VLAN and SSID-to-VLAN mapping
  • Supports IP/Port/MAC address/URL filtering, DoS, SPI Firewall
  • Supports DMZ and Port forwarding
  • Bandwidth control per IP address to increase network stability



Easy Deployment and Management

  • Supports PLANET AP Controllers in AP mode
  • Easy discovery by PLANET Smart Discovery
  • Self-healing mechanism through system auto reboot setting
  • System status monitoring through remote Syslog Server
  • Supports PLANET DDNS/ Easy DDNS
Hardware Specifications
InterfacesLAN
2 x 10/100/1000BASE-T RJ45 port
Auto-negotiation and auto MDI/MDI-X
AntennasGain: 4 x Internal 5dBi antenna (2.4G x2, 5G x2)
Reset ButtonReset button on the rear side (Press over 15 seconds to reset the device to factory default)
LED IndicatorsSYS, 2.4G, 5G
Dimensions (W x D x H)186 x 186 x 35.8 mm
Weight380 ± 5g
Power Requirements48V DC IN, 0.5A, IEEE 802.3at PoE+ or
12V DC IN, 1.5A from DC Jack ( 5.5 x 2.1mm )
Power Consumption< 12W
MountingCeiling Mount
Wireless Interface Specifications
StandardIEEE 802.11ac
IEEE 802.11n
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11i
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control
IEEE 802.11k, 802.11v, and 802.11r
Media Access ControlCSMA/CA
Data Modulation802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM)
802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM)
802.11b: DSSS (DBPSK / DQPSK / CCK)
Band Mode2.4G / 5G concurrent mode
Frequency Range2.4GHz:
FCC: 2.412~2.462GHz
ETSI: 2.412~2.472GHz

5GHz:
FCC: 5.180~5.240GHz, 5.745~5.825GHz
ETSI: 5.180~5.700GHz
Operating ChannelsFCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 Channels)
ETSI: 36, 40, 44, 48, 100, 104, 108, 112, 116, 132, 136, 140 (12 Channels)

5GHz channel list may vary in different countries according to their regulations.
Max. Transmit Power (dBm)FCC: up to 22 ± 1dBm
ETSI: < 20dBm (EIRP)
Receive Sensitivity
Software Features
LANStatic IP / Dynamic IP
Supports IP-MAC binding
WAN
  • Static IP
  • Dynamic IP
  • PPPoE
Wireless Mode
  • Access Point
  • Gateway
  • WISP
  • Repeater
  • Super WDS
Channel Width20MHz, 40MHz, 80MHz
Encryption Security64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless SecurityEnable/Disable SSID Broadcast
Wireless max. 32 MAC addresses filtering
User Isolation
Max. SSIDs8 (4 per radio)
Max. Clients64 per radio (50 is suggested, depending on usage)
Max. WDS Peers4
Wireless QoSSupports Wi-Fi Multimedia (WMM)
Wireless AdvancedAuto Channel Selection
5-level Transmit Power Control (Max.100%, Efficient 75%, Enhanced 50%, Standard 25% or Min. 12.5%)
Client Limit Control, Coverage Threshold
Wi-Fi channel analysis chart
Fast Roaming
Status MonitoringDevice status, Wireless client List
PLANET Smart Discovery
DHCP client table
System Log supports remote syslog server
VLANIEEE 802.1Q VLAN (VID: 3~4094)
SSID-to-VLAN mapping up to 4 SSIDs
Self-healingSupports auto reboot settings per day/hour
ManagementRemote management through PLANET DDNS/ Easy DDNS
Configuration backup and restore
Supports UPnP
Supports IGMP Proxy
Supports PPTP/L2TP/IPSec VPN Pass-through
SNMP v1/v2c/v3 support, MIB I/II, Private MIB
Central Management*Applicable controllers: NMS-500, NMS-1000V

*Remarks: The feature will be supported through firmware/system upgrade.
Environment & Certification
TemperatureOperating: 0 ~ 40 degrees C
Storage: -40 ~ 70 degrees C
HumidityOperating: 10 ~ 90% (non-condensing)
Storage: 5 ~ 90% (non-condensing)
RegulatoryCE, RoHS
