Cyber Power - CR12U61003 - 12U 19" Wall Mount Enclosure, 600mm Wide, 600mm Deep, Hex Perforated Metal Door, Side Panels, Locking Doors/Side Panels, Black
Part number:
CR12U61003
Price:
The CR12U61003 is designed for use in network closets, classrooms, and other locations. It houses network switches and patch panels up to 20.3 inches deep. This rack features convenient top panel cable access openings, perforated doors and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR12U61003 ships fully assembled for quick deployment and can be customized with compatible accessories. It is covered by a 5-year limited warranty.
Features:
- Wall Mount Enclosure
| Output | |
| USB Charge Port | No |
| Physical | |
| Cable Access Opening Dimensions | 9.8 x 2.2 in (249 x 56 m) |
| Color | Black |
| Door Type | Hex Perforated Metal Door |
| Factory Default Mounting Depth | 13.2 ft (335.3 mm) |
| Max. Mounting Depth (in) | 20.3 |
| Max. Mounting Depth (mm) | 516 |
| Min. Mounting Depth (in) | 1.9 |
| Min. Mounting Depth (mm) | 47 |
| Rack Angle Mounting Hole Type | Square Mounting Holes, #12-24 Mounting Holes |
| Rack Height | 12U |
| Wall Mount Rear Frame | Swing Out |
| Weight Capacity – stationary load (kg) | 60 |
| Weight Capacity – stationary load (lbs) | 132.3 |
| Dimensions | |

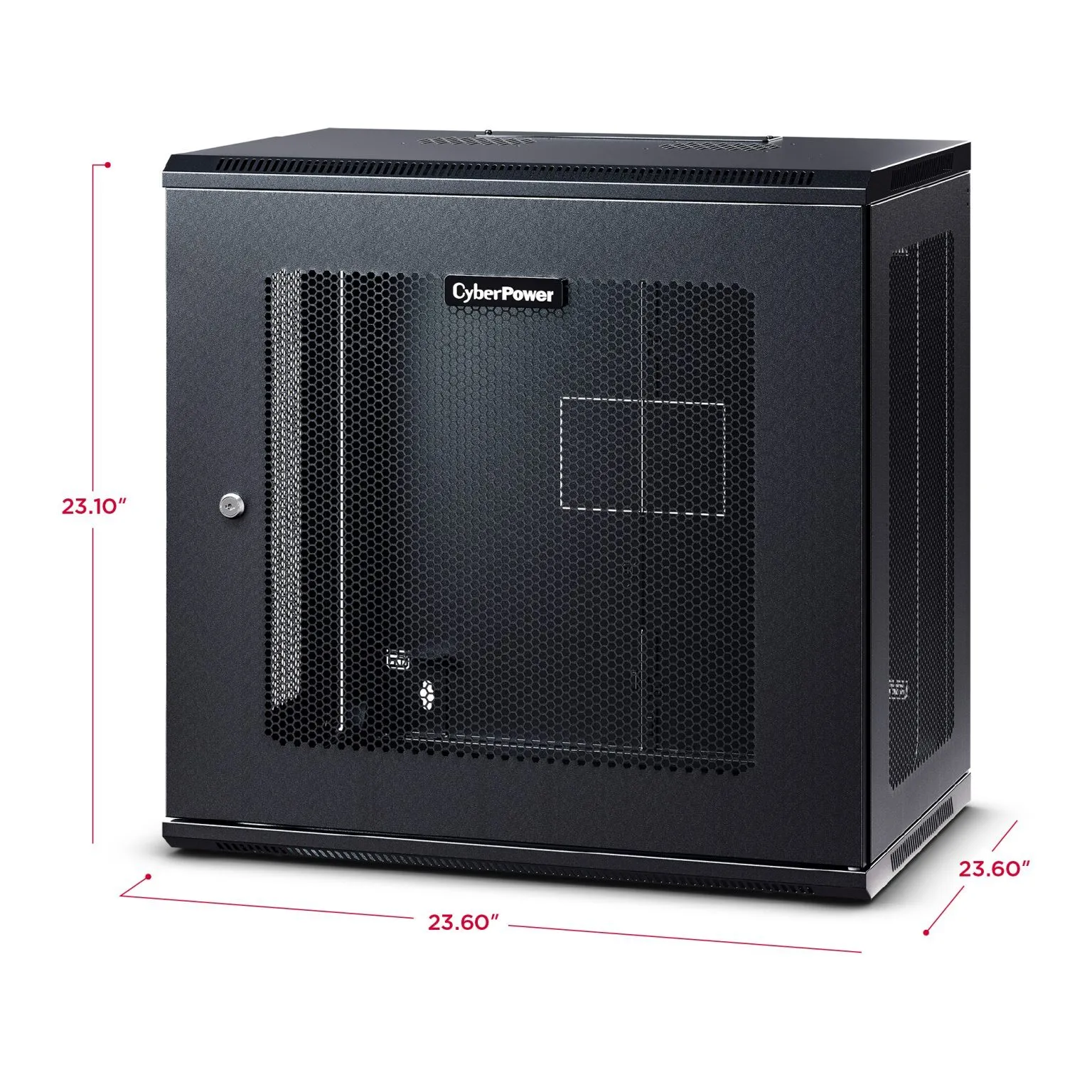

| Physical Dimensions – (WxHxD) (cm) | 59.94 x 58.67 x 59.94 (cm) |
| Physical Dimensions – (WxHxD) (in) | 23.6 x 23.1 x 23.6 (in) |
| Physical Dimensions – (WxHxD) (mm) | 599 x 587 x 599 (mm) |
| Physical Weight (kg) | 18.01 |
| Physical Weight (lb) | 39.7 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 21.59 |
| Shipping – Weight (lb) | 47.6 |
| Shipping Dimensions – (WxHxD) (cm) | 66.68 x 71.12 x 66.68 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 26.25 x 28 x 26.25 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 666.75 x 711.2 x 666.75 (mm) |
| Special Features | |
| Cable Access | Top and Bottom Openings |
| Lockable Doors and Side Panels | Yes, keyed alike |
| Numbered Rack Units | Yes |
| PE Grounding Point | Yes |
| Removable Doors and Side Panels | Yes |
| Reversible Front Door | Yes |
| Ventilation | Perforated Doors, Perforated Side Panels, Ventilated Top and Bottom |
| Environmental | |
| Protection Class | IP20 |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | EIA-310E, IEC-60297-1, 2, ASTM-D610, ASTM-B117 |
| Warranty | |
| Product Warranty | 5 Year Limited Warranty |
