Multiple SFP Fiber Port Switch for Growing Long-Reach Networking of Enterprise, Telecoms and Campuses

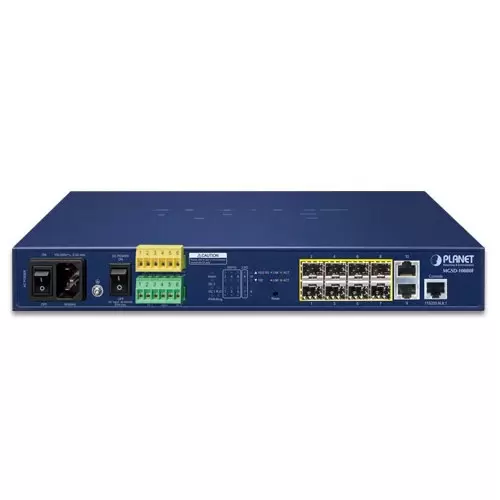

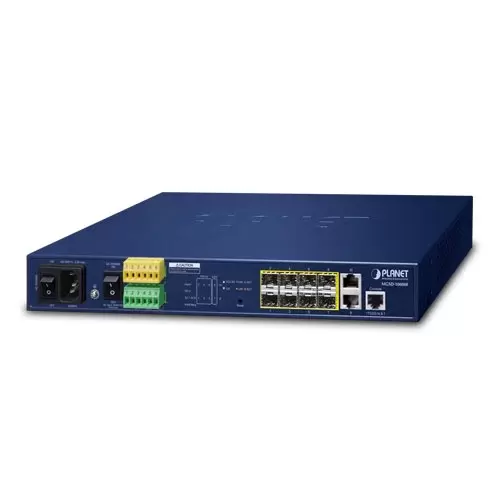

The MGSD-10080F from Planet Technology features enhanced management options and 8 100/1000Mbps dual speed SFP Fiber ports. The unit also features 2 10/100/1000Mbps TP ports and is housed in a durable strong case for long-lasting durability. The unit has the ability to offer non-blocking switch fabric and wire-speed throughput with a maximum of 20Gbps in changing temperature ranges from -10 to 60°C without the loss of packets or CRC errors. This makes the tasks to upgrade the LAN in order to increase bandwidth. The MGSD-10080F is crafted to meet the needs of providers who need to provide long range Ethernet network. The MGSD-10080F features a Front Access design, which makes management, installation and wiring simpler than ever.

Flexible and Extendable Solution

The 8 mini-GBIC slots built in the MGSD-10080F support dual-speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The MGSD-10080F supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

AC and DC Redundant Power to Ensure Continuous Operation

To enhance the operation reliability and flexibility, the MGSD-10080F is equipped with one 100 ~ 240V AC power supply unit and two additional 36 ~ 72V DC power input connectors for redundant power supply installation. The Redundant Power Systems are specifically designed to handle the demands of high tech facilities requiring the highest power integrity. Furthermore, with the 36~ 72V DC power supply implemented, the MGSD-10080F can be applied as the telecom level device that could be located in the electronic room.

Digital Input and Digital Output for External Alarm

The MGSD-10080F supports Digital Input, and Digital Output on the front panel. The external alarm offers technicians the ability to use Digital Input to detect, and log external device status (such as door intrusion detector) for the alarm as Digital Output could be used to alarm if the MGSD-10080F has port link down, link up or power failure.

Cost-effective IPv6 Managed Gigabit Switch Solution for Metro Ethernet

To fulfill the demand for ISP to build the IPv6 (Internet Protocol version 6) network infrastructure speedily, the MGSD-10080F supports both IPv4 and IPv6 management functions. It can work with original IPv4 network structure and also support the new IPv6 network structure. With easy and friendly management interfaces and plenty of management functions included, the MGSD-10080F Metro Ethernet Switch is the best choice for ISP and service providers to build the IPv6 FTTx edge service and for Industries to connect with IPv6 network.

Layer 2 / Layer 4 Full-functioned Managed Switch for Building Automation Networking

The MGSD-10080F Managed Ethernet Switch is also ideal for applications in the factory data centers and distributions. It provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and secure management features to protect customer’s Automation Ethernet network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.

The MGSD-10080F features enhanced management options and 8 100/1000Mbps dual speed SFP Fiber ports.

Features:

• Ports: 8 100/1000X SFP + 2 10/100/1000TX
• Type of Switch: Managed
• Switch Fabric: 20Gbps /  non-blocking
• Power Consumption: Max. 11.2W/38.2BTU (AC), 10.8W/36.9BTU (DC)
• Throughput: 14.8Mpps 64Bytes
• Operating Temperature: 0 to 50°C (AC), -10 to 60°C (DC)
• TAA Compliant
