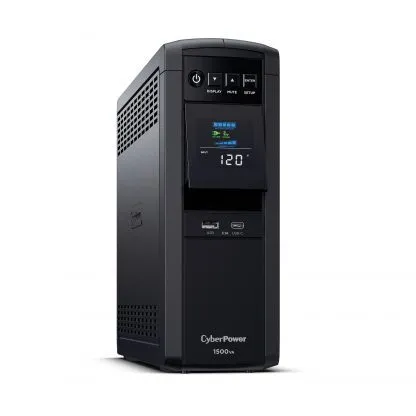

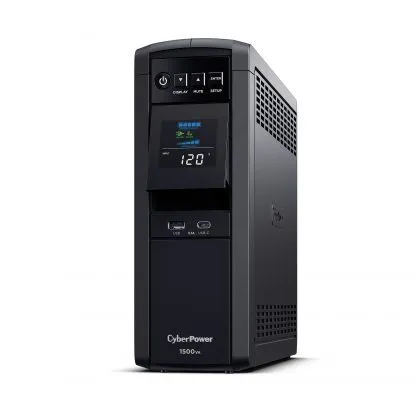

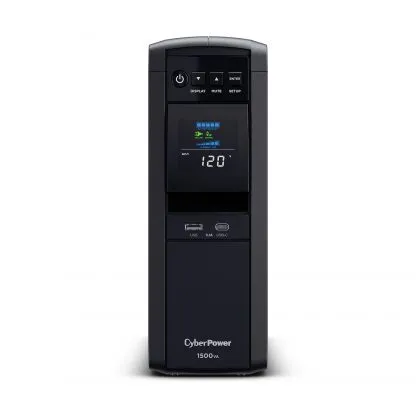

A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCDTAA provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, and networking devices requiring active PFC power source compatibility.
The CP1500PFCLCDTAA features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure.
The CP1500PFCLCDTAA uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500PFCLCDTAA comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
Features:
General | |
Active PFC Compatible | Yes |
Energy Saving | GreenPower UPS™ Bypass Technology |
Energy Star Certified | Yes |
UPS Topology | Line Interactive |
Battery | |
Battery Quantity | 2 |
Battery Size | 12 V / 9 Ah |
Battery Type | Sealed Lead-Acid Battery |
Hot Swappable | Yes |
Replacement Battery Cartridge | RB1290X2 |
RB1280X2B (for serial numbers beginning with CQ9, CTF) | |
Replacement Battery Cartridge Quantity | 1 |
Runtime at Full Load | 2.5 min |
Runtime at Half Load | 10 min |
Typical Recharge Time | 8 Hours |
User Replaceable Battery | Yes |
Input | |
Circuit Breaker | 15 A |
Cord Length | 5 ft (1.5 m) |
Input Frequency Range | 57 Hz – 63 Hz |
Input Plug Type | NEMA 5-15P |
Input Voltage Range | 88 VAC – 144 VAC |
Nominal Input Voltage | 120 VAC |
Plug Style | Right Angle – 45° Offset |
Output | |
Automatic Voltage Regulation | Single Boost |
On AC WaveForm | Sine Wave |
On Battery Frequency | 60 Hz ± 1% |
On Battery Voltage | 120 VAC ± 5% |
On Battery Waveform | Sine Wave |
Outlet Type | 12 – NEMA 5-15R |
Outlets – Battery & Surge Protected | 6 |
Outlets – Surge-Only Protected | 6 |
Outlets – Total | 12 |
Outlets – Widely Spaced | 2 |
Output Power Factor | 0.7 |
Overload Protection | Internal Circuitry Limiting |
Circuit Breaker Protected | |
Typical Transfer Time | 4 ms |
USB Charge Port | Yes |
USB Charge Port Amperage | 3.1 Amps (Shared) |
USB Charge Port Quantity | 2 |
USB Charge Port Type | 1 Type A |
1 Type C | |
USB Charge Port Voltage | 5 VDC |
Under/Over-Voltage Correction | 11.50% |
VA | 1500 VA |
Watts | 1000 W |
Surge Protection & Filtering | |
EMI/RFI Filtration | Yes |
Network Protection RJ45 | 1-in / 1-Out (10/100/1000) + PoE Compatible |
Surge Suppression (Joules) | 1445 J |
Management & Communications | |
Audible Alarms | Battery Mode |
Low Battery | |
Overload | |
Fault | |
Emergency Power Off (EPO) Port | No |
HID Compliant USB Port | Yes |
LCD | Multifunction LCD |
LED Indicators | Power On |
Wiring Fault | |
Management Cable | USB Cable |
SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205TAA |
Serial Port | 1 Dry Contact |
Software (Free Download) | PowerPanel® Business |
Physical | |
Color | Black |
Form Factor | Mini-Tower |
Material of Construction | Plastic |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 9.91 x 27.94 x 35.56 (cm) |
Physical Dimensions – (WxHxD) (in) | 3.9 x 11.0 x 14.0 (in) |
Physical Dimensions – (WxHxD) (mm) | 99 x 279 x 356 (mm) |
Physical Weight (kg) | 11.29 |
Physical Weight (lb) | 24.9 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 7.94 |
Shipping – Weight (lb) | 17.5 |
Shipping Dimensions – (WxHxD) (cm) | 19.69 x 36.83 x 44.45 (cm) |
Shipping Dimensions – (WxHxD) (in) | 7.75 x 14.5 x 17.5 (in) |
Shipping Dimensions – (WxHxD) (mm) | 196.85 x 368.3 x 444.5 (mm) |
Environmental | |
Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
Operating Relative Humidity | 0 – 95 % (non-condensing) |
Operating Temperature | 32 – 104 °F (0 – 40 °C) |
Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
Certifications | |
Environmental | RoHS Compliant |
Safety | UL1778 |
cUL 107.3 | |
FCC DOC Class B | |
Warranty | |
CEG Amount | $500000 |
Connected Equipment Guarantee | Lifetime |
Extended Warranty Option | WEXT5YR-U2A |
Product Warranty | 3 Year Limited Warranty |
