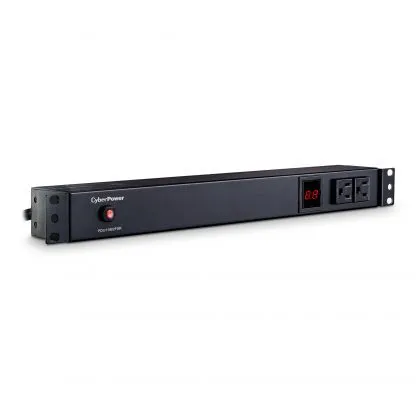

The CyberPower PDU15M2F8R, a 10-outlet (2 front, 8 rear), rackmount metered power distribution unit (PDU), provides 100-125V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Designed for datacenters and other electrically demanding applications, the PDU15M2F8R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically. The PDU15M2F8R comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.
Features:
- Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit. - Switch-Free Design
Safeguards against accidental power shutdown. - Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices. - Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it’s needed. - Twist Lock Plug
Secures an outlet by twisting and locking into place to prevent accidental disconnection. - Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in. - Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount). - Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product. - Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
| Input | |
| Cord Length | 15 ft (4.6 m) |
| Derated Input Current | 12:00 AM |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | NEMA 5-15P |
| Maximum Input Current | 15A |
| Nominal Input Voltage | 100 – 125 VAC |
| Phase | Single Phase |
| Plug Style | Straight |
| Output | |
| Meter Readout | Amperage |
| Nominal Output Voltage | 100 – 125 VAC |
| Outlet Type | 10 – NEMA 5-15R |
| Outlets – # of Banks | 1 |
| Outlets – Front | 2 |
| Outlets – Rear | 8 |
| Outlets – Total | 10 |
| Overload Protection | 15A |
| USB Charge Port | No |
| Physical | |
| Adjustable Mounting Brackets | 2 sets (L-Short, L-Long) |
| Color | Black |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Form Factors Supported | Horizontal or Vertical Wallmount |
| Racks | |
| Horizontal or Vertical Mount in a Variety of Other Surface Types | |
| Material of Construction | Metal |
| Rack Height | 1U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 44.45 x 4.45 x 5.72 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.5 x 1.75 x 2.25 (in) |
| Physical Dimensions – (WxHxD) (mm) | 445 x 44 x 57 (mm) |
| Physical Weight (kg) | 1.81 |
| Physical Weight (lb) | 4 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 9.41 |
| Shipping – Weight (lb) | 20.75 |
| Shipping Dimensions – (WxHxD) (cm) | 18.11 x 6.63 x 51.13 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 7.13 x 2.61 x 20.13 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 181.1 x 66.29 x 511.3 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 95 °F (0 – 35 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1363 certified by ETL |
| Warranty | |
| Product Warranty | Limited Lifetime Warranty |
