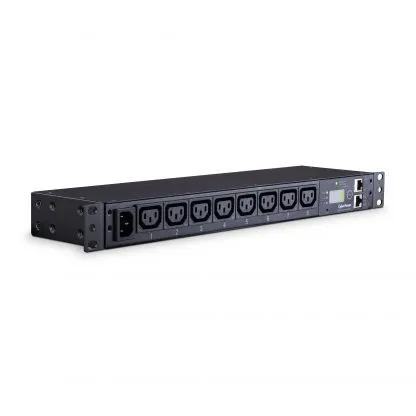

Cyber Power - PDU15MHVIEC8FNET - 15A (Derated to 12A), 200 - 240 V, 50Hz/60Hz, IEC-320 C14 plug, 8 IEC-320 C13, 1U Rackmount, 10 ft cord, 3 year warranty
Part number:
PDU15MHVIEC8FNET
Price:

The CyberPower PDU15MHVIEC8FNET, an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU), provides 200-240V 15A output. It distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C14 plug with unfiltered electrical pass-through. Power status can be monitored over the network, using the CyberPower Management Console and the RJ45 Ethernet port for network connection, or locally by using the LCD. The PDU15MHVIEC8FNET comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.



Features:

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Switch-Free Design
    Safeguards against accidental power shutdown.
  • CyberPower Management Console
    Built into Monitored PDUs, a CyberPower Management Console is a hardware interface. It monitors the incoming power and power draw from the PDU, sends notifications based on the power status, and logs events.
  • Remote and Local Monitoring
    Enables offsite and onsite tracking of PDU vitals.
  • Automatic Event Notifications
    Provide immediate updates about power events via email, SMS text, or SNMP traps.
  • Upgradeable Firmware
    Downloadable improvements (firmware updates) to programs that run the PDU.
  • Digital Display
    Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
  • Network-Grade Plugs and Outlets
    Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
  • Long Input Power Cord
    Reaches distant power sources, allowing the PDU to be placed where it’s needed.
  • Twist Lock Plug
    Secures an outlet by twisting and locking into place to prevent accidental disconnection.
  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • Configurable Mounting Brackets
    Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Input
Voltage200 – 240 V
Frequency50/60 Hz
Maximum Current15A (derated to 12A)
On/Off SwitchN/A
Plug TypeIEC-320 C14
Plug StyleStraight (Socket)
Cord Length10 ft
Output
Nominal Output Voltage200 – 240 V
Outlet TypeIEC-320 C13
Outlet Banks1
Outlets – Front8
Outlets – Rear0
Outlets – Total8
Meter ReadoutKW, Voltage, Amperage, IP Address
LED IndicatorsLoad,Tx/Rx, LINK
Overload Protection15A (derated 12A-UL/10A-CE)
Management & Communications
SNMP / HTTP Remote MonitoringTCP/IP, UDP, DHCP, SNMP, HTTP
ConnectivityRJ45, DB9/RS232
Physical
Rack Size1U
Form Factors Supported1U rackmount, 0U vertical rackmount & undercounter installation supported
StyleRackmount, Vertical Rackmount & Under-Counter
Cord Retention Tray/Cord OrganizersYes
External Site Ground PinYes
Adjustable Mounting Brackets2 sets (L-short, L-long)
Dimensions – W×H×D (in)17.05 x 1.75 x 4.41 inches
Weight (lbs)3.53 lbs
Environmental
Operating Temperature32 – 113 °F (0 – 45 °C)
Operating Humidity0 – 95% (non-condensing)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Maximum Operating Elevation14,760 ft (4,500 m)
Maximum Storage Elevation50,000 ft (15,000 m)
Certifications
SafetyUL60950_1 certified by ETL, CSA C22.2 & FCC Class A
EnvironmentalRoHS Compliant
Warranty
Product Warranty3 year
Name
Description
Size
Downloads
File
Datasheet
0.3mb
