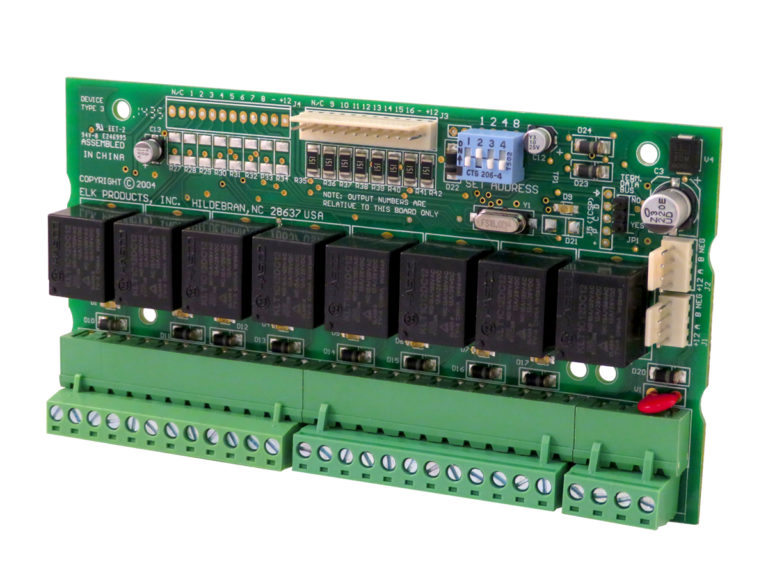

Adds 16 outputs (8 voltage, 8 relays) to M1 Gold or M1EZ8 Controls. Voltages can be used to trigger low current devices (50 mA max. each). Relays are SPDT rated for 7A @ 30 VDC, 10A @ 125 VAC. Operates from 4-wire data bus. Up to 12 output expanders may be used for a total of 208 outputs. Option: Convert 8 voltage outputs to relays using M1RB Relay Board.


Features:

• 8 Voltage Outputs
• 8 Single-Pole, Double-Pole Relay Outputs
• Operates on the 4-Wire Data Bus
• DIP Switch Address Settings
• One (1) - Twelve (12) Conductor "Flying Lead" Wire Harness
• Voltage Outputs may be converted to Relays using M1RB Relay Boards
• Status LED with Diagnostic Display
• Mounts in Enclosure using ELK-SWG Glides, SWP or SWP3 Structured Wire Plates, or Double Sided Foam Tape
