Ideal Solution for Secure IP Surveillance Infrastructures
The FGSW-1816HPS provides intelligent PoE functions along with 16 10/100Base-TX ports featuring 30-watt 802.3at PoE+ with RJ-45 copper interfaces and 2 Gigabit TP/SFP combo interfaces supporting high-speed transmission of surveillance images and videos. The unit is well suited for applications within enterprise data centers and distribution centers.
Perfectly- Integrated Solution for PoE IP Camera and NVR System
Distinct from enterprise PoE switches which usually feature 12 or 24 PoE ports, the FGSW-1816HPS provides 16 802.3at PoE ports that caters to the needs of medium to large scale IP surveillance networks at a lower total cost. With its 7.2Gbps high-performance switch architecture and 220-watt PoE power budget, the recorded video files from the connected 16 PoE IP cameras can be powered by the FGSW-1816HPS and saved in an 8 / 16 / 32-channel NVR system or surveillance software for comprehensive security monitoring.
Flexible and Extendable Uplink Solution
The FGSW-1816HPS provides 2 extra Gigabit TP/SFP combo interfaces that support 10/100/1000Base-T RJ-45 copper to connect with surveillance network devices such as NVR, Video Streaming Server or NAS to facilitate surveillance management. These dual-speed fiber SFP slots can also accept 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber transceivers to uplink to the backbone switch and monitoring center in long distances. The distance can be extended from 550m to 2km (multi-mode fiber), even going up to above 10/20/30/40/50/70/120km (single-mode fiber or WDM fiber).

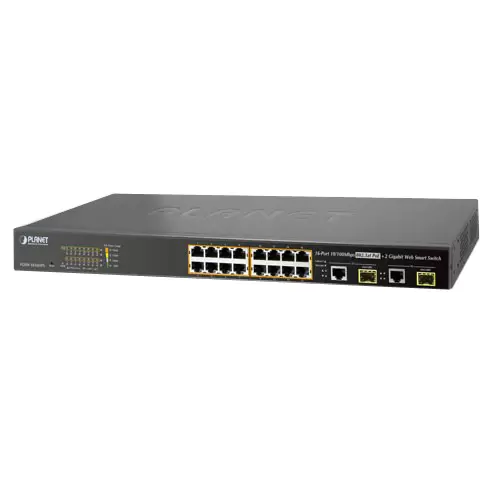

The FGSW-1816HPS is a 16-port Web Smart Ethernet Switch with PoE capabilities.
Features:
- Ports: 16 10/100TX + 2 Gigabit TP/SFP
- Type: Web Smart
- PoE Ports:16
- Standard: 802.3at/af
- PoE Budget: 220W
- Power Consumption: 240 Watts/816 BTU
- Throughput: 5.35Mpps 64Bytes
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Hardware Specifications | |
| 10/100Mbps Copper Ports | 16 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports |
| Gigabit Copper Ports | 2 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 1000Base-X SFP interfaces, shared with Port-17 to Port-18 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 7.2Gbps / non-blocking |
| Throughput | 5.35Mpps@64Bytes |
| Address Table | 4K entries, automatic source address learning and ageing |
| Share Data Buffer | 2.75Mb embedded memory for packet buffers |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Maximum Transmit Unit size (MTU size) | 1536 Bytes |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory Default |
| Dimensions (W x D x H) | 440 x 200 x 44.5 mm, 1U height |
| Weight | 2.55kg |
| LED | System: Power (Green) 10/100Base-TX RJ45 Interfaces (Port1 to Port16): 10/100Mbps LNK/ACT (Green) PoE In-Use (Orange) 10/100/1000Base-T RJ45 / SFP Interfaces (Port17 to Port18): LNK/ACT (Green) 100/1000 (Green) PoE Usage 50W, 100W, 150W, 190W (Orange) |
| Cable Twisted-Pair | 10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters 100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters 1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters |
| Cable Fiber-Optic Cable | 1000Base-SX : 50/125?m or 62.5/125?m multi-mode fiber optic cable, up to 550m (varying on SFP module) 1000Base-LX : 9/125?m single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (varying on SFP module) |
| Power Requirements | 100~240V AC, 50/60Hz, 4A |
| Power Consumption | Max. 240 watts / 816 BTU |
| ESD Protection | 2KV DC |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af / 802.3at PoE / PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per Port 52V DC, Max. 30.8 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 220 watts (max.) |
| PoE Ability PD @ 7 watts | 16 units |
| PoE Ability PD @ 15.4 watts | 14 units |
| PoE Ability PD @ 30.8 watts | 7 units |
| Layer 2 Functions | |
| Port Configuration | Port disable / enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable |
| Port Status | Display each ports speed duplex mode, link status, flow control status, auto negotiation status and trunk status |
| Port Mirroring | TX / RX / Both Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs Port-based VLAN, up to 18 VLAN groups MTU VLAN |
| Link Aggregation | 2 groups of 4-Port 10/100Base-TX trunk supported 1 group of 2-Port 10/100/1000Base-T trunk supported |
| QoS | Allow to assign low / high priority on each port First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy |
| IGMP Snooping | IGMP (v1/v2) Snooping, up to 32 multicast groups |
| Security Control | MAC address binding TCP & UDP filter |
| Management Functions | |
| Basic Management Interfaces | Web Browser, SNMP v1 |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1Q VLAN IEEE 802.1p QoS IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
