SECO-LARM - SD-969-M18/S - 18" Gatelock Armored Door Cord
Part number:
SD-969-M18/S
Price:

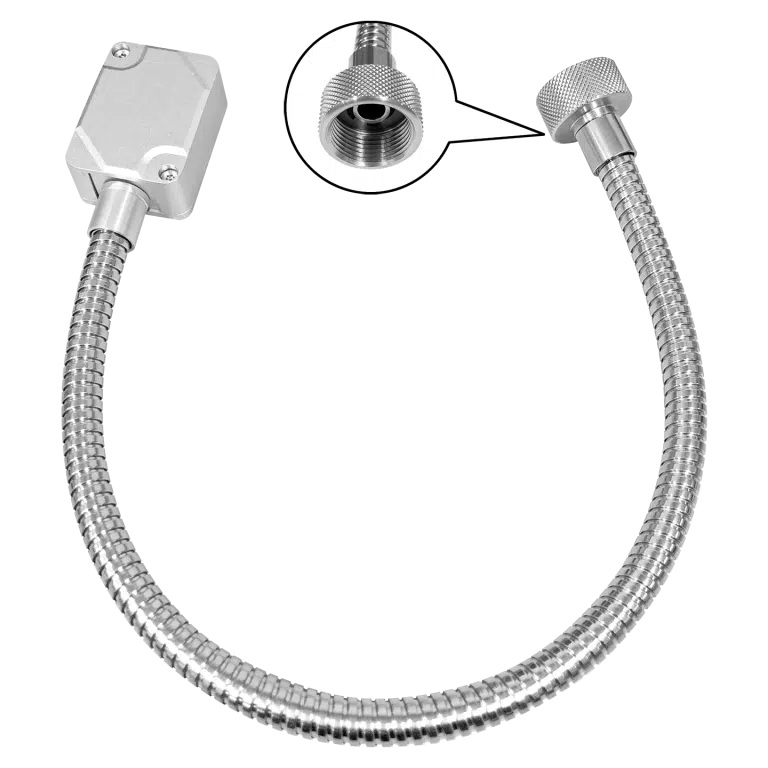

The ENFORCER Gate Lock Armored Door Cord is designed to attach to the conduit fitting of the outdoor gate locks with the other end being surface-mounted. This allows for secure and easier installation of wiring in a variety of applications. Once mounted, simply remove cover to access wires. The door cord stays in place. No need to remove from the door which prevents stripping of the screws and mounting points.



Features:

  • One end screws to the lock’s conduit fitting and the other end is surface-mounted
  • 18″ (45cm) Stainless steel armored cord
  • Inside door-cord diameter: 5/16″ (8mm)
  • Outside door-cord diameter: 7/16″ (11mm)
  • Security screws (included) prevent tampering
  • Silver finish
  • Compatible with following models: E-942FC-600, E 942FC 1300, E 946FC 600Q, E 946FC 1K2Q
Cord length18″ (45cm)
Pre-wired terminal blockNo
Maximum currentN/A
ConstructionStainless-steel armored
Outside diameter7/16” (11mm)
Inside diameter5/16” (8mm)
Dimensions23/16”x7/8“x19/16” (55x22x40 mm)
Name
Description
Size
Downloads
File
Datasheet
0.3mb
