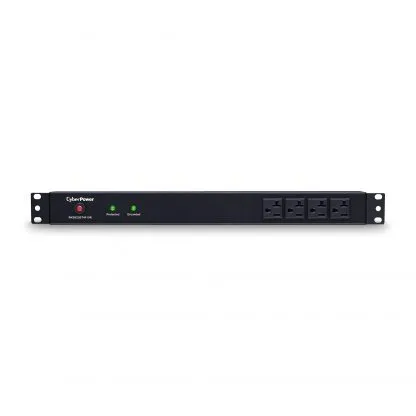

Engineered for the most demanding applications, the professional-grade Rackbar Surge Protector RKBS20ST4F10R from CyberPower safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the RKBS20ST4F10R also performs superbly for home office use, providing 1800 joules of protection, 20-amp electrical capacity with circuit breaker, and 14 surge-protected outlets (4 front, 10 rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. Two sets of mounting brackets provide flexible installation options: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations.
Features of the RKBS20ST4F10R include an EMI/RFI noise filter, LED status indicators, industrial-grade metal housing, AC power cord (15 ft.), twist lock plug, and a cord retention tray. The RKBS20ST4F10R also comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee.
Features:
- Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- EMI/RFI Noise Filter: Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
- Versatile Rackmount Options: Enable the Rackbar to be installed vertically or horizontally with two sets of mounting brackets: 1U rackmount (19 in.); 0U vertical rackmount and under-counter configurations.
- LED Indicators: Provide information about the model’s status: Power On and Grounded.
- Switch Free Design: Prevents accidental shutdowns and disconnections.
- Twist Lock Plug: Secures an outlet by twisting and locking into place to prevent accidental disconnection.
- Power Management Features: Include network-grade plugs and outlets, an AC power cord, and a cord retention tray to enhance safety, efficiency, and performance.
- Industrial-Grade Metal Housing: Prolongs model life with rugged casing made of impact-resistant material for maximum durability.
- Limited Lifetime Warranty: Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
- Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
| Input | |
| Voltage | 120 V |
| Frequency | 50/60 Hz |
| Maximum Input Current | 20A |
| Plug Type | NEMA L5-20P |
| Plug Style | Straight |
| Cord Length | 15 ft |
| Output | |
| Nominal Output Voltage | 120 V |
| Outlet Type | NEMA 5-20R |
| Outlets – Front | 4 |
| Outlets – Rear | 10 |
| Outlets – Total | 14 |
| LED Indicators | Power On (green) |
| Grounded (green) | |
| Overload Protection | 20 A |
| Surge Protection & Filtering | |
| Surge Suppression | 1,800 joules |
| Protection Modes | N-H, N-G, and H-G |
| Maximum Surge Current | 90,000 amps |
| Maximum Surge Voltage | 6,000 volts |
| Clamping Voltage | 400 V (N-H, H-G ) |
| 500 V (N-G) | |
| Response Time | 1 nanosecond |
| EMI/RFI Filtration | Yes |
| Attenuation | Up to 50 dB |
| Physical | |
| Rack Size | 1U |
| Form Factors Supported | 1U rackmount |
| 0U vertical rackmount | |
| undercounter installation supported | |
| Style | Rackmount |
| Vertical Rackmount | |
| Under-Counter | |
| Cord Retention Tray/Cord Organizers | Yes |
| External Site Ground Pin | Yes |
| Material of Construction | Metal |
| Adjustable Mounting Brackets | 2 sets (L-short, L-long) |
| Dimensions – W×H×D (in) | 17.5 × 1.75 × 2.25 inches |
| Weight (lbs) | 4.90 lbs |
| Environmental | |
| Operating Temperature | 32 – 95 °F (0 – 35 °C) |
| Operating Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| Certifications | |
| Safety | UL1363 |
| UL1449 | |
| CSA C22.2 | |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | Limited Lifetime |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $150,000 |
