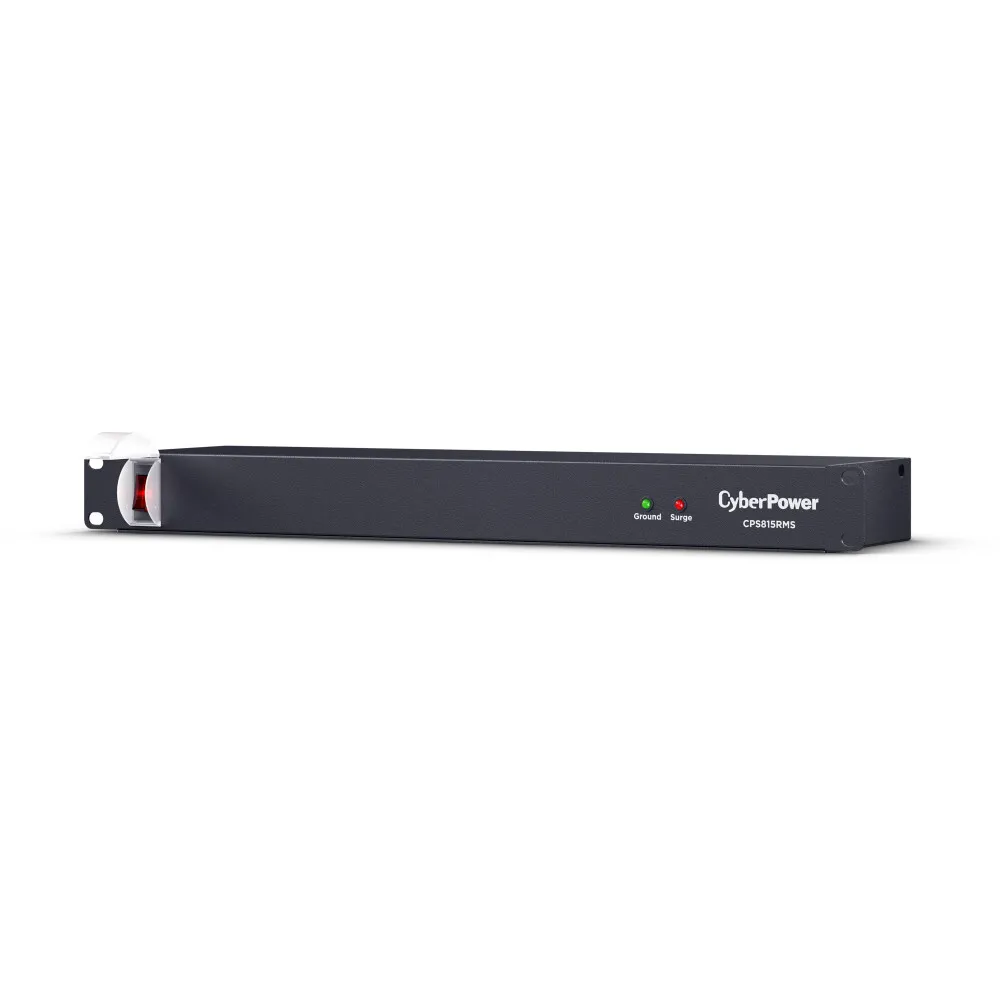

Cyber Power - CPS815RMS - 1800 J, 125 V, 8 NEMA 5-15R (rear), 6 ft cord, 3 year warranty
Part number:
CPS815RMS
Price:
Engineered for the most demanding applications, the professional-grade Rackbar™ CPS815RMS safeguards systems and networking equipment by absorbing spikes in energy caused by storms and electrical power surges. Designed for network environments, the CPS815RMS also performs superbly for home office use, providing 1800 joules of protection, 15-Amp electrical capacity with circuit breaker, and 8 surge-protected outlets (rear). Industrial-grade metal housing keeps this Rackbar performing flawlessly. The CPS815RMS has a 1U racksize and can be mounted horizontally.
Features of the CPS815RMS include an EMI/RFI noise filter, industrial-grade metal housing, AC power cord (6 ft.). The CPS815RMS also comes with a three-year limited warranty.
Features:
- Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- EMI/RFI Noise Filter: Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
- LED IndicatorsProvides information about the model’s status: Power, Ground, and Surge.
- Power Management Features: Includes network-grade plugs and outlets, an AC power cord.
- Industrial-Grade Metal Housing: Prolongs model life with rugged casing made of impact-resistant material for maximum durability.
- Three-Year Limited Warranty: Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 6 ft (1.8 m) |
| Input Plug Type | NEMA 5-15P |
| Maximum Input Current | 15A |
| Nominal Input Voltage | 125 VAC |
| Plug Style | Straight |
| Switch | Lighted On/Off |
| Output | |
| Nominal Output Voltage | 125 VAC |
| Outlet Type | 8 – NEMA 5-15R |
| Outlets – Rear | 8 |
| Outlets – Total | 8 |
| Overload Protection | 15A |
| USB Charge Port | No |
| Surge Protection & Filtering | |
| Clamping Voltage | 600V (H-N, H-G, N-G) |
| EMI/RFI Filtration | 150 KHz, 150 MHz, Yes |
| Maximum Surge Current | 90000 A |
| Maximum Surge Current H-G | 30000 A |
| Maximum Surge Current H-N | 30000 A |
| Maximum Surge Current N-G | 30000 A |
| Maximum Surge Voltage | 6000 V |
| Surge Suppression (Joules) | 1800 J |
| Physical | |
| Color | Black |
| Cord Retention Tray/Cord Organizers | Yes |
| Form Factors Supported | 1U Rackmount, 0U Vertical Rackmount, Undercounter Installation Supported |
| Material of Construction | Metal |
| Rack Height | 1U |
| Dimensions | |

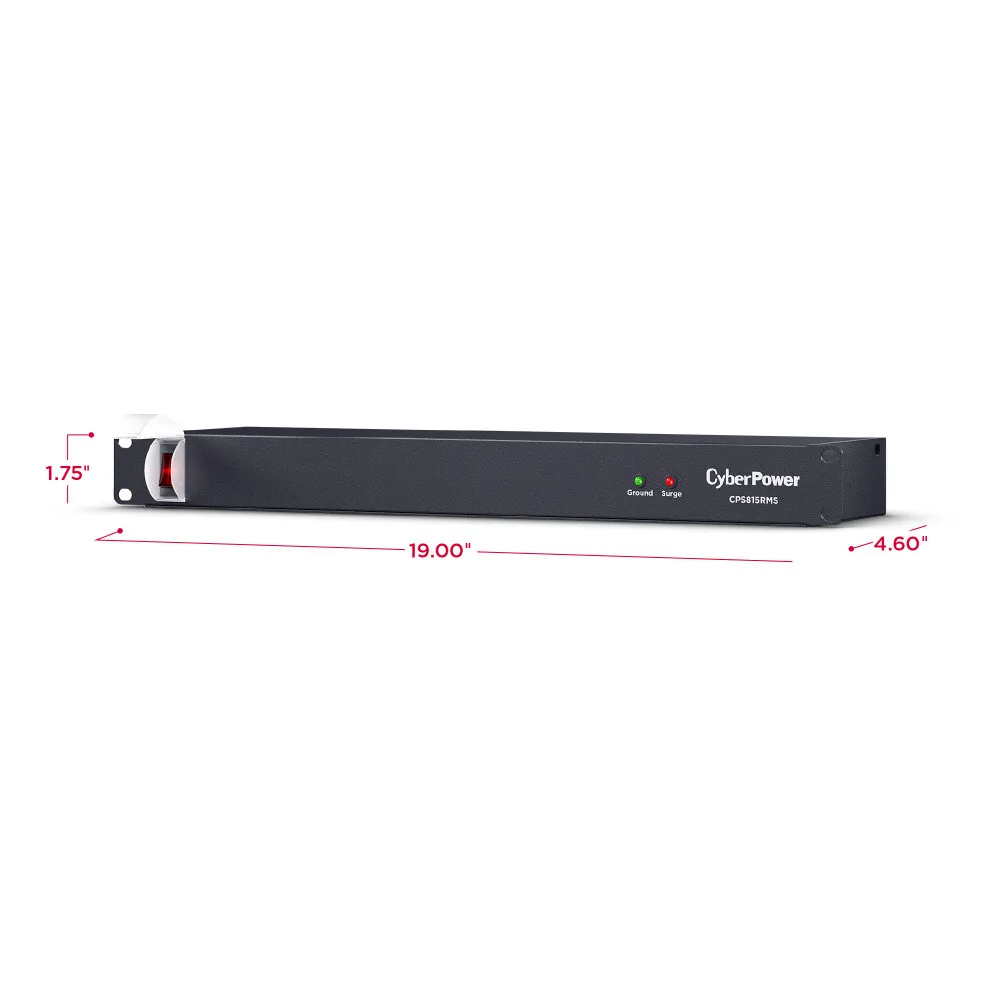

| Physical Dimensions – (WxHxD) (cm) | 48.26 x 4.45 x 11.68 (cm) |
| Physical Dimensions – (WxHxD) (in) | 19 x 1.75 x 4.6 (in) |
| Physical Dimensions – (WxHxD) (mm) | 483 x 44 x 117 (mm) |
| Physical Weight (kg) | 1.86 |
| Physical Weight (lb) | 4.1 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 2.04 |
| Shipping – Weight (lb) | 4.5 |
| Shipping Dimensions – (WxHxD) (cm) | 54.86 x 5.49 x 17.48 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 21.6 x 2.16 x 6.88 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 548.64 x 54.86 x 174.75 (mm) |
| Environmental | |
| Operating Elevation | 0 – 9843 ft (0 – 3000 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 95 °F (0 – 35 °C) |
| Storage Elevation | 0 – 49213 ft (0 – 14999 m) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL 1363, UL 1449 |
| Warranty | |
| CEG Amount | $0 |
| Connected Equipment Guarantee | No |
| Product Warranty | 3 Year Limited Warranty |
