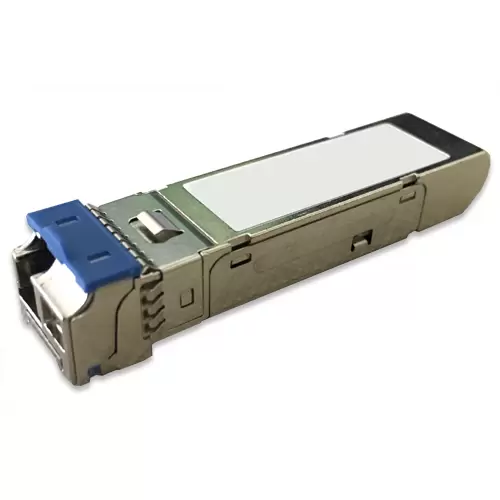

2.5G SFP Module

The MGB-2GLR2 small form-factor pluggable (SFP) transceiver module is specifically designed to work with PLANET products with 2.5G SFP interface that enables to build a high-performance 2.5Gbps Ethernet network over optical fiber for enterprises, telecoms and ISPs.

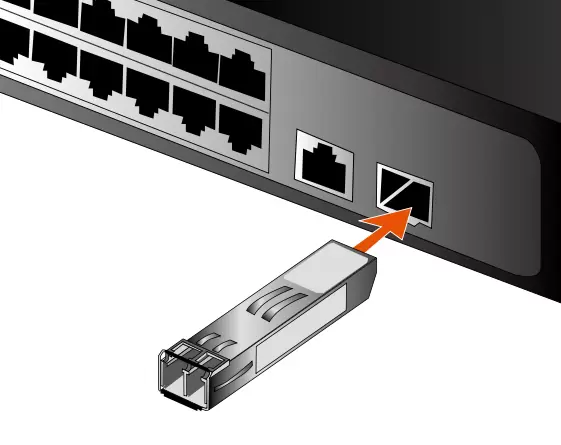

These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MGB-2G SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 300 meters (Multi-mode, LC) to up to 20 kilometers (Single-mode, LC).

Features:

• PHY Type: 2500BASE-X
• Fiber Type: Single Mode
• Connector: Duplex LC/UPC
• Wavelength: 1310nm
• Distance: 2km
• DDM Supported: Yes
• Operating Temperature: 0 ~ 70°C
