Serial Device Server

Cost-effective Solution for RS232/422/485 Serial-to-Ethernet Application

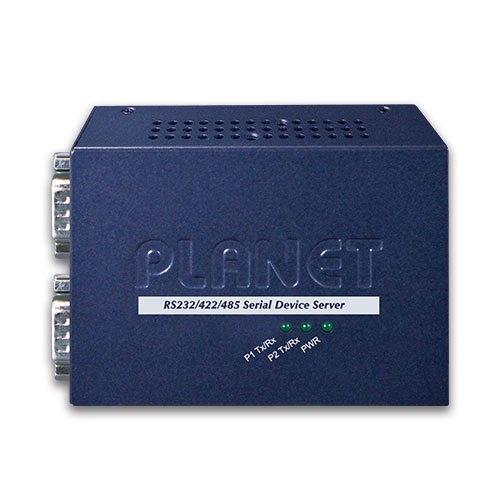

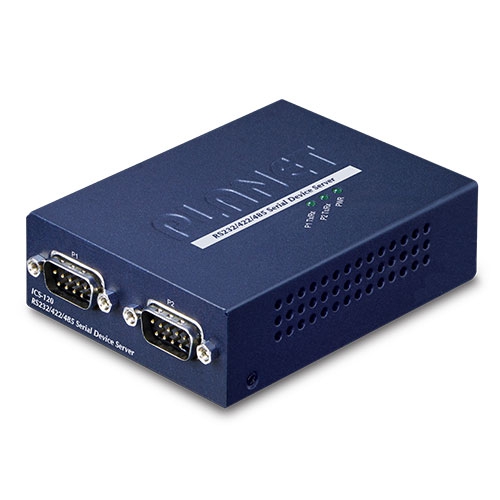

PLANET ICS-120 Serial Device Server is specially designed to convert two serial RS232/RS422/RS485 communication interfaces into Fast Ethernet networking to extend the network distance efficiently and inexpensively. There is one 10/100BASE-TX RJ45 port in the ICS-120, making connected serial equipment become IP-based, and able to also connect to a TCP/IP networking immediately. And its operating temperature ranging from -10 to 60°C is designed for all your network requirements. The ICS-120 is a time-saving and cost-effective solution for users and system integrators to quickly transform their serial devices into the Ethernet network with no need of replacing the existing serial devices and software system.

Remote Management

As the ICS-120 provides easy serial-to-Ethernet connectivity and connection to a TCP/IP network, the remote network system can thus be managed efficiently via its Web, telnet, and VCOM management interfaces. It supports both application and serial operation modes for alarm or IP address connection, which saves the administrator’s time in detecting and locating network problems without visual inspection of the cabling and devices. Multiple connection options are available for a large networking environment as well.

Features:

Serial Interface

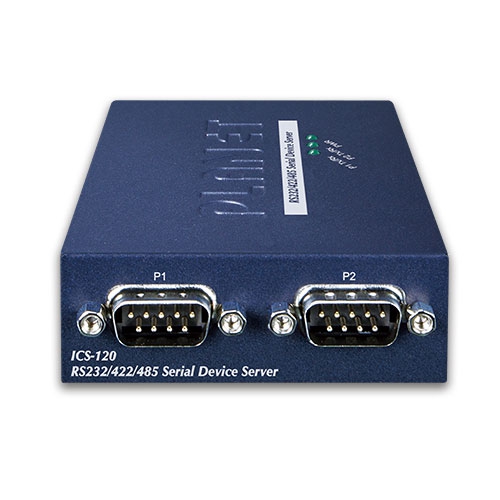

• Two DB9 interfaces that support RS232, 2-wire RS485, 4-wire RS485 and RS422 operation
• Asynchronous serial data rates up to 921600bps
• Data mode includes VCOM, RFC2217, TCP server, TCP client, UDP, remote pairing, Modbus converter server / client and serial telnet modes

Ethernet Interface

• 1-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function

Management

• IPv4 and IPv6 dual stack management
• Remote Management Interfaces
• IP NTP (Network Time Protocol)
• Standard TCP/IP interface and versatile operation modes
• Software Protocol supports ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
• Serial Operation mode selected via management interface
• Pair Connection mode for connecting two serial devices over a network
• Allows a maximum of 4 hosts to be accessed as TCP client mode
• Firmware upgrade via HTTP protocol
• Accessible IP security control to prevent illegal users
• Event notification
• DHCP client for IP address assignment
• PLANET Smart Discovery utility automatically finds the client devices on the netwok

Case and Installation

• Compact size for easy Installation

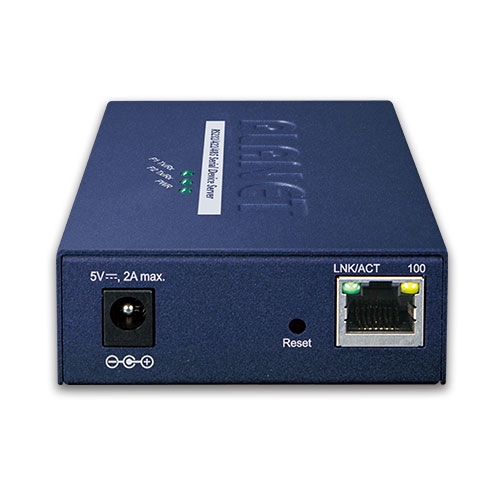

• External power adaptor 5V DC, 2A max.
• Supports 6000 VDC Ethernet ESD protection
• -10 to 60 degrees C operating temperature
• Supports extensive LED indicators for network diagnosis
• Reset button for resetting to factory default
