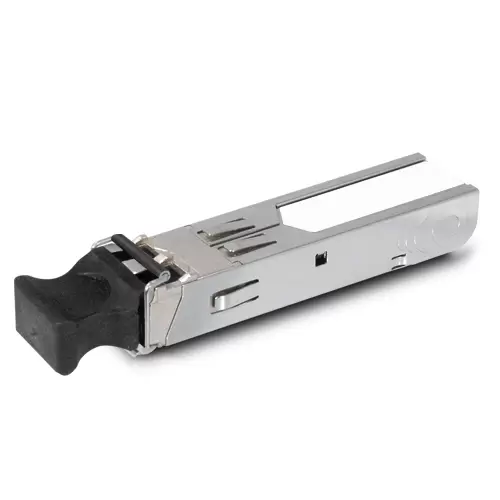

2.5G SFP Module

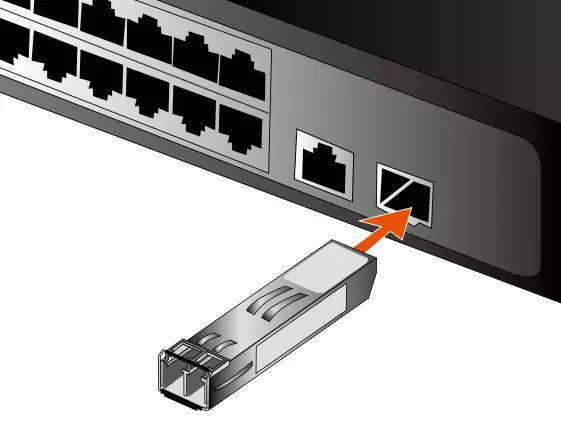

The MGB-2GTLR2 small form-factor pluggable (SFP) transceiver module is specifically designed to work with PLANET products with 2.5G SFP interface that enables to build a high-performance 2.5Gbps Ethernet network over optical fiber for enterprises, telecoms and ISPs. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MGB-2G SFP Mini-GBIC Gigabit Ethernet modules can be installed in PLANET Switch products with SFP mini-GBIC interface. The deployment distance can be extended from 300 meters (Multi-mode, LC) to up to 20 kilometers (Single-mode, LC). To meet the increasing demand of the Industrial Ethernet fiber solution, PLANET MGB-2GT 2500BASE-X transceivers can operate reliably in the electrically harsh, climatically demanding, and wide temperature range (-40℃ to 75℃) environment. The MGB-2GT transceivers provide easy and fast 2.5Gbps connection for PLANET wide temperature industrial equipment. The MGB-2GTLR2 by Planet Technology is a 2.5G SFP Fiber Transceiver (0 to 70°C).

Features:

• Package: SFP
• PHY Type: 2500Base-X
• Fiber Type: Single Mode
• Connector: Duplex LC/UPC
• Wavelength: 1310nm
• Max. Distance: 2km
• DDM Supported: Yes
• Operating Temperature: -40 to 75°C
• TAA Compliant
