Just “Plug and Watch” for a Quick Solution
PLANET FGSW-2622VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.

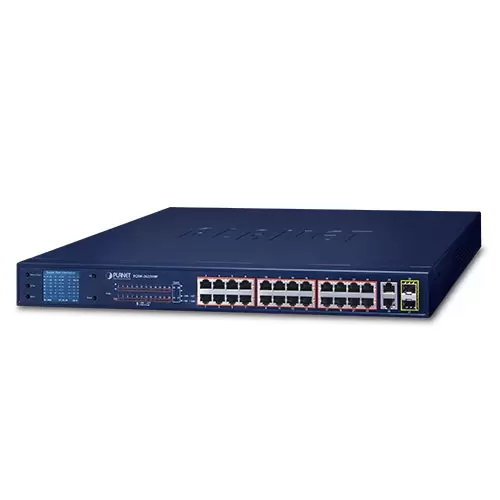

The FGSW-2622VHP 10/100BASE-TX Switch features 24 10/100BASE-TX ports with each 30-watt port, 2 Gigabit TP slots and 2 Gigabit SFP interfaces with inner power system. With a total PoE+ power budget of 300 watts and non-blocking data switching performance, the FGSW-2622VHP can fulfill the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks.
Smart and Intuitive LCD Control

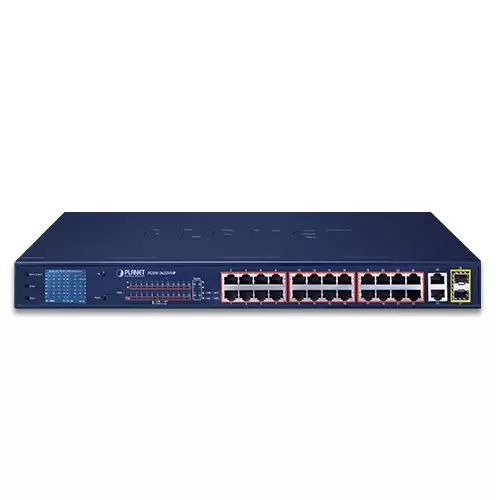

PLANET FGSW-2622VHP provides an intuitive color panel on its front panel that facilitates the Ethernet management and PoE PD management. They greatly promote management efficiency in large-scale networks for enterprises, hotels, shopping malls, government buildings and other public areas, and feature the following special management and status functions:
- PoE management and status
- Port management and status
- Switch mode: Standard, VLAN and Extend
- Budget and bandwidth control
- PD alive check
- Maintenance: Screen saver, fan control, factory default and save configuration
Standard, VLAN and Extend Operation Modes
PLANET FGSW-2622VHP provides Standard, VLAN and Extend operation modes. The FGSW-2622VHP operates as a normal IEEE 802.3af/at PoE Switch in the Standard operation mode. The VLAN operation mode features the port-based VLAN function that can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.
In the Extend operation mode, the FGSW-2622VHP operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the FGSW-2622VHP provides an additional solution for 802.3af/at PoE distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates ports so as to prevent broadcast storm and defend DHCP spoofing in the Extend operation mode.
Flexible Extension Solution
The two mini-GBIC slots built in the FGSW-2622VHP is compatible with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver, uplinked to the backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
Robust Protection
The FGSW-2622VHP provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Easy Installation and Cable Connection
As data and power are transmitted over one cable, the FGSW-2622VHP does not need a second cable and electrical outlets on the wall, ceiling or any unreachable place. Thus, it helps to lower the installation costs and simplify the installation effort. All the RJ45 copper interfaces of the FGSW-2622VHP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
The FGSW-2622VHP is a Plug and Play Power over Ethernet solution that provides quick installation, real-time PoE work status monitoring and immediate troubleshooting using its unique LCD display without any PC or software required.
Features:
- Ports: 24 10/100TX + 2 10/100/1000TX TP/SFP
- Type: Unmanaged
- PoE Ports: 24
- Standards: 802.3af/at
- Total PoE Budget: 300 Watts
- Power Consumption: Max. 330W/1125BTU
- Throughput: 6.54Mpps@64Bytes
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Hardware Specifications | |
| 802.3af/802.3at PoE Injector Port | 24 |
| 10/100BASE-TX MDI/MDIX Ports | 24 |
| 10/100/1000BASE-T MDI/MDIX Ports | 2 (Combo Port) |
| 1000BASE-X SFP/mini-GBIC Slots | 2 (Combo Port) |
| DIP Switch | 1 for standard mode/VLAN mode operation |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 8.8Gbps/non-blocking |
| Switch Throughput@64 bytes | 6.54Mpps@64bytes |
| MAC Address Table | 4K entries |
| Maximum Frame Size | 1536 bytes |
| Flow Control | IEEE 802.3x pause frame for full-duplex; back pressure for half-duplex |
| LED | System: Power (Green) 10/100BASE-TX RJ45 Interfaces: 10/100Mbps LNK/ACT (Green) PoE-in-Use (Orange) 10/100/1000BASE-T RJ45/SFP Interfaces: LNK/ACT (Green) 100/1000 (Green) |
| LCD Monitor | Total PoE budget Total PoE usage Per port PoE usage PD light load protection/PD over load protection Short-circuit protection(SCP) Low voltage alarm, high voltage alarm Refresh PoE status display every 10 seconds |
| Dimensions (W x D x H) | 233 x 440 x 44 mm (1U height) |
| Enclosure | Metal |
| Weight | 3.3kg |

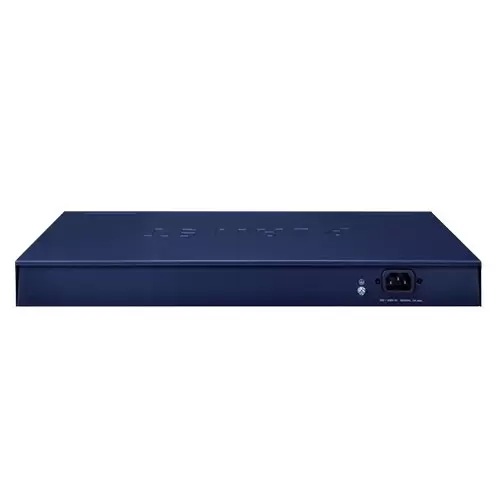

| Power Requirements | AC 100~240V, 50/60Hz, 5A max. |
| Power Consumption/Dissipation | Max. 330 watts/1125 BTU |
| Thermal Fan | 2 |
| ESD Protection | Contact Discharge of ±4KV DC Air Discharge of ±6KV DC |
| Surge Immunity | ±4KV |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, 300mA. max. 15.4 watts (IEEE 802.3af) Per port 54V DC, 600mA. max. 30 watts (IEEE 802.3at) |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 300 watts |
| Max. Number of Class 2 PDs | 24 |
| Max. Number of Class 3 PDs | 23 |
| Max. Number of Class 4 PDs | 11 |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
