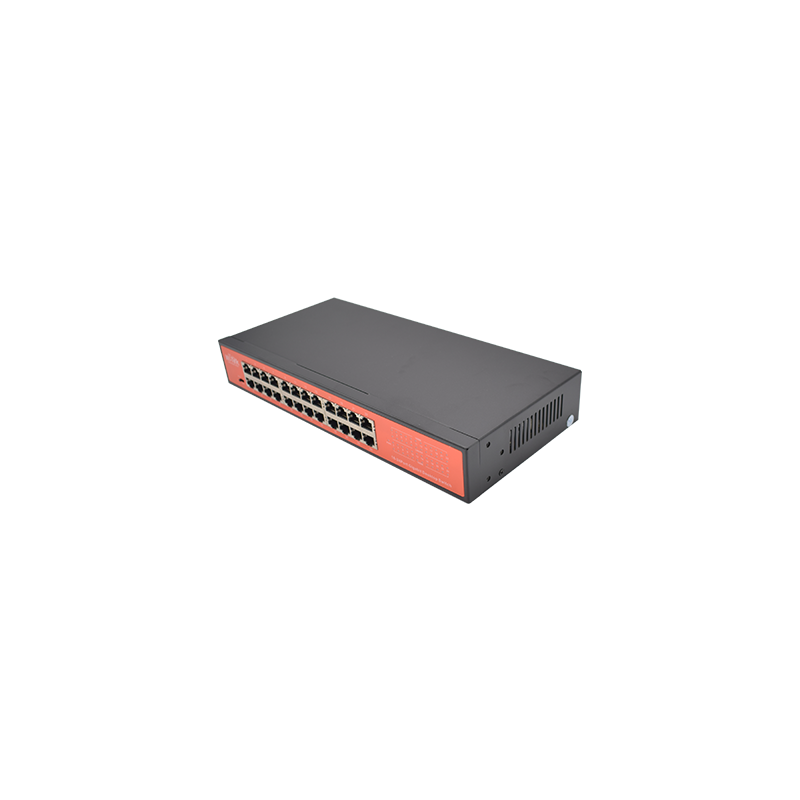

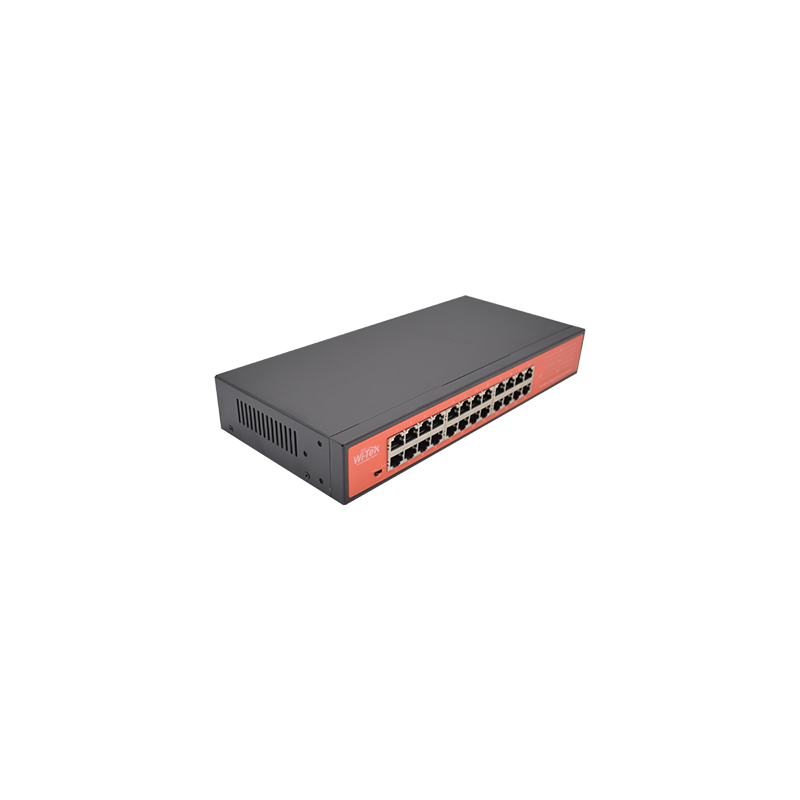

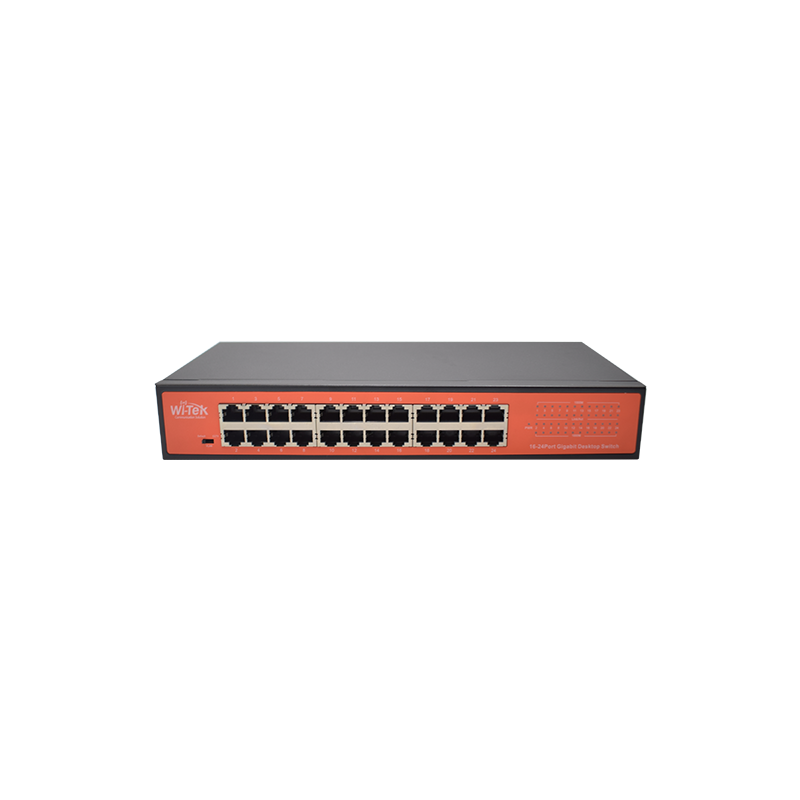

Wi-Tek - WI-SG124D - 24xGigabit Desktop Ethernet Switch
Part number:
WI-SG124D
Price:

Wi-Tek Gigabit Ethernet Switches provide an easy way to expand your wired network. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use. Featuring full duplex mode can send and receive data at a rate up to 1000Mbps, making it an ideal choice for expanding your high performance network (can not order more than 100pcs every time)



Full gigabit access, full-line speed forwarding:

All ports support high-speed forwarding, user-flexibly flexible networking, to meet the needs of various scenarios networking, such as hotel, campus, factory dormitory and small and medium-sized enterprises.



Plug and play, no configuration required:

A plug-and-play design lets administrators quickly connect the switch to devices with no hassles, no technician needed. Autonegotiation on each port senses and adjusts the link speed of a network intelligently to ensure an overall boost in performance and reliability. Convenient for wall-mounted, desktop and rack installations.



Environmentally friendly with your Ethernet:

Wi-Tek Gigabit Ethernet Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length.



Features:

  • 24 100/1000Mbps RJ45 Ethernet ports
  • Plug and play, zero configuration
  • Supports desktop or wall mount replacement
  • Smart DIP Switch: Port VLAN mode, video priority mode
  • Energy efficient design compliant with IEEE802.3az
  • Silent operation ideal for noise sensitive environment
HARDWARE FEATURESWI-SG124D
StandardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p
Interface24 100/1000Mbps RJ45 Ports
Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

DIP SwitchDefault/VLAN/CCTV
Fan QuantityFanless
Exchange Capacity48G
Packet Forwarding Rate35.7Mpps
Mac Address Table8K
Power AdapterAC IN: 110-240V
Packet Buffer Memory12Mb
Jumbo Frame10240 Bytes
Port VLANYes
OTHERS
CertificationCE, FCC, RoHS
Package Dimension380×215×95 mm
Switch Dimension305×140×45 mm
Gross Weight1.67kg
Net Weight1.17kg
Package Contents

1 × Gigabit Switch

1 × Power Cord

1 × Quick Installation Guide

Working Temperature-10℃~55℃
Storage Temperature-40℃~70℃
Working Humidity

10%~90% RH

non-condensing

Storage Humidity5%~90% RH non-condensing
Name
Description
Size
Downloads
File
Quick Guide
0.6mb
