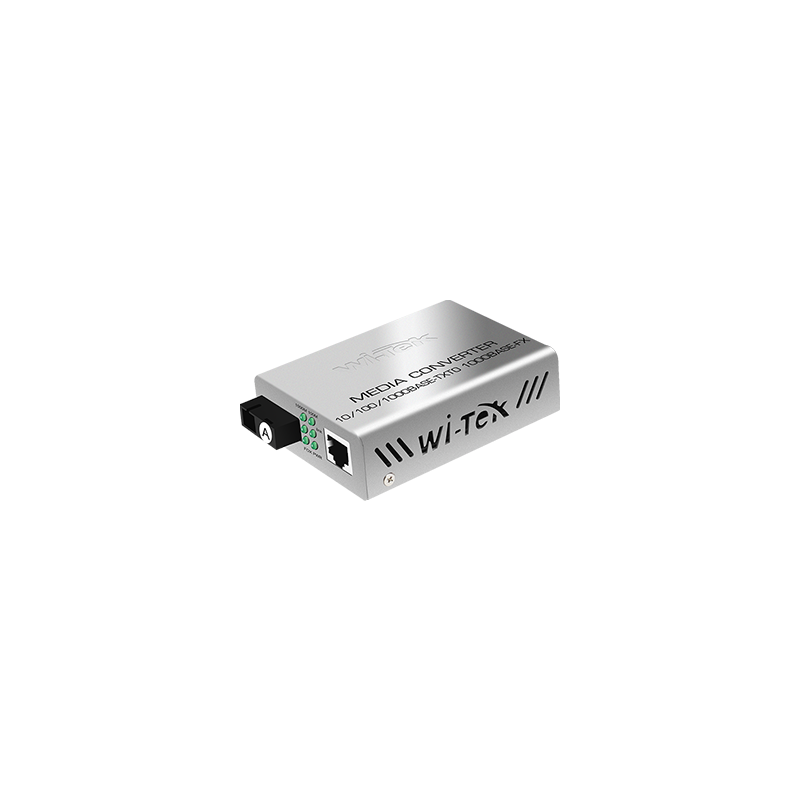

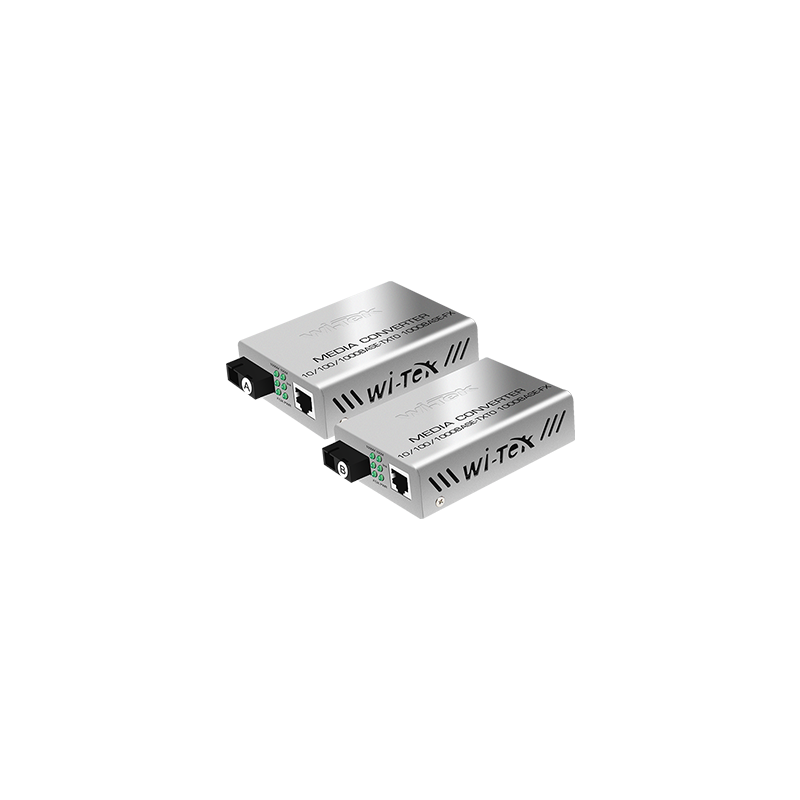

Wi-Tek - WI-MC101G - 25KM 1000Mbps Single Fiber Optic Media Converter (Sell in Pair)
Part number:
WI-MC101G
Price:

Power-over-Ethernet (PoE) media converters provide reliable and cost-effective fiber distance extension to PoE-powered devices. PoE media converters can power devices like IP phones, videoconferencing equipment, IP cameras and Wi-Fi devices over UTP cabling.



Flexible Selections of Distance and Speed:

A wide range of media converters are available, offering different maximum transmission distances of between 2 km to 20km. Different speeds provide flexible deployment options.



Stable Network Transmission:

The stability of fiber transmission guarantees our stable monitoring of sensitive areas and point-to-point connections.



Innovative Combination of PoE and Fiber:

The PoE output port of media converter provides a direct data and power connection to the IP camera, making remote camera deployment easier and more convenient.



Features:

  • 1*1000Mbps SC Port
  • 1*1000Mbps Ethernet Port
  • Wave Length: 1310nm Tx/1550nm Rx
  •  Media: Single-mode Fiber
  • Transmit Range: 25km
  • Power Supply: 5V/1A
  • Unamanaged accessories, easy to use

Model

WI-MC101G

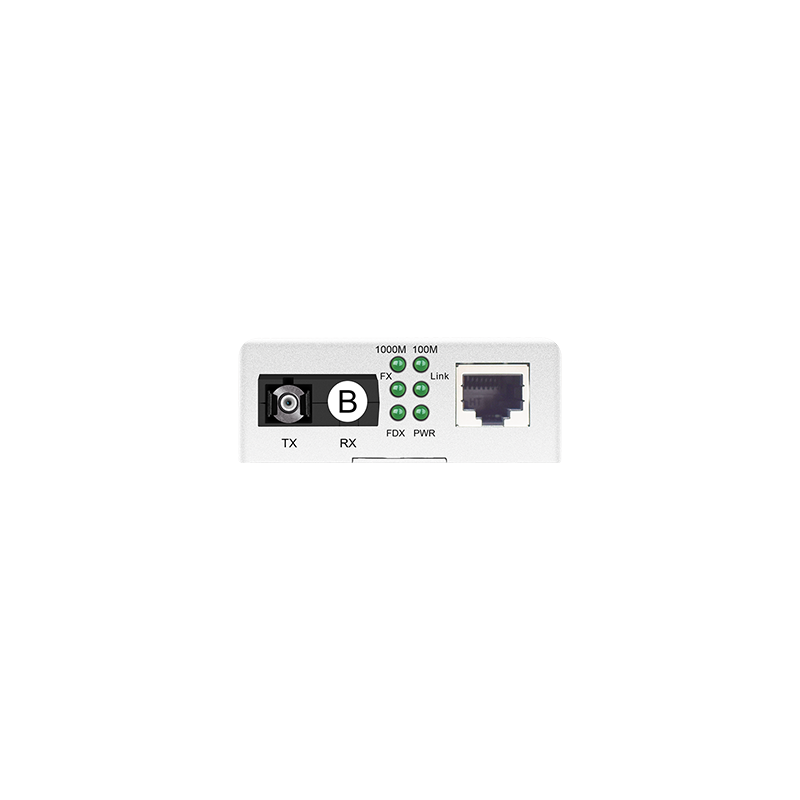

Interface

1*1000Mbps SC Port

1*1000Mbps Ethernet Port

Wave Length

1310nm Tx/1550nm Rx

Media

Single-mode Fiber

Transmit Range

25km

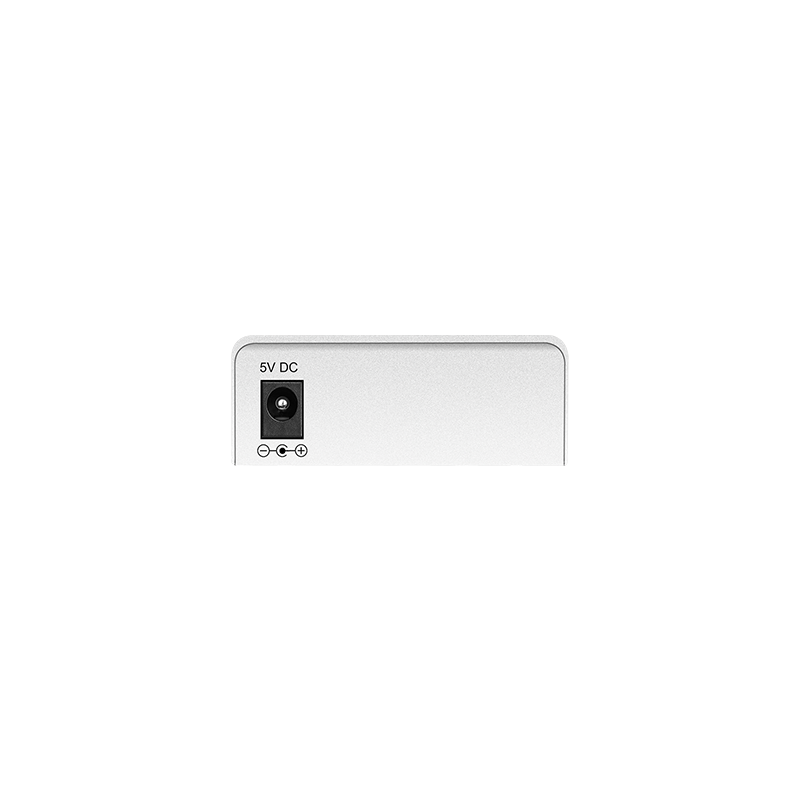

Power Supply

5V/1A

Dimensions

94*73*27 mm

Application

Indoor

OTHERS

Certification

CE, FCC, RoHS

Package Contents

2x Media Converter

2 x Power Adapter

1 x Warranty Card

Environment

Operating Temperature: 0℃~40℃ (32~104)

Storage Temperature: -40℃~70℃ (-40~158)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Name
Description
Size
Downloads
File
Quick Guide
0.7mb
