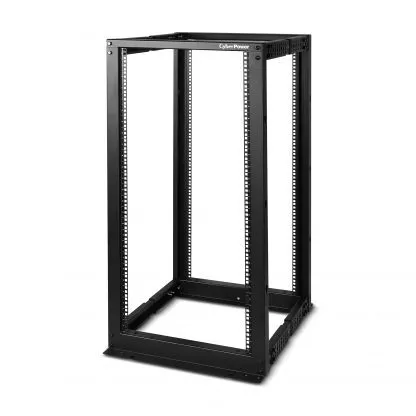

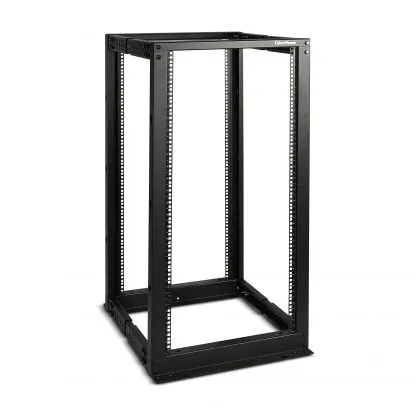

Cyber Power - CR25U40001 - 25U 19" 4-post Open Frame Rack, 600mm Wide, 22"-40" Depth Adjustable, Black, 1323lbs (600kg) Loading Capacity, Ships Knock-down, 5 year Warranty
Part number:
CR25U40001
Price:
The CR25U40001 4-post rack can be customized with compatible accessories to meet specific requirements. The rack ships knock-down; assembly is required. It is covered by a 5-year limited warranty.
Features:
- Rack Mounting Compatibility: The CR25U40001 is guaranteed compatible with all EIA-310 compliant 19″ equipment.

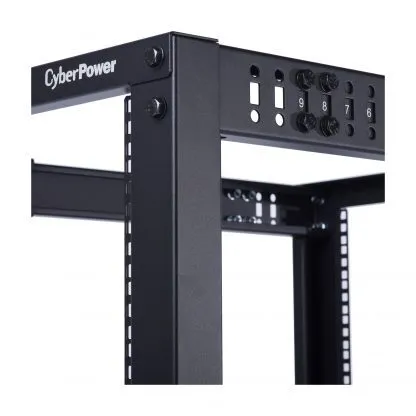

- Adjustable Rack Angles: Vertical rack angles can be adjusted in 1″ increments for mounting depth requirements from 22 to 40 inches. Depth index numbering ensures quick and consistent rail placement. U rack units are numbered front and back for easy equipment installation.
- Designed for Full Loading Stability: High-precision frame design and heavy gauge mounting rails provide a static load rating of 1,323 lbs.
- Integrated Electrical Grounding: Connections are located on the frame for facility grounding.
| Physical | |
| Rack Height | 25U |
| Color | Black RAL 9005 powder coat paint |
| Rack Angle Mounting Hole Type | Square Mounting Holes |
| Number of posts | 4 |
| Weight Capacity – stationary load (lbs) | 1323 |
| Weight Capacity – stationary load (kg) | 600 |
| Max. Mounting Depth (in) | 40 |
| Max. Mounting Depth (mm) | 1016 |
| Min. Mounting Depth (in) | 22 |
| Min. Mounting Depth (mm) | 558.8 |
| Max. Dimensions (WxHxD in) | 23.6 x 47.8 x 41 |
| Max. Dimensions (WxHxD mm) | 600 x 1215 x 1049 |
| Min. Dimensions – WxHxD (in) | 23.6 x 47.8 x 23.5 |
| Min. Dimensions – WxHxD (mm) | 600 x 1215 x 592 |
| Net Weight (lbs) | 57.6 |
| Net Weight (kg) | 26.1 |
| Shipping Packaging Type | Knock down |
| Shipping Dimensions (WxHxD) (in) | 7.3 x 5.9 x 60.6 |
| Shipping Dimensions (WxHxD) (mm) | 18.5 x 15.0 x 154.0 |
| Shipping Weight (lbs) | 65.9 |
| Shipping Weight (kg) | 29.9 |
| Special Features | |
| Numbered Rack Units | Yes |
| Leveling Feet | Included |
| Rolling Casters | Optional |
| Cable Management | Toolless Mounting Slots and Cable Rings Included |
| PE Grounding Point | Yes |
| Certifications | |
| Approvals | DIN41491, DIN41494, EIA/ECA-310-E, IEC-60297-3-100, RoHS |
| Warranty | |
| Product Warranty | 5 Years Limited |
