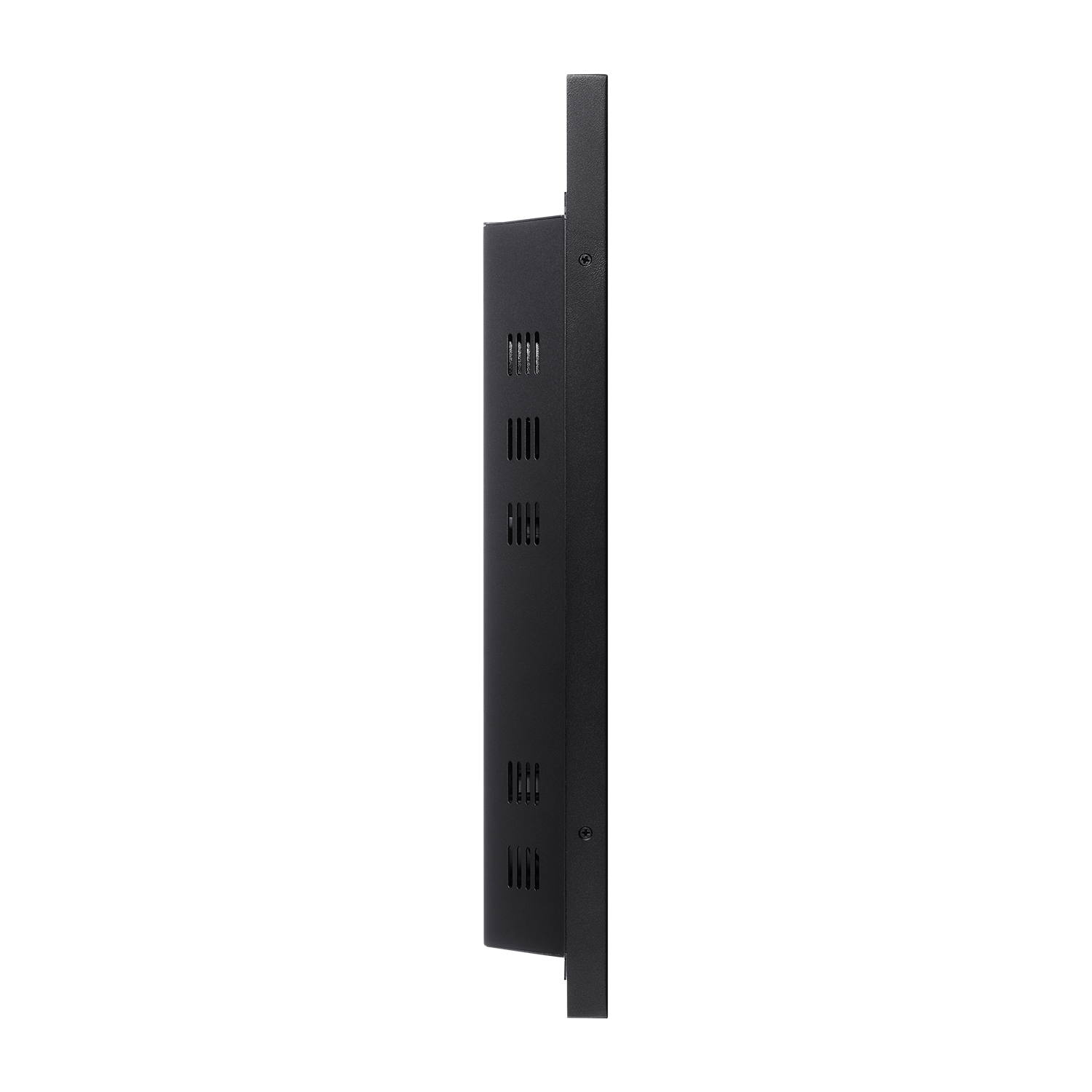

Hanwha - SMT-2721PV - 27” AI Enabled IP Public View Monitor
Part number:
SMT-2721PV
Price:

27” AI Enabled IP public view monitor (AI PVM),1080p (1920 x 1080 60Hz), HDMI (x2), Ethernet, 16:9 Aspect Ratio, Built-in speaker (2W x2), Face Detection for Visual Deterrence, AI Analytics, Customizable Banner Overlay Messages, Built-In 2MP IP Camera, 3.06mm Fixed Lens (107.7" H, 59.0V), 120dB WDR, H.265/H.264/MJPEG, Slide Show & Live Video, Micro SD/SDHC/SDXC, VESA Compatible (100x100 / 200x100 / 200x200), Black Cabinet, Hallway View Mode, Portrait and Landscape Display Support, HPoE 802.3bt, DC 24V. ***Power adapter not included***



Features:

  • 2MP AI Camera, f1.6
  • SUNAPI/Onvif Profile S/G/T/M
  • AI Object Classification and Analytics
  • Motion and event activated LED and audio alarm
  • Landscape and Portrait modes
  • Face Detection box
  • Image Slide Show (No additional storage is required)
  • Customizable text overlay with default "Recording in progress“ message
  • On-screen custom logo image
  • Monitor management via WebUI (Power On/Off/Scheduling, Banner etc.)
  • Steel cabinet
  • Dual power HPoE and DC24V (adapters are not included)

* DC 24V Power Adapter (SPU-60240), HPoE Injector (SPO-8315)

AlarmAlarm I/OInput 1ea / Output 1ea
NetworkEthernet1 RJ-45 10/100BASE-T,
GeneralEdge StorageMicro SD/SDHC/SDXC 1slot 256GB
On Screen Display
FunctionsVESA™ DPM Compatible
LanguageEnglish, Spanish, French
General
ElectricalInput VoltageDC24V,  HPOE 802.3bt
Power Consumption31W
EnvironmentalOperating Temperature0 ~ +40°C (+32°F ~ +104°F)
Operating Humidity10% ~ 80% (non-condensing)
MechanicalDimensions without Stand (WxHxD)619mm(W) x 405mm(H) x 58mm(D)
Weight8.5kg
Cabinet ColorBlack
VESA Mounts InterfaceVESA 100 x 100mm, 200 x 100mm, 200 x 200mm
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Quick Guide
0.3mb
File
CAD_SMT-2721PV_240702
0.2mb
