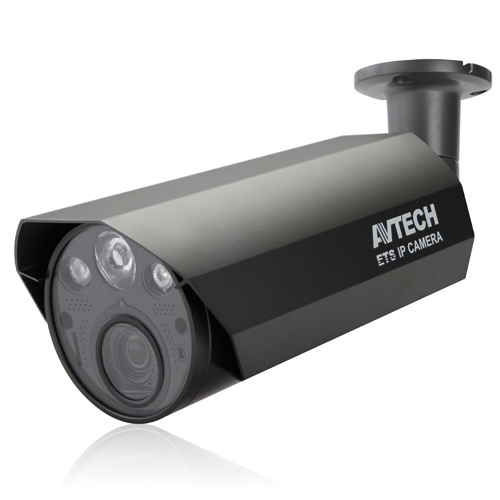

2MP 10X Zoom Vari-focal IP Camera
Features:
- Zoom lens of f5.0 ~ 50mm with 10x optical zoom, 16x digital zoom and auto focus, suitable for various monitoring environments
- Free P2P Cloud EaZy Networking -- Cloud EaZy Networking available to connect this device to Internet automatically in three steps with our free mobile app,
EagleEyes.
-- The Buddy feature to share the device
access permission to other people.-- Device login / out notifications reported.
- Line in / out jacks available for audio transmission
- Smart Light Control to dynamically adjust image performance for clear and accurate images
- Solid Light series featuring better overexposure prevention (Advanced Smart
- Light Control), automatic adjustment of image brightness, and longer lifetime of LEDs
- POE (Power-over-Ethernet) support to eliminate the use of power cables and reduce installation costs
- ONVIF ( ) standard supported to simplify system integration
- Waterproof design on the Ethernet cable connector
- Remote Surveillance
-- Fully compatible with iOS and Android
devices, and Internet Explorer on - Windows operating system
-- Free PC program, CMS Lite, for 32CH
devices monitoring on Windows operating
system
-- Push Video available on your iOS and - Android devices
Network
LAN Port | YES |
LAN Speed | 10/100 Based-T Ethernet |
Supported Protocols | DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP,IPv4/IPv6, |
Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP | |
| |
ONVIF Compatible | YES (Profile S) |
Number of Online Users | 10 |
| (1) Multiple user access levels with password |
Security | (2) IP address filtering |
| (3) Digest authentication |
| (1) Internet Explorer on Windows operating system |
Remote Access | (2) CMS Lite, 32CH CMS software for Windows operating system |
| (3) EagleEyes on iOS & Android mobile devices |
Video |
|
Video Compression | H.264 (Main Profile) / MJPEG |
Resolution | 1920 x 1080 / 1280 x 720 / 720 x 480 / 352 x 240 |
Frame Rate | 30/25 fps |
Multiple Video Streaming | 4 (H.264, MJPEG) |
General |
|
Image Sensor | 1/2.8" SONY CMOS image sensor |
Min Illumination | 0.1 Lux / F1.8 (wide)~F3.2 (Tele), 0 Lux (LED ON) |
Electronic Shutter | 1/10,000~1/7.5 |
S/N Ratio | More than 48dB (AGC off) |
Lens | f5.0~50mm / F1.8 ~ 3.2, |
10x Optical Zoom, auto focus | |
| |
Viewing Angle | 1X: 58.8° (Horizontal) x 34.2° (Vertical) x 66° (Diagonal) |
10X: 6.35° (Horizontal) x 3.6° (Vertical) x7.25° (Diagonal) | |
| |
IR LED | 3 Units |
IR Effective Range** | Default: up to 50 meters |
IR Enhanced Mode: up to 70 meters | |
| |
IR Shift | YES |
Smart Light Control | YES |
White Balance | ATW |
AGC | Auto |
IRIS Mode | AI / Iris Priority |
WDR | YES |
POE | YES (IEEE 802.3af) |
External Alarm I/O | YES (1 input / 1 output) |
RAM | 20MB |
MicroSD Card Slot | YES (support up to 128GB microSD card) |
IP Rating | IP67 |
Startup Temperature | 0℃ ~ 40℃ |
Operating Temperature | -25℃ ~ 50℃ |
Operating Humidity | 90% or less relative humidity |
Power Source (±10%) | 12V / 1.5A |
Current consumption (±10%) | 340mA (LED off) / 970mA (LED on) |
Power Consumption (±10%) | 15.3W max (PoE) ; 15.3W max (PoN) ; 13W max (DC Adapter) |
Net Weight (kg) | 1.8 |
Audio |
|
Line in | YES (Mono) |
Line out | YES (Mono) |
