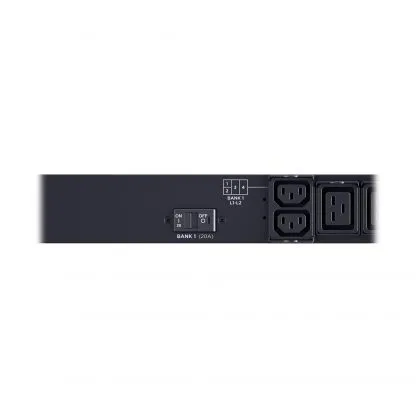

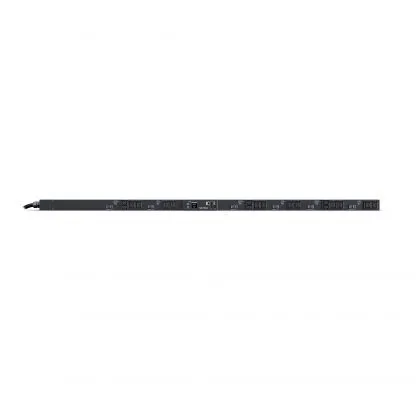

Cyber Power - PDU33110 - 3-Phase Monitored PDU, 200V-240V, 60A, 0U, (6) C13 + (12) C19, IEC-309 60A Blue (3P+E)
Part number:
PDU33110
Price:

Stay informed about your power with the CyberPower PDU33110 monitored 3-Phase PDU. Ideal for data centers and network closets, this unit provides power monitoring in real time over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection or locally by using the LCD.

The PDU33110 supports inputs between 200-240V and includes 18 IEC-320 outlets. Other features include an interactive digital display with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU33110 is protected by a three-year limited warranty.



Features:

  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
  • Remote and Local Monitoring
    Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
  • Automatic Event Notifications
    Provide immediate updates about power events via email, SMS text, or SNMP traps.

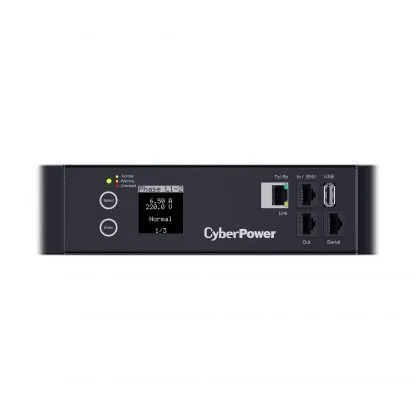

  • Digital Display
    Provides easy-to-read information about amperage, voltage, KW, IP address, and other PDU information.
  • Multi-color LCD Background
    User selectable background color on digital display allows for easy classification of PDU based on application. The LCD turns red when there is an alert.
  • CyberPower Management Console
    A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.
  • Switch-Free Design
    Safeguards against accidental power shut down.
  • Upgradeable Firmware
    Downloadable improvements (firmware updates) to programs that run the PDU.
  • Long Input Power Cord
    Reaches distant power sources, allowing the PDU to be placed where it’s needed.
  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
  • Network-Grade Plugs and Outlets
    Highly-durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
  • Three-Year Limited Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Input
Cord Length10 ft (3.0 m)
Derated Input Current48 A
Input Frequency Range50 Hz – 60 Hz
Input Plug TypeIEC-309 60A Blue (3P+E)
Maximum Input Current60A
Nominal Input Voltage200 – 240 VAC
Phase3 Phase
Output
Nominal Output Voltage200 – 240 VAC
Outlet Type6 – IEC-320 C13, 12 – IEC-320 C19
Outlets – # of Banks6
Outlets – Total18
Overload Protection20A X 6
Management & Communications
Environmental SensorOptional, via RJ45
Hardware Connection PortEthernet (RJ45), Serial (RJ45)
LCDMultifunction LCD
LED IndicatorsTx/Rx, LINK, Normal/Warning/Critical Status
Modular Expandability (Cascading)Yes, via RJ45
Monitoring LevelInput, Per Circuit
ProtocolsIPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD
Software (Free Download)PowerPanel® Business
Upgradeable firmwareYes
Physical
Adjustable Mounting Brackets1 set
ColorBlack
Cord Retention Tray/Cord OrganizersYes
Material of ConstructionMetal
Rack Height0U
Dimensions
Physical Dimensions – (WxHxD) (cm)5.59 x 179.07 x 5.59 (cm)
Physical Dimensions – (WxHxD) (in)2.2 x 70.5 x 2.2 (in)
Physical Dimensions – (WxHxD) (mm)56 x 1791 x 56 (mm)
Physical Weight (kg)8.71
Physical Weight (lb)19.2
Dimensions – Shipping
Shipping – Weight (kg)12.52
Shipping – Weight (lb)27.6
Shipping Dimensions – (WxHxD) (cm)21.59 x 203.45 x 16.0 (cm)
Shipping Dimensions – (WxHxD) (in)8.5 x 80.1 x 6.3 (in)
Shipping Dimensions – (WxHxD) (mm)215.9 x 2034.54 x 160.02 (mm)
Environmental
Operating Elevation0 – 11480 ft (0 – 3499 m)
Operating Relative Humidity0 – 95 % (non-condensing)
Operating Temperature23 – 131 °F (-5 – 55 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyUL60950-1, UL62368-1, FCC Class A
Warranty
Extended Warranty OptionWEXT5YR-PDU1B
Product Warranty3 Year Limited Warranty
