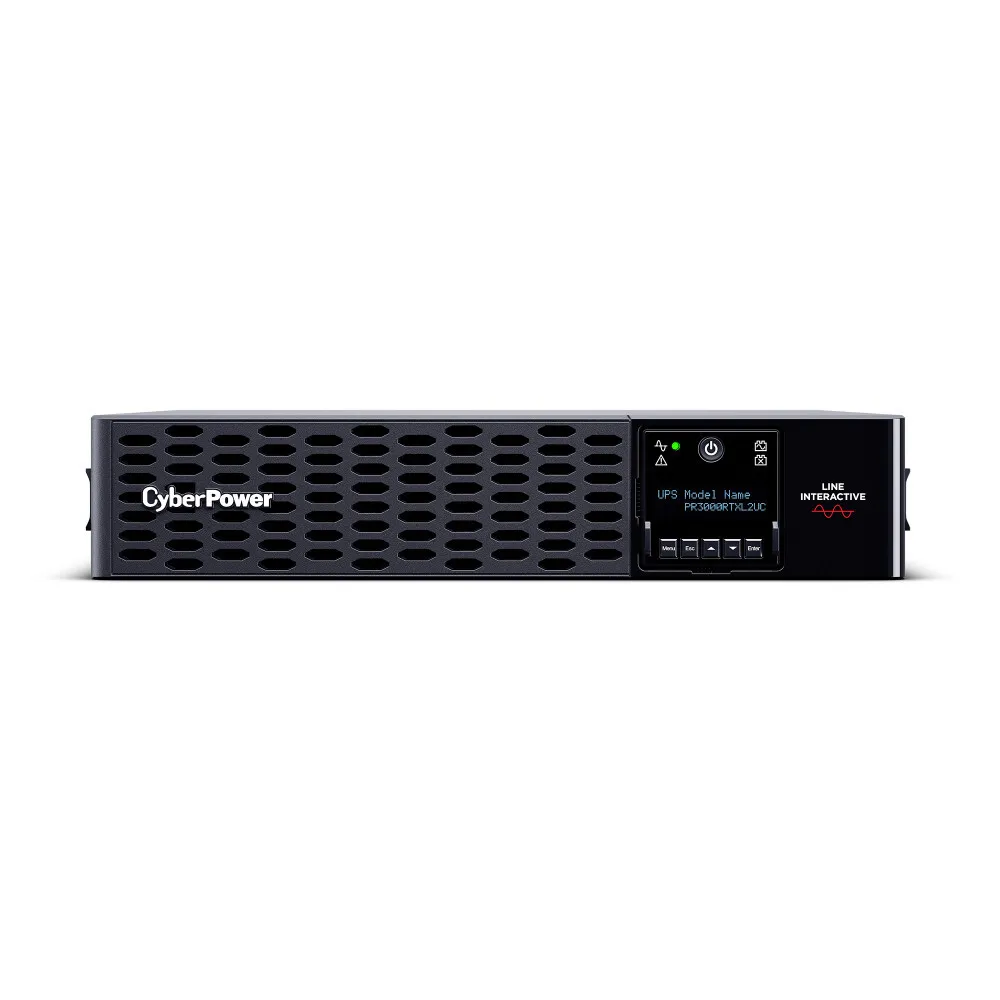

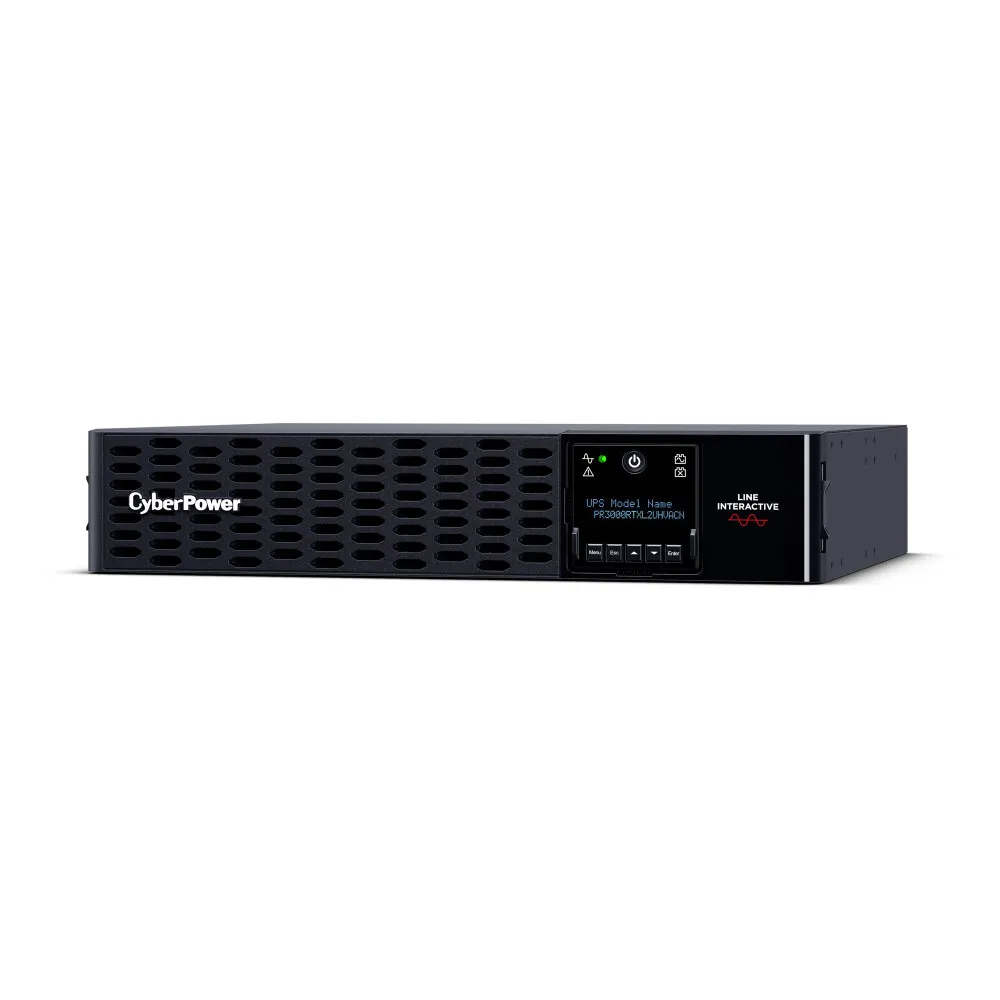

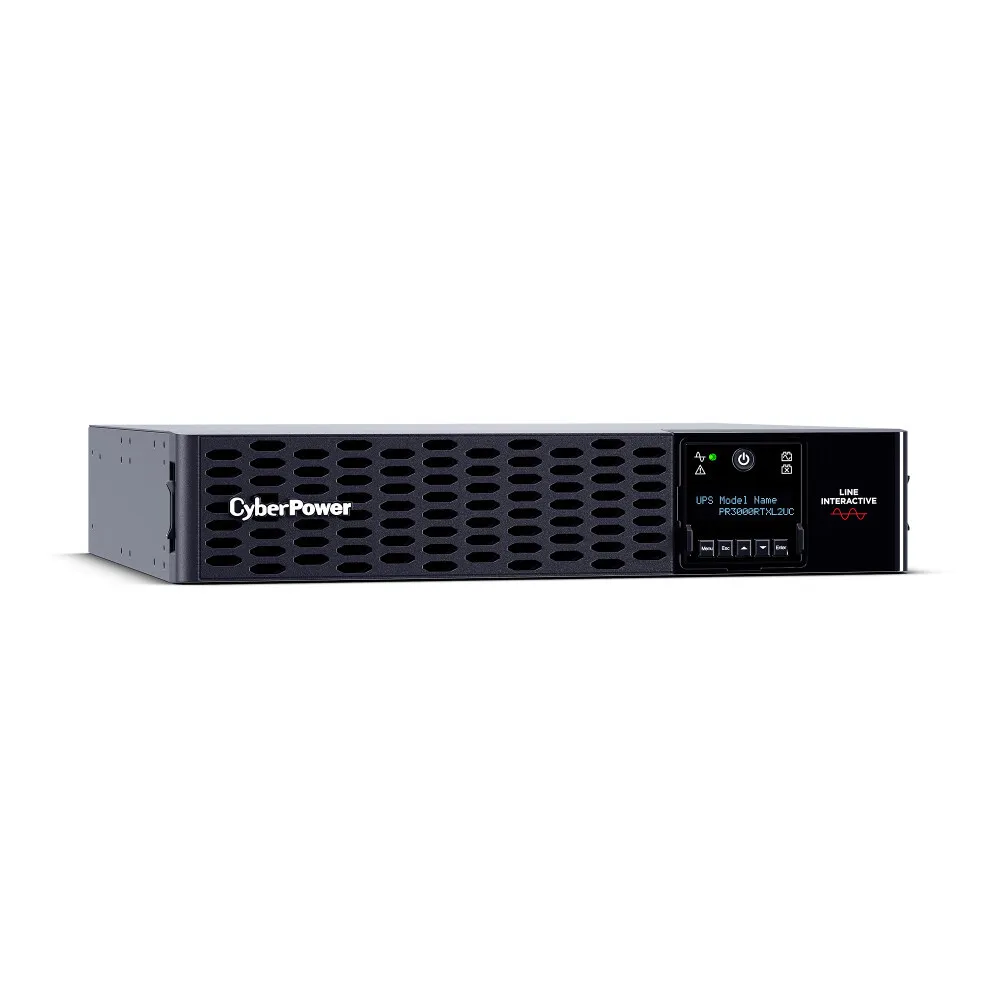

Cyber Power - PR3000RTXL2UC - 3000VA/3000W, Sine Wave, 2U, NEMA L5-30P, 10 Ft Cord, 8 NEMA 5-20R +1 NEMA L5-30R
Part number:
PR3000RTXL2UC
Price:
| GENERAL | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| ENERGY STAR® Certified | Yes |
| UPS Topology | Line Interactive |
| INPUT | |
| Adjustable Voltage Range | 70 - 155 VAC |
| Circuit Breaker | 30A |
| INPUT - CONT. | |
| Cord Length | 10 ft. (3.0 m) |
| Input Frequency Range | 47 Hz - 63 Hz |
| Input Plug Type | NEMA L5-30P |
| Input Voltage | 100 - 120 VAC |
| Input Voltage Range | 75 - 149 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Straight (Twist Lock) |
| OUPUT | |
| Automatic Voltage Regulation | Double Boost, Single Buck |
| On Battery Frequency | 50 Hz - 60 Hz +/- 1% |
| On Battery Voltage | 100/110/120/125 VAC +/- 5% |
| On Battery Waveform | Sine Wave |
| Outlet Type | 8 - NEMA 5-20R, 1 - NEMA L5-30R |
| Outlets - Battery & Surge Protected | 9 |
| Outlets - Critical Load | 4 |
| Outlets - Total | 9 |
| Output Power Factor | 1 |
| Overload Protection | On Battery: Internal Circuitry Limiting On Utility: Circuit Breaker |
| Typical Transfer Time | 4ms |
| VA | 3000 VA |
| Watts | 3000 W |
| BATTERY | |
| Battery Quantity | 4 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid |
| Extended Battery Module | BP48VP2U02 |
| Hot-Swappable | Yes |
| Replacement Battery Cartridge | RB1290X4J |
| Runtime at Full Load | 1.7 min. |
| Runtime at Half Load | 7 min. |
| Typical Recharge Time | 3 Hours |
| User-Replaceable Battery | Yes |
| SURGE PROTECTION & FILTERING | |
| EMI/RFI Filtration | Yes |
| Surge Suppression | 2430 J |
| MANAGEMENT & COMMUNICATIONS | |
| Audible Alarms | Battery Mode Low Battery Overload Overcharge Fault |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On Line Mode Battery Mode Fault |
| Management Cable | USB Cable EPO Cable |
| Serial Port | 1 Serial 1 Dry Contact |
SNMP / HTTP Remote Monitoring | Yes, with Optional RMCARD205 Built-in Cloud Monitoring. |
| Software (Free Download) | PowerPanel® Business |
| PHYSICAL | |
| Color | Black |
| Form Factor | Rack/Tower |
| Material of Construction | Metal |
| Rack Height | 2U |
| DIMENSIONS | |
Dimensions - Width/Height/Depth (cm) | 43.43 x 8.64 x 50.04 cm |
Dimensions - Width/Height/Depth (mm) | x 86 x 500 mm |
Dimensions - Width/Height/Depth (in.) | 17.1 x 3.4 x 19.7 in |
| Weight (kg) | 34.2 kg |
| Weight (lbs.) | 75.4 lbs. |
| SHIPPING DIMENSIONS | |
Shipping Dimensions - Width/Height/Depth (cm) | 55.88 x 26.67 x 60.96 cm |
Shipping Dimensions - Width/Height/Depth (mm) | 558.8 x 266.7 x 609.6 mm |
Shipping Dimensions - Width/Height/Depth (in.) | x 10.5 x 24 in |
| Shipping Weight (kg) | 40.5 kg |
| Shipping Weight (lbs.) | 89.3 lbs. |
| ENVIRONMENTAL | |
| Audible noise at 1m from surface of unit | 57.5 dBA |
| Online Thermal Dissipation | 192.5 BTU/hr |
| Operating Elevation | - 9,843 ft (0 - 3,000 m) |
| Operating Relative Humidity | - 95 % (non-condensing) |
| Operating Temperature | - 104 °F (0 - 40 °C) |
| Storage Elevation | - 49,213 ft (0 - 14,999 m) |
| Storage Relative Humidity | - 95 % (non-condensing) |
| Storage Temperature | - 113 °F (-15 - 45 °C) |
| CERTIFICATIONS | |
| Environmental | RoHS Compliant |
| Safety | UL1778 CSA C22.2 No 107.3 FCC Class A VCCI |
| WARRANTY | |
| CEG Amount | $400,000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U4B |
| Product Warranty | 3-Year Limited |
| GENERAL | |
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| ENERGY STAR® Certified | Yes |
| UPS Topology | Line Interactive |
| INPUT | |
| Adjustable Voltage Range | 70 - 155 VAC |
| Circuit Breaker | 30A |
| INPUT - CONT. | |
| Cord Length | 10 ft. (3.0 m) |
| Input Frequency Range | 47 Hz - 63 Hz |
| Input Plug Type | NEMA L5-30P |
| Input Voltage | 100 - 120 VAC |
| Input Voltage Range | 75 - 149 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Straight (Twist Lock) |
| OUPUT | |
| Automatic Voltage Regulation | Double Boost, Single Buck |
| On Battery Frequency | 50 Hz - 60 Hz +/- 1% |
| On Battery Voltage | 100/110/120/125 VAC +/- 5% |
| On Battery Waveform | Sine Wave |
| Outlet Type | 8 - NEMA 5-20R, 1 - NEMA L5-30R |
| Outlets - Battery & Surge Protected | 9 |
| Outlets - Critical Load | 4 |
| Outlets - Total | 9 |
| Output Power Factor | 1 |
| Overload Protection | On Battery: Internal Circuitry Limiting On Utility: Circuit Breaker |
| Typical Transfer Time | 4ms |
| VA | 3000 VA |
| Watts | 3000 W |
| BATTERY | |
| Battery Quantity | 4 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid |
| Extended Battery Module | BP48VP2U02 |
| Hot-Swappable | Yes |
| Replacement Battery Cartridge | RB1290X4J |
| Runtime at Full Load | 1.7 min. |
| Runtime at Half Load | 7 min. |
| Typical Recharge Time | 3 Hours |
| User-Replaceable Battery | Yes |
| SURGE PROTECTION & FILTERING | |
| EMI/RFI Filtration | Yes |
| Surge Suppression | 2430 J |
| MANAGEMENT & COMMUNICATIONS | |
| Audible Alarms | Battery Mode Low Battery Overload Overcharge Fault |
| Emergency Power Off (EPO) Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On Line Mode Battery Mode Fault |
| Management Cable | USB Cable EPO Cable |
| Serial Port | 1 Serial 1 Dry Contact |
SNMP / HTTP Remote Monitoring | Yes, with Optional RMCARD205 Built-in Cloud Monitoring. |
| Software (Free Download) | PowerPanel® Business |
| PHYSICAL | |
| Color | Black |
| Form Factor | Rack/Tower |
| Material of Construction | Metal |
| Rack Height | 2U |
| DIMENSIONS | |
Dimensions - Width/Height/Depth (cm) | 43.43 x 8.64 x 50.04 cm |
Dimensions - Width/Height/Depth (mm) | x 86 x 500 mm |
Dimensions - Width/Height/Depth (in.) | 17.1 x 3.4 x 19.7 in |
| Weight (kg) | 34.2 kg |
| Weight (lbs.) | 75.4 lbs. |
| SHIPPING DIMENSIONS | |
Shipping Dimensions - Width/Height/Depth (cm) | 55.88 x 26.67 x 60.96 cm |
Shipping Dimensions - Width/Height/Depth (mm) | 558.8 x 266.7 x 609.6 mm |
Shipping Dimensions - Width/Height/Depth (in.) | x 10.5 x 24 in |
| Shipping Weight (kg) | 40.5 kg |
| Shipping Weight (lbs.) | 89.3 lbs. |
| ENVIRONMENTAL | |
| Audible noise at 1m from surface of unit | 57.5 dBA |
| Online Thermal Dissipation | 192.5 BTU/hr |
| Operating Elevation | - 9,843 ft (0 - 3,000 m) |
| Operating Relative Humidity | - 95 % (non-condensing) |
| Operating Temperature | - 104 °F (0 - 40 °C) |
| Storage Elevation | - 49,213 ft (0 - 14,999 m) |
| Storage Relative Humidity | - 95 % (non-condensing) |
| Storage Temperature | - 113 °F (-15 - 45 °C) |
| CERTIFICATIONS | |
| Environmental | RoHS Compliant |
| Safety | UL1778 CSA C22.2 No 107.3 FCC Class A VCCI |
| WARRANTY | |
| CEG Amount | $400,000 |
| Connected Equipment Guarantee | Lifetime |
| Extended Warranty Option | WEXT5YR-U4B |
| Product Warranty | 3-Year Limited |
