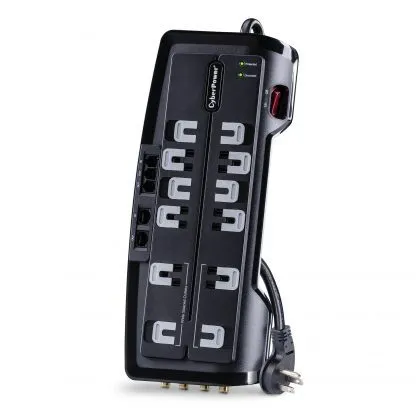

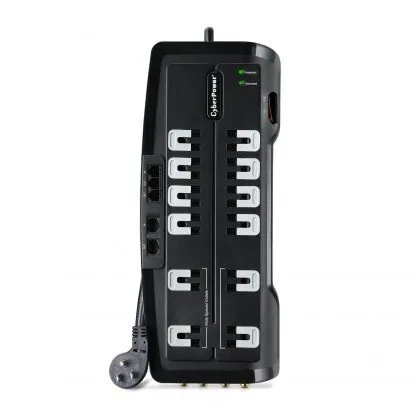

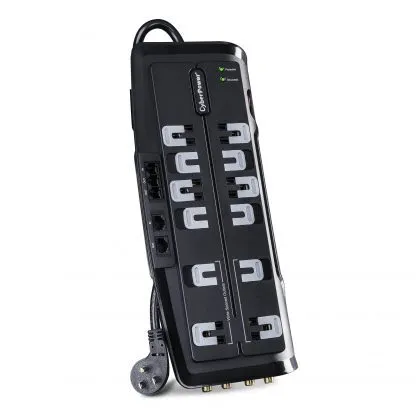

Cyber Power - CSHT1208TNC2 - 3150 J, 125 V, Nema 5-15P 45 Degree Off-Set Plug, 12 Nema 5-15R, 8 Ft Cord, Limited Lifetime Warranty
Part number:
CSHT1208TNC2
Price:

The Home Theater Surge Protector CSHT1208TNC2 provides 3150 joules of protection and 12 outlets to safeguard your home theater equipment from damage caused by electrical surges. Data line protection occurs with RJ45 ports for networking and RJ11 ports for telecommunication devices such as phones, faxes, modems, and DSL lines. Gold-plated RG6 coaxial connectors protect cable/satellite TV receivers and broadband modems.

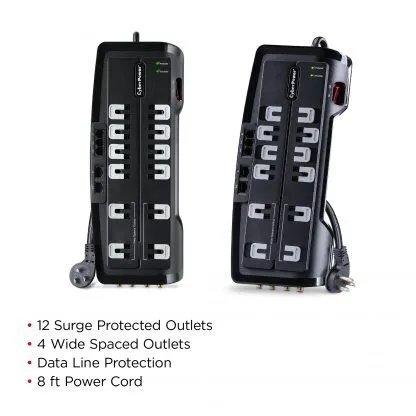

Features of the CSHT1208TNC2 include automatic shutdown, 12 surge-protected outlets (4 widely spaced to accommodate a transformer plug), a power cord (8 ft.), a right-angle plug with 45° off-set, LED status indicators, keyhole mounting slots, impact-resistant casing, metal oxide varistor (MOV) technology, and an EMI/RFI noise filter. This surge suppressor comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee.



Features:

  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Automatic Shutdown: Protects connected electronics with the integrated circuit breaker which automatically switches off in the event of an overload that exceeds the model’s ability to suppress the signal.
  • EMI/RFI Noise Filter: Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
  • Metal Oxide Varistor (MOV) Technology: Allows normal current to pass through the device, while diverting any surge/spikes through the ground circuit, to safeguard connected electronics and the surge suppressor.
  • LED Indicators: Light to indicate the model’s status: Protected and Grounded.
  • Transformer-Spaced Outlets: Accommodate transformer-based plugs without compromising the access of other outlets.
  • Cord Management System: Keeps cords neat and organized.
  • Keyhole Slots: Enable the model to be placed on a wall, under a desk, and in other configurations to optimize space and keep power cords out of the way.
  • Impact-Resistant Casing: Ensures maximum durability and prolongs the life of the model.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
  • Limited Lifetime Warranty: Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
Input
Circuit Breaker15 A
Cord Length8 ft (2.4 m)
Input Plug TypeNEMA 5-15P
Maximum Input Current15A
Plug StyleRight Angle – 45° Offset
Output
Outlet Type12 – NEMA 5-15R
Outlets – Total12
Outlets – Widely Spaced4
USB Charge PortNo
Surge Protection & Filtering
Attenuation43 dB
Clamping Voltage400V (H-N, H-G)
Coax Protection RG62 in
2 out
EMI/RFI Filtration150 KHz
100 MHz
Yes
Maximum Surge Current150000 A
Maximum Surge Current H-G30000 A
Maximum Surge Current H-N90000 A
Maximum Surge Current N-G30000 A
Maximum Surge Voltage6000 V
Network Protection RJ451 in / 1 out
Phone Protection RJ111-In / 2-Out
Response Time<1 Nanosecond
Surge Suppression (Joules)3150 J
Physical
ColorBlack
Cord ManagementYes
Form Factors SupportedKeyhole (Wall Mount or Under-counter Installation)
Keyhole Mounting SlotsYes
Material of ConstructionPlastic
Safety CoversYes
Dimensions
Physical Dimensions – (WxHxD) (cm)13.34 x 4.22 x 31.5 (cm)

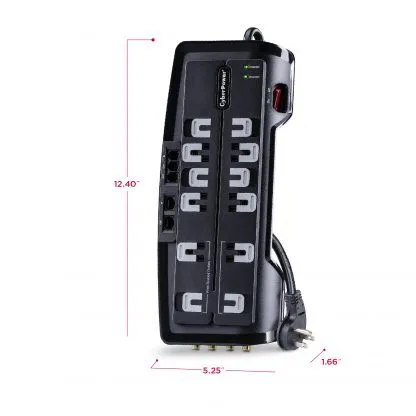

Physical Dimensions – (WxHxD) (in)5.25 x 1.66 x 12.4 (in)
Physical Dimensions – (WxHxD) (mm)133 x 42 x 315 (mm)
Physical Weight (kg)0.91
Physical Weight (lb)2
Dimensions – Shipping
Shipping – Weight (kg)1.13
Shipping – Weight (lb)2.5
Shipping Dimensions – (WxHxD) (cm)5.13 x 37.31 x 18.42 (cm)
Shipping Dimensions – (WxHxD) (in)2.02 x 14.69 x 7.25 (in)
Shipping Dimensions – (WxHxD) (mm)51.31 x 373.13 x 184.15 (mm)
Certifications
EnvironmentalRoHS Compliant
SafetyUL1363
Warranty
CEG Amount$150000
Connected Equipment GuaranteeLifetime
Product WarrantyLimited Lifetime Warranty
