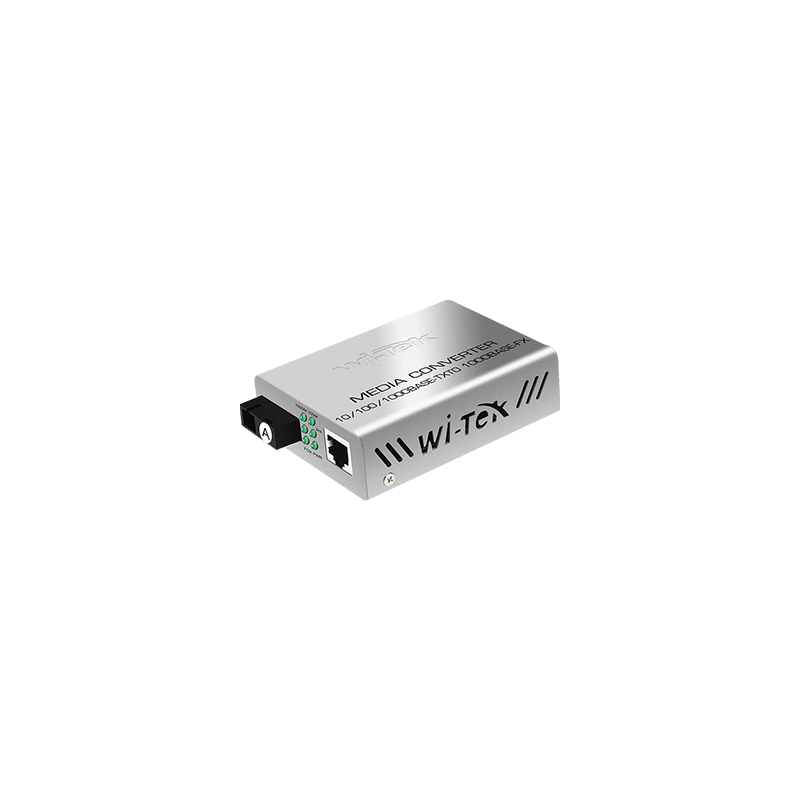

Wi-Tek - WI-MC103G - 3KM 1000Mbps Single Fiber Optic Media Converter(Sell In Pair)
Part number:
WI-MC103G
Price:

Power-over-Ethernet (PoE) media converters provide reliable and cost-effective fiber distance extension to PoE-powered devices. PoE media converters can power devices like IP phones, videoconferencing equipment, IP cameras and Wi-Fi devices over UTP cabling.



Flexible Selections of Distance and Speed:

A wide range of media converters are available, offering different maximum transmission distances of between 2 km to 20km. Different speeds provide flexible deployment options.



Stable Network Transmission:

The stability of fiber transmission guarantees our stable monitoring of sensitive areas and point-to-point connections.



Large Network Potential:

Allow users to integrate new equipment into an existing cabling infrastructure. In addition, they also increase the quality and strength of your network. In doing so, they give networks the ability to expand beyond their current capabilities.



Features:

  • 1*1000Mbps SC Port
  • 1*1000Mbps Ethernet Port
  • Wave Length: 1310nm Tx/1550nm Rx
  • Media: Single-mode Fiber
  • Transmit Range: 3km

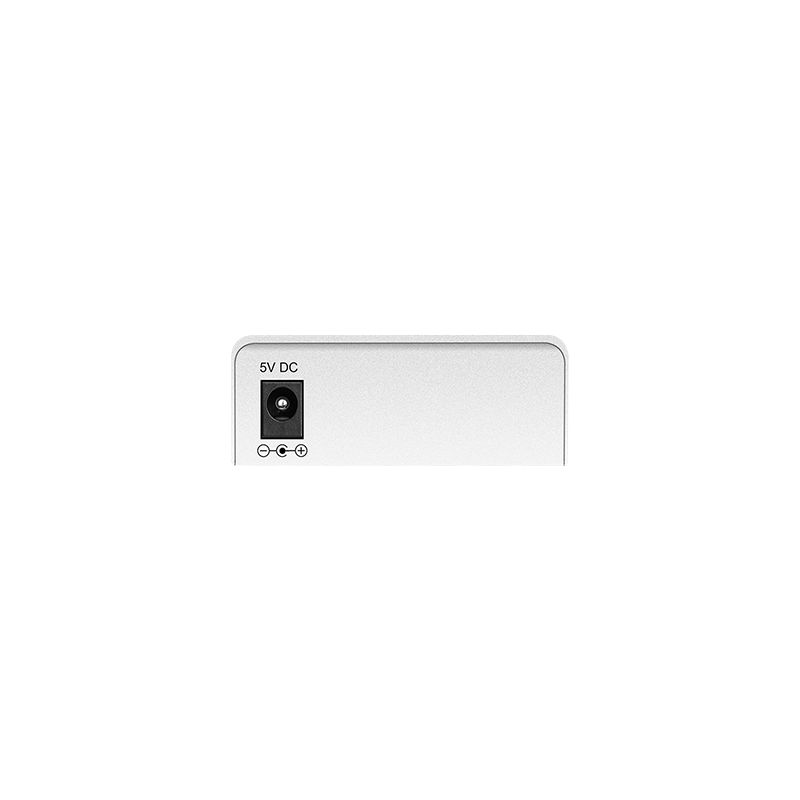

  •  Power Supply: 5V/2A
  • Unmanaged accessories, easy to use

Model

WI-MC103G

Interface

1*1000Mbps SC Port

1*1000Mbps Ethernet Port

Wave Length

1310nm Tx/1550nm Rx

Media

Single-mode Fiber

Transmit Range

3km

Power Supply

5V/2A

Dimensions

94*73*27 mm

Application

Indoor

OTHERS

Certification

CE, FCC, RoHS

Package Contents

2x Media Converter

2 x Power Adapter

1 x Warranty Card

Environment

Operating Temperature: 0℃~40℃ (32~104)

Storage Temperature: -40℃~70℃ (-40~158)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
