4-Port PoE Switch

Centralized Power Distribution for HD IP Surveillance System

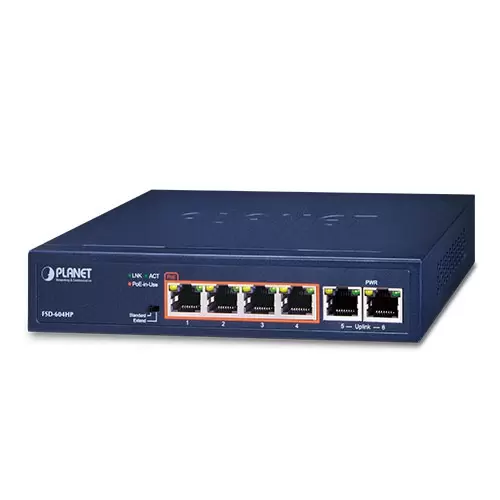

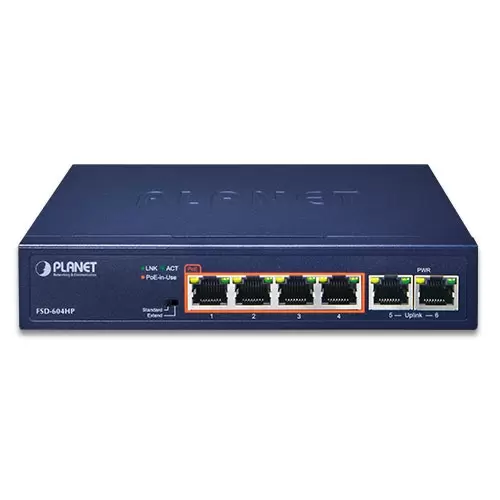

PLANET’s FSD-604HP Desktop Switch provides four 802.3at PoE+ ports that caters to small-scale IP surveillance networks at a lower cost. With dual 10/100BASE-TX uplink ports, the recorded HD video files from the 4 PoE IP cameras are saved in the 4-channel NVR system. Its surveillance software performs comprehensive security monitoring and manages the surveillance system in the local LAN or remote site via Internet.

The FSD-604HP’s advanced features are as follows:

• 4-port PoE, 60-watt PoE budget
• Two 10/100Mbps uplink ports
• Can extend distance of up to 250m in the extend mode
• 30-watt power output at speed of 10Mbps

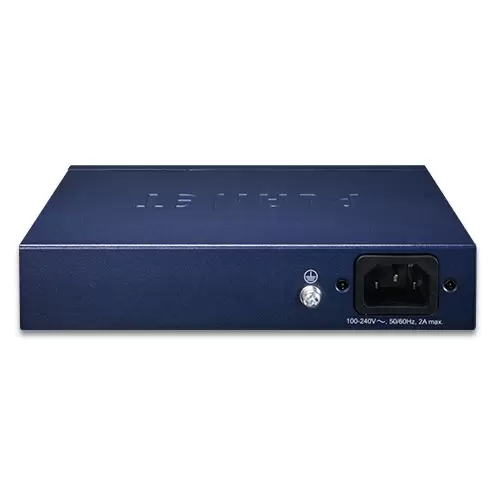

• Internal AC power, fanless design

Two 10/100Mbps Uplink Ports

The FSD-604HP comes with two uplink ports featuring 100Mbps transfer rate to ensure high-speed data and video transmission. The four PoE+ ports can be used to their full potential by connecting the surveillance system to the outdoor network.

Innovative Port-based VLAN Protection

The FSD-604HP features “Port-based VLAN Protection” allowing ports to be isolated from each other via one DIP switch. This can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.

Distance Extended for Transmission of Power and Data

The built-in solid DIP switch provides “standard” and “extend” operation modes. The FSD-604HP operates as a normal IEEE 802.at/af PoE Switch in the “standard” operation mode. The “extended” operation mode operates on a per-port basis in 10Mbps duplex mode but can support 30-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the FSD-604HP provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.

Robust Protection

The FSD-604HP provides contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protect users networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Environment-friendly, Fanless Design for Silent Operation

The FSD-604HP comes with a desktop-sized, compact metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the FSD-604HP is able to operate reliably and stably in any environment without affecting its performance. The deployment of PoE PDs with constant power feeding can be easily and quickly done.

Easy Cable Connection

With data switching and Power over Ethernet integrated into one unit, the FSD-604HP reduces cabling requirements and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords. With 4 PoE interfaces, the FSD-604HP is ideal for deployment of wireless access points, IP-based surveillance cameras, IP phones and door phones in any places easier, more efficient and more cost-effective.

Features:

• Ports: 6 10/100TX Shared 4 802.3af/at PoE
• Type: Unmanaged
• PoE Ports: 4
• Standards: 802.3af/at
• Total PoE Budget: 60W
• Power Consumption: Max. 63W/214BTU
• Throughput: 0.89Mppps@64Bytes
• Ethernet Extension: 250m in “extend” mode, up to 10Mbps
• Operating Temperature: 0 to 50°C
• TAA Compliant
