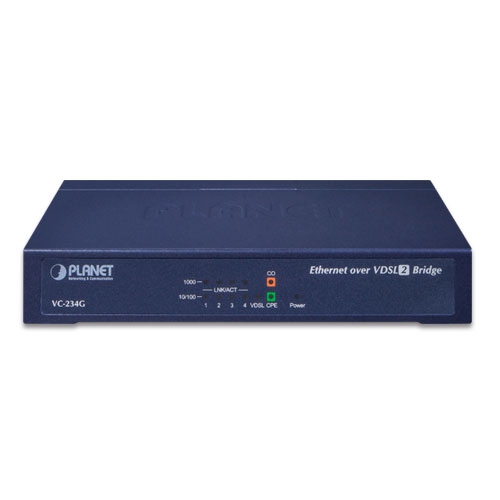

Ethernet to VDSL2 Bridge
The VC-234G, a high-performance 4-port Gigabit Ethernet-over-VDSL2 Converter, works well with telephone line networks with a symmetric (downstream/upstream) data rate of up to 190/190Mbps (G.INP, Sym, 8dB) over a distance of 300m and 20/12Mbps over a long distance of 1.4km.
High Performance Gigabit Ethernet over Phone Wire Solution
The VC-234G, a high-performance Gigabit Ethernet-over-VDSL2 Converter, works well with telephone line networks with a symmetric (downstream/upstream) data rate of up to 190/190Mbps (G.INP, Sym, 8dB) over a distance of 300m and 20/12Mbps over a long distance of 1.4km. It is based on the two-core networking technology, Gigabit Ethernet and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). The VDSL2 technology offers the fastest data transmission speed over the existing copper telephone lines without the need of rewiring.
With integrated support for the ITU-T’s new G.993.5 vectoring technology, the VC-234G works in conjunction with vectoring-enabled DSLAMs to remove crosstalk interference and improve maximum line bandwidth across the existing copper telephone infrastructure.
Implementing with Existing Telephone Copper Wires
The VC-234G is also a Long Reach Ethernet (LRE) Bridge providing four RJ45 Ethernet ports and two RJ11 phone jacks, in which one is for VDSL connection and the other one is for a POTS (Plain Old Telephone Service) connection. The VC-234G has a built-in POTS splitter to share the existing phone line with POTS; therefore, there is no need to replace the existing copper wiring. Just plug the VC-234G into the existing RJ11 telephone jack and a high-performance VDSL2 network can be connected. The VC-234G is ideal to be used as an Ethernet extender to an existing Ethernet network.
Delivering High-demand Service Connectivity for ISP/Triple Play Devices
The VC-234G provides excellent bandwidth to satisfy the triple play devices for home entertainment and communication. With the capability of 240/120Mbps (G.INP, Asym, 8dB) asymmetric data transmission, the VC-234G enables many multi-media services to work on the local Internet, such as VoD (video on demand), voice over IP, video phone, IPTV, Internet caching server, distance education, and so on.
Easy and Flexible Installation
The Ethernet-over-VDSL2 Converter comes with a Plug-and-Play design and is fully compatible with all kinds of network protocols. Moreover, the operating status of each individual port and the whole system can be watched via the rich diagnostic LEDs on the front panel. The VC-234G offers two modes, CPE and CO, for application: CPE mode is used at the client’s side and CO mode is at the central side. The CPE or CO mode can be adjusted by using a built-in DIP switch. For the point-to-point connection, a CPE mode and a CO mode must be set up as one pair of converters to perform the connection.
Features:
- VDSL Standard: ITU-T G.993.2 VDSL2, ITU-T G.993.5 G.vectoring
- VDSL Profile: 17a, 30a
- Max. Speed: D 190 / U 190 Mbps (G.INP, Sym, 8dB)
- Max. Distance: 300m
- TAA Compliant
| Hardware Specifications | |
| LAN Ports | 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| VDSL Port | 1 VDSL2 RJ11 female phone jack Twisted-pair telephone wires (AWG24 or better) up to 1.4km |
| Phone Port | 1 RJ11, built-in splitter for POTS connection |
| Dimensions (W x D x H) | 154.6 x 86.0 x 26.3 mm |
| Weight | 350g |
| Power Requirements | 5V DC, 2A external power |
| LED Indicators | 1 power: Green 4 1000BASE-T LNK/ACT: Green 4 100BASE-TX LNK/ACK: Green 1 VDSL: Green 1 CO: Green 1 CPE: Green |
| Housing | Metal |
| DIP Switch & Functionality | 4-position DIP switch
|
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Jumbo Packet Size | 9K bytes |
| System Specifications | |
| VDSL Compliance | VDSL-DMT ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a Support) ITU-T G.993.5 G.vectoring ITU-T G.998 G.INP |
| Performance* (Downstream/Upstream) | Interleave, Asym, 8dB 200M -> 237.80Mb/119.17Mb 400M -> 175.31Mb/82.57Mb 600M -> 119.17Mb47.87Mb 800M -> 67.74Mb/23.24Mb 1000M -> 54.22Mb/8.59Mb 1400M -> 31.21Mb/5.59MbInterleave, Sym, 8dB 200M -> 182.73Mb/180.89Mb 400M -> 146.28Mb/113.39Mb 600M -> 89.53Mb/69.68Mb 800M -> 54.24Mb/38.86Mb 1000M -> 29.13Mb/28.12Mb 1400M -> 25.17Mb/11.49MbG.INP, Asym, 8dB 200M -> 248.18Mb/127.65Mb 400M -> 85.71Mb/82.43Mb 600M -> 119.28Mb/49.11Mb 800M -> 69.94Mb/23.96Mb 1000M -> 62.56Mb/9.24Mb 1400M -> 34.74Mb/5.75MbG.INP, Sym, 8dB 200M -> 192.32Mb/190.25Mb 400M -> 152.38Mb/117.50Mb 600M -> 92.92Mb/71.62Mb 800M -> 53.92Mb/39.59Mb 1000M -> 32.32Mb/31.33Mb 1400M -> 28.03Mb/12.53MbInterleave, Asym, 12dB 200M -> 215.97Mb/109.71Mb 400M -> 149.37Mb/69.88Mb 600M -> 94.94Mb/41.30Mb 800M -> 60.76Mb/14.03Mb 1000M -> 45.97Mb/6.84Mb 1400M -> 27.15Mb/3.76MbInterleave, Sym, 12dB 200M -> 169.27Mb/165.32Mb 400M -> 129.22Mb/94.79Mb 600M -> 76.86Mb/61.35Mb 800M -> 43.57Mb/33.04Mb 1000M -> 22.57Mb/25.94Mb 1400M -> 21.03Mb/9.37MbG.INP, Asym, 12dB 200M -> 225.37Mb/116.22Mb 400M -> 154.85Mb/72.01Mb 600M -> 98.01Mb/42.32Mb 800M -> 62.55Mb/13.81Mb 1000M -> 51.51Mb/7.21Mb 1400M -> 30.66Mb/3.54MbG.INP, Sym, 12dB 200M -> 177.01Mb/171.92Mb 400M -> 133.47Mb/97.78Mb 600M -> 79.41Mb/57.73Mb 800M -> 46.55Mb/33.64Mb 1000M -> 28.71Mb/25.01Mb 1400M -> 23.31Mb/10.29Mb |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-duplex flow control IEEE 802.1p Class of Service ITU-T G.993.1 VDSL ITU-T G.997.1 ITU-T G.993.2 VDSL2 (Profile 17a/30a support) ITU-T G.993.5 G.Vectoring & G.INP ITU-T G.998 |
