PoE Ethernet Injector Hub
High Power PoE for SOHO PoE Applications
The HPOE-460 is the next generation 4-Port Gigabit High Power PoE injector Hub, featuring both IEEE 802.3af and High Power IEEE 802.3at PoE standard that combines up to 30-watt power output and data per port over one CAT 5/5e/6 Ethernet cable. The HPOE-460 is designed specifically to satisfy the growing demand for higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome IP cameras, multi-channel (802.11a/b/g/n) wireless LAN access points and other network devices in SOHO and SMB network applications.
The IEEE 802.3at Power over Ethernet standard is defined to provide each PoE device maximum up to 30 watts of input power which is double amount of PoE power, more than the conventional 802.3af PoE PSE. The IEEE 802.3at PoE standard is an ideal solution to meeting the high power requirements directly via the RJ-45 Port interface. Compliant with IEEE 802.3at, the HPOE-460 possesses stronger power capability than the existing 802.3af PoE PSE.
Quick and Easy PoE Network Deployment

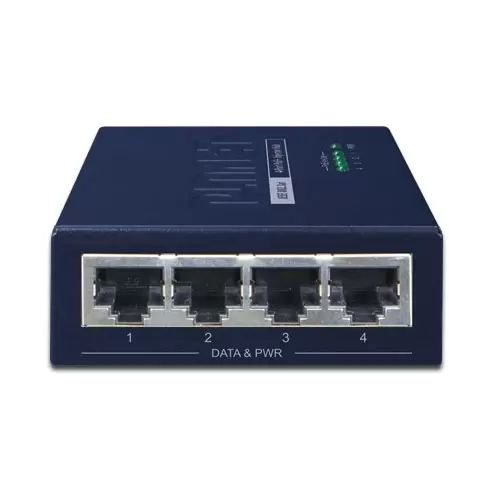

With 4 10/100/1000Base-T Gigabit Ethernet ports, the HPOE-460 supports 52V DC power for any remote 802.3af / 802.3at powered device (PD) without affecting data transmission performance. Supporting PoE power budget of 120 watts, the HPOE-460 provides sufficient 15.4 / 30.8-watt PoE power to up to 4 remote PD devices. It offers a cost-effective and quick solution to upgrading network system to IEEE 802.3af / IEEE 802.3at Power over Ethernet system without replacing the existing Ethernet Switch. There are 8 RJ-45 STP ports on the front panel of the HPOE-460, in which 4 ports in the right direction function as “Data input” and the other half in the left direction function as “PoE (Data and Power) output”. The 4 “PoE (Data and Power) output” ports are also the power injectors that transmit DC voltage to the CAT. 5/5e/6 cable and transfer data and power simultaneously between the Injectors and Splitters.
The HPOE-460 is a 4-port injector hub with PoE capabilities.
Features:
- Ports: 4 10/100/1000Base-TX ports
- Standards: 802.3af/802.at
- PoE Power Budget: 120 Watts
- TAA Compliant
| Hardware Specifications | |
| Hardware Version | 2 |
| Interface | “Data” Input Ports: 4 x RJ-45 “Data+Power” Output Ports: 4 x RJ-45 |
| Data Rate | 10/100/1000Mbps |
| LED | System: Power x 1 (Green) Per PoE Port: PoE ready / in-use x 4 (Green) |
| Network Cable | 10Base-T: 4-Pair UTP Cat. 5 up to 100m (328ft) 100Base-TX: 4-Pair UTP Cat. 5 up to 100m (328ft) 1000Base-T: 4-Pair UTP Cat. 5e, 6, up to 100m (328ft) EIA/TIA- 568 100-ohm STP (100m, 328ft) |
| Dimensions (W x D x H) | 26 x 70 x 97 mm |
| Weight | 220g |
| Power Requirements | DC 52V~56V |
| Power over Ethernet | |
| PoE Power Supply Type | Mid-Span |
| PoE Power Output | Per Port DC 52V 30.8 watts / 15.4 watts |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Power Budget | 120 watts |
| Number of 802.3af PD Class 0, 1, 2, 3 can be powered | 4 |
| Number of 802.3at PD Class 1, 2, 3 can be powered | 4 |
| Number of 802.3at PD Class 0, 4 can be powered | 4 |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at Enhancement Power over Ethernet IEEE 802.3af Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
