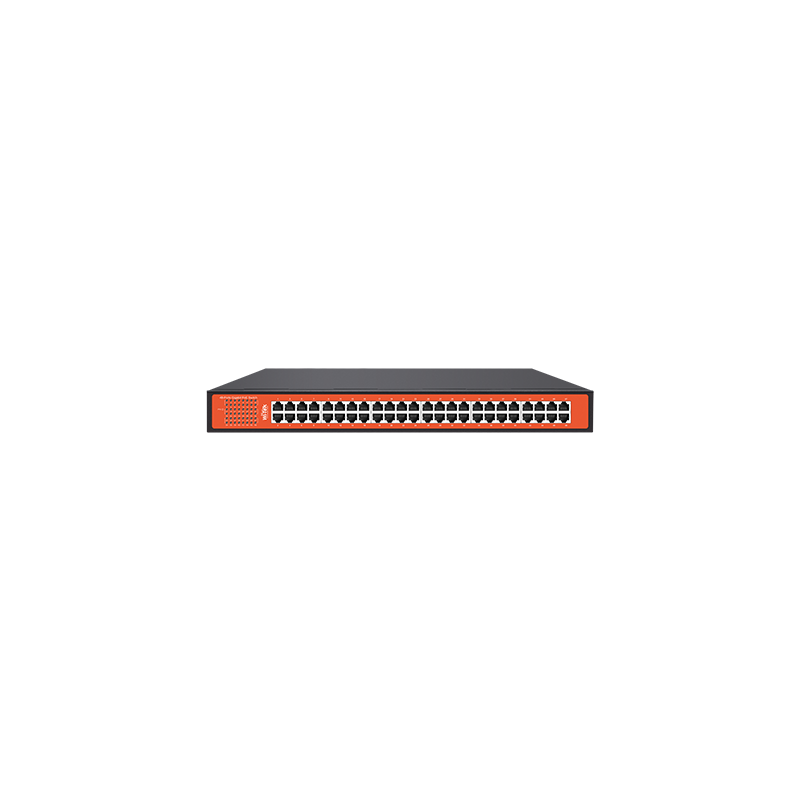

Wi-Tek - WI-SG148 - 48GE Full Giga rack-mountable Ethernet Switch
Part number:
WI-SG148
Price:

Wi-Tek Gigabit Ethernet Switches provide an easy way to expand your wired network. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use. Featuring full duplex mode can send and receive data at a rate up to 1000Mbps, making it an ideal choice for expanding your high performance network.



Full gigabit access, full-line speed forwarding:

All ports support high-speed forwarding, user-flexibly flexible networking, to meet the needs of various scenarios networking, such as hotel, campus, factory dormitory and small and medium-sized enterprises.



Plug and play, no configuration required:

A plug-and-play design lets administrators quickly connect the switch to devices with no hassles, no technician needed. Autonegotiation on each port senses and adjusts the link speed of a network intelligently to ensure an overall boost in performance and reliability. Convenient for wall-mounted, desktop and rack installations.



Long service Life with sturdy and durable mental shell:

Wi-Tek Gigabit Ethernet Switches are protected by high-quality metal shell to ensure the long service life. They have passed a series of strict tests and provided you with reliable performance.



Features:

  • 48 100/1000Mbps RJ45 Ethernet ports
  • Plug and play, zero configuration
  • Supports desktop or rackmount mount replacement
  • Energy efficient design compliant with IEEE802.3az
  • Silent operation ideal for noise sensitive environment

HARDWARE FEATURES

WI-SG148

Standards

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p

Interface

48 100/1000Mbps RJ45 Ports

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

1000BASE-X: MMF, SMF 1000Base-L X:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

DIP Switch

No

Fan Quantity

Fanless

Exchange Capacity

128G

Packet Forwarding Rate

74.4Mpps

Mac Address Table

8K

Power Adapter

AC IN: 110-240V

Packet Buffer Memory

4.1Mb

Jumbo Frame

10240 Bytes

Port VLAN

No

OTHERS

Certification

CE, FCC, RoHS

Package Dimension

505×375×95mm

Switch Dimension

440×250×45mm

Gross Weight

4kg

Net Weight

3kg

Package Contents

1 × Gigabit Switch

2 × Power Cord

1 × Installation Guide

1 x Foot Pad

1 x Rack-mount Kit

Working Temperature

-10℃~55℃

Storage Temperature

-40℃~70℃

Working Humidity

10%~90% RH non-condensing

Storage Humidity

5%~90% RH non-condensing
