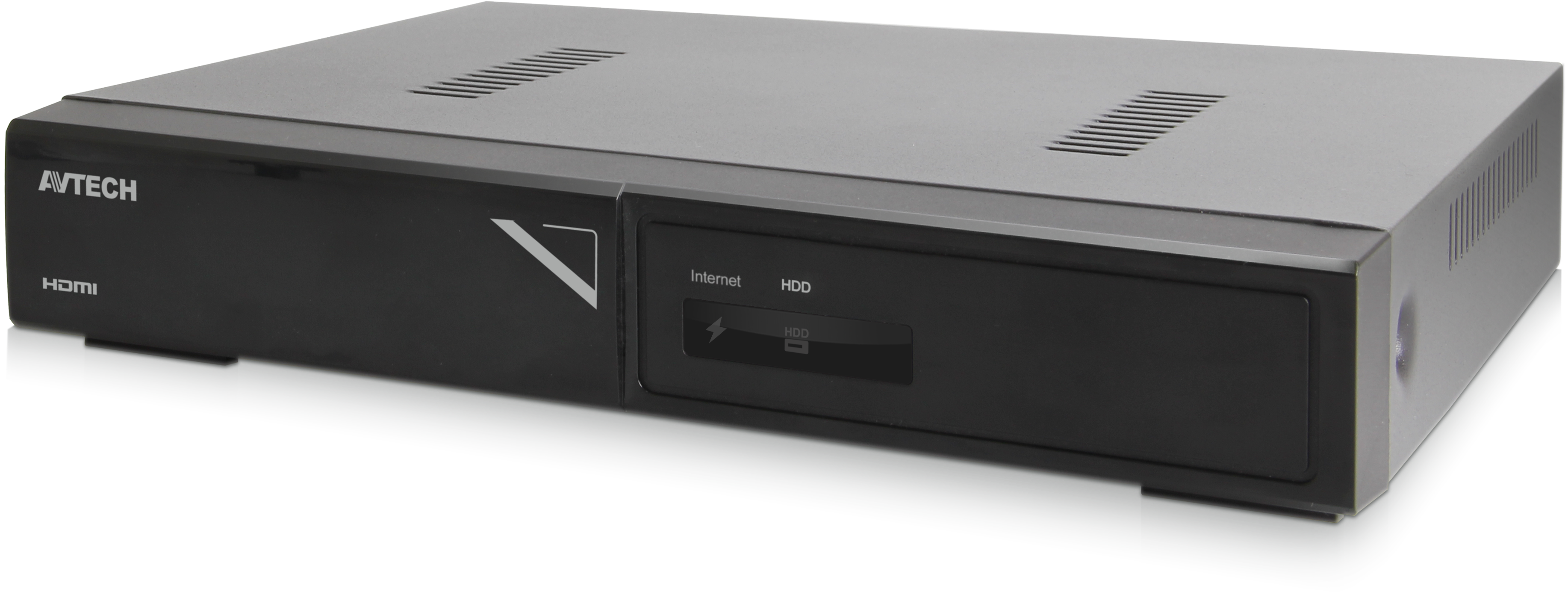

AVTECH - DGH1104 - 4CH H.265 NVR with POE
Part number:
DGH1104
Price:

4CH H.265 NVR with POE



Features:

H.265 Compression Technology

  • With this compression technology, the recording capacity is greatly enhanced as well as bandwidth saving for better efficiency and performance than the systems employing other compression formats



Cloud Service - EaZy Networking*

  • EaZy Networking, the cloud service provided by AVTECH, available to connect this device to Internet automatically in three steps with our free mobile app, EagleEyes.
  • The “Buddy” feature to share the device access permission to other people.
  • Device login / out notifications reported.



Alarm Scenario Customization

  • “Scenario” is a new feature allowing you to customize a series of actions which will be run automatically after the specified event occurs. There are several scenario templates for you to choose when and what to do after a specific event occurs.



Push Status

  • Push Status to send instant notifications for system events, such as video loss or HDD data removal.



One Ethernet Cable Solution

  • (POE, Power-over-Ethernet)
  • Camera power supply & video transmission over one Ethernet cable to eliminate the needs of power adapters for your cameras during the whole HD surveillance system setup.



Event Pop-up / Preview

  • All events are listed on the right panel with corresponding event icons for you to quickly recognize the event type. The most current one will flash to catch your attention. Click one event and you’re able to preview the footage with pre-alarm images.



Spot Monitor

In addition to the main display via the main HDMI output, you can assign a secondary display to show live view, call monitor or event monitor.

Specifications
Hardware
Video Input 4 LAN ports with PoE
Video Output HDMI YES (4K2K)
VGA YES (1080P; Spot Monitor Supported)
HDD Storage** Either one 14TB SATA HDD installed in the recorder, or   a disk array connected to the recorder via the eSATA interface
USB Port YES
eSATA Port Expandable with a SATA to eSATA cable
Ethernet POE port

10/100 Mbps with PoE x 4

(IEEE802.3af)

Internet (WAN) port 1000 Mbps x 1
Software
Video Compression Format H.265
Audio Compression Format G711
Local / Remote Display Mode  4CH
Local / Remote Playback Mode 4CH
Local Single Channel Playback YES
Recording Mode Manual / Event / Alarm / Schedule
Record Streaming Dual
Recording Throughput 120 IPS @ 8MP (3264 x 2448), up to 80Mbps
Pre-alarm Recording YES
Quick Search Time / Event
Event Notification Push Status / Video Mail / Message Mail
Security Multiple user access levels with password
Multicast YES
Seamless Recording*** YES
EaZy Networking YES
Spot Monitor Setup Call Monitor / Event Monitor / Live Monitor (VGA)
Alarm Scenario Setup YES
Alarm Pop-up & Preview YES
Free DDNS Service YES
Network
Protocols

DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP,

RTSP, RTCP, IPv4, Bonjour, UPnP, DNS,UDP,IGMP, QoS, SNMP

ONVIF Compatible YES
Max. Online User 20
Remote Access
  1. Web browser: Windows Edge, Internet Explorer, Google Chrome & Safari
  2. PC program: CMS Lite, 32CH CMS software for Windows OS
  3. Mobile app: EagleEyes on iOS & Android mobile devices
General
Power Source (±10%) DC48V / 1.25A
Operating Temperature 10℃ ~ 40℃ (50℉~104℉)
Operating Humidity 10% ~ 85%
Dimensions (mm)**** 260 x 235.7 x 48
Net Weight (kg) 0.92
Minimum PC Browsing Requirements

Intel core i3 or higher, or equivalent AMD

2GB RAM

AGP graphics card, Direct Draw, 32MB RAM

Windows 10, Windows 8, Windows 7 & Windows Vista, DirectX 9.0 or later

Windows Edge, Internet Explorer 7.x or later

Optional Peripherals

HDMI Matrix (HDM02) / USB Joystick (AVX102) /

SATA to eSATA cable (PWSC07F120200)

Certification CE / UL
