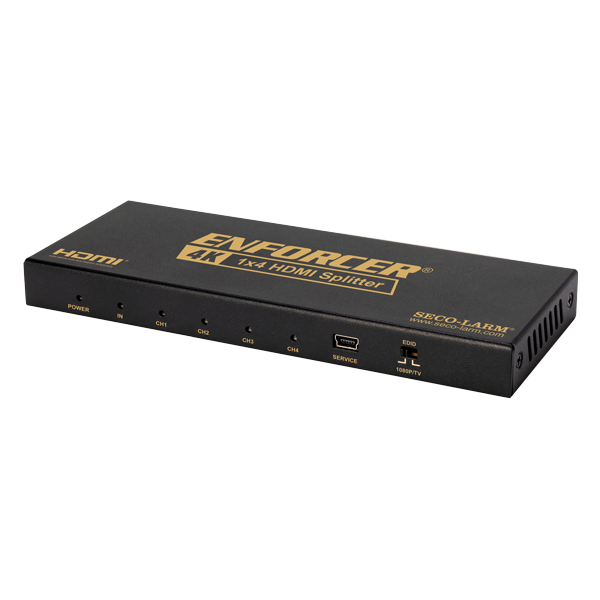

SECO-LARM - MVD-AH14-01Q - 4K HDMI Splitter – 4 HDMI Outputs
Part number:
MVD-AH14-01Q
Price:

HDMI Splitter. Transmit a single HDMI source to up to four different high-definition TVs or HDMI displays. Supports up to 4K@60Hz resolution and 3D video. Includes 5VDC power supply.



The ENFORCER 4K HDMI Splitters allow for one HDMI source to simultaneously transmit to up to four different monitors. The splitters work with most HDMI devices, delivering the very best in digital audio and video signals with HD resolutions of up to 4K@60Hz. An LED indicator clearly displays power status as well as which outputs are active. The 4K HDMI Splitters can be daisy chained up to four levels for even more outputs.



Features:

  • Transmits an HDMI source to up to four different HDMI displays
  • Additional splitters can be daisy-chained for more outputs
  • HDR Support
  • Supports up to 4K@60Hz resolution and 3D video
  • Individual status LEDs for each HDMI output
  • Two EDID management settings
  • One 5VDC power supply included
Type4K HDMI® Splitter
Maximum Single Link Range4K*2K@60hz
Deep Color24bit RBG/YCBCR 4:4:4
Video Formats SupportedHDMI 2.0b, HDCP 2.2
Audio Formats SupportedLPCM 7.1 CH Dolby TrueHD, DTS-HD Master Audio
Output VideoHDMI®
HDR SupportYes
Resolutions Supported4K/1080p/1080i/720p/576p/576i/480p/480i
Video Amplifier Bandwidth600MHz/18Gbps
Video Input Connector1x HDMI® Type A 19-pin female
Max. Input Cable Length24AWG: 50’ (15m); 26AWG: 30’ (10m); 28AWG: 16’ (5m)
Video Output Connector4x HDMI® Type A 19-pin female
Max. Output Cable Length24AWG: 50’ (15m); 26AWG: 32’ (10m); 28AWG: 16’ (5m)
Operating Voltage5VDC
Power Supply1A@5VDC (2.1mm plug)
ESD Protection±8kV (air-gap discharge), ±4kV (contact discharge)
Current Draw650mA@5VDC
Operating Temperature32°~104° F (0°~40° C)
Operating Humidity20~90% RH (no condensation)
Dimensions2-1/2″x6-7/16″x5/8″ (63x163x16 mm)
Weight9-oz (260g)
