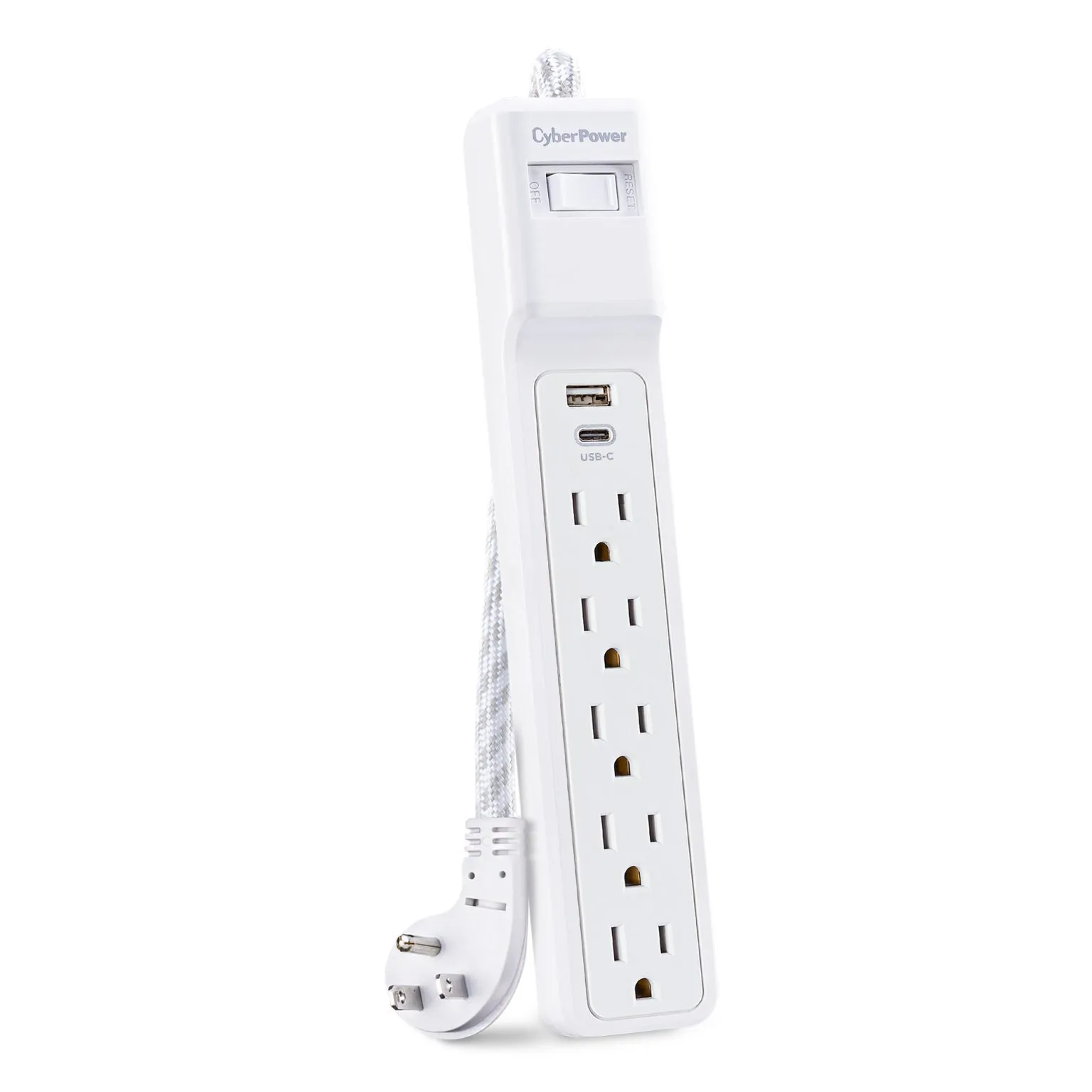

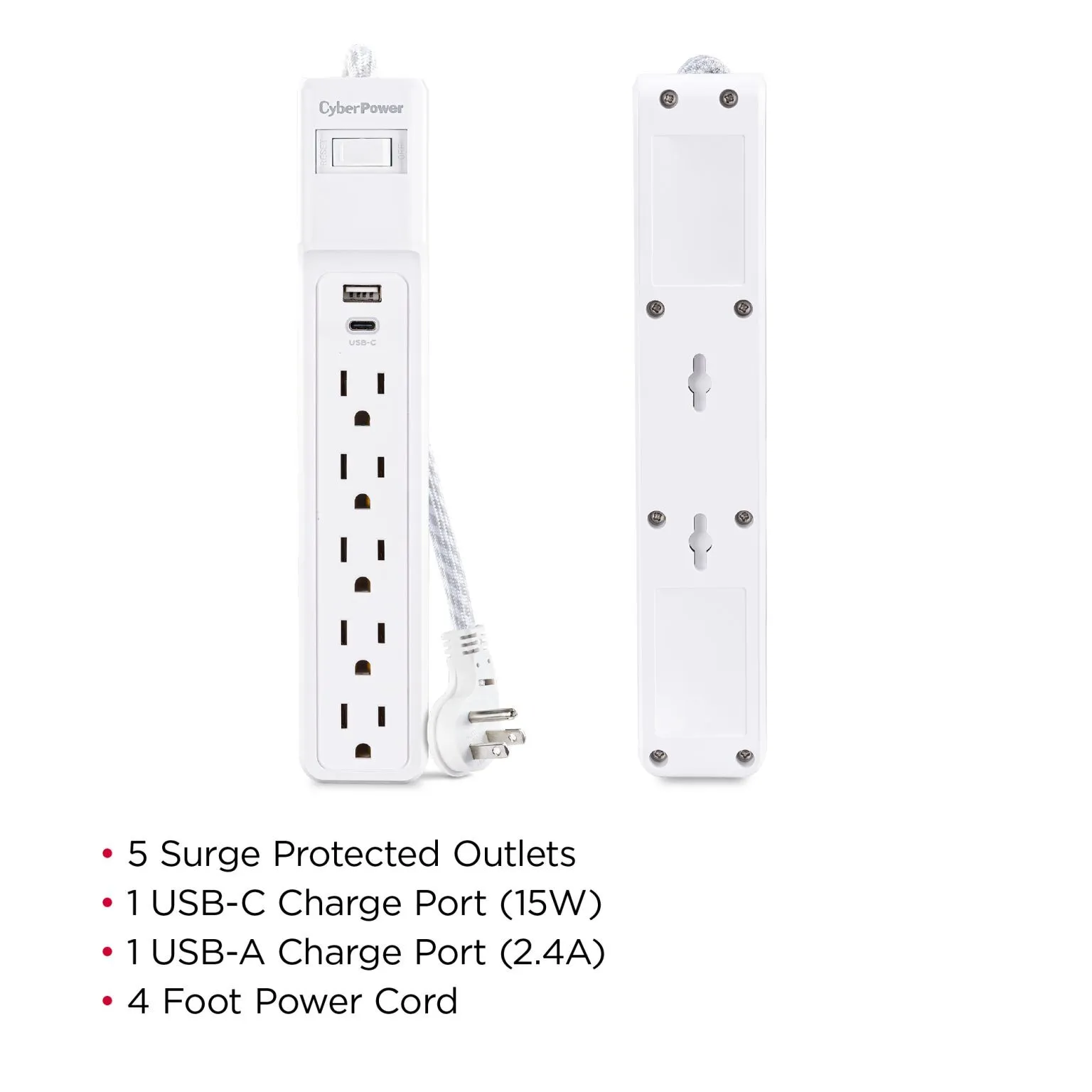

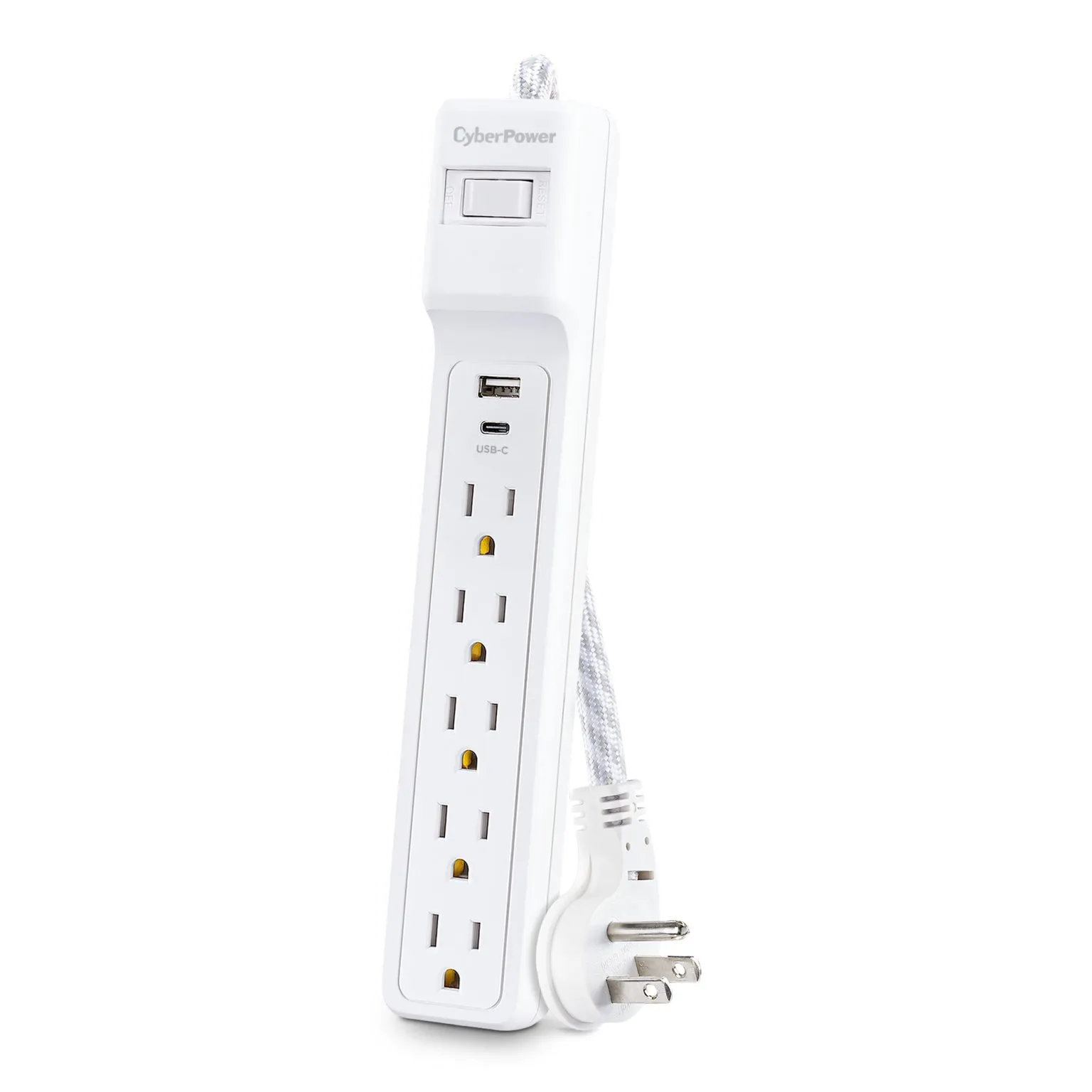

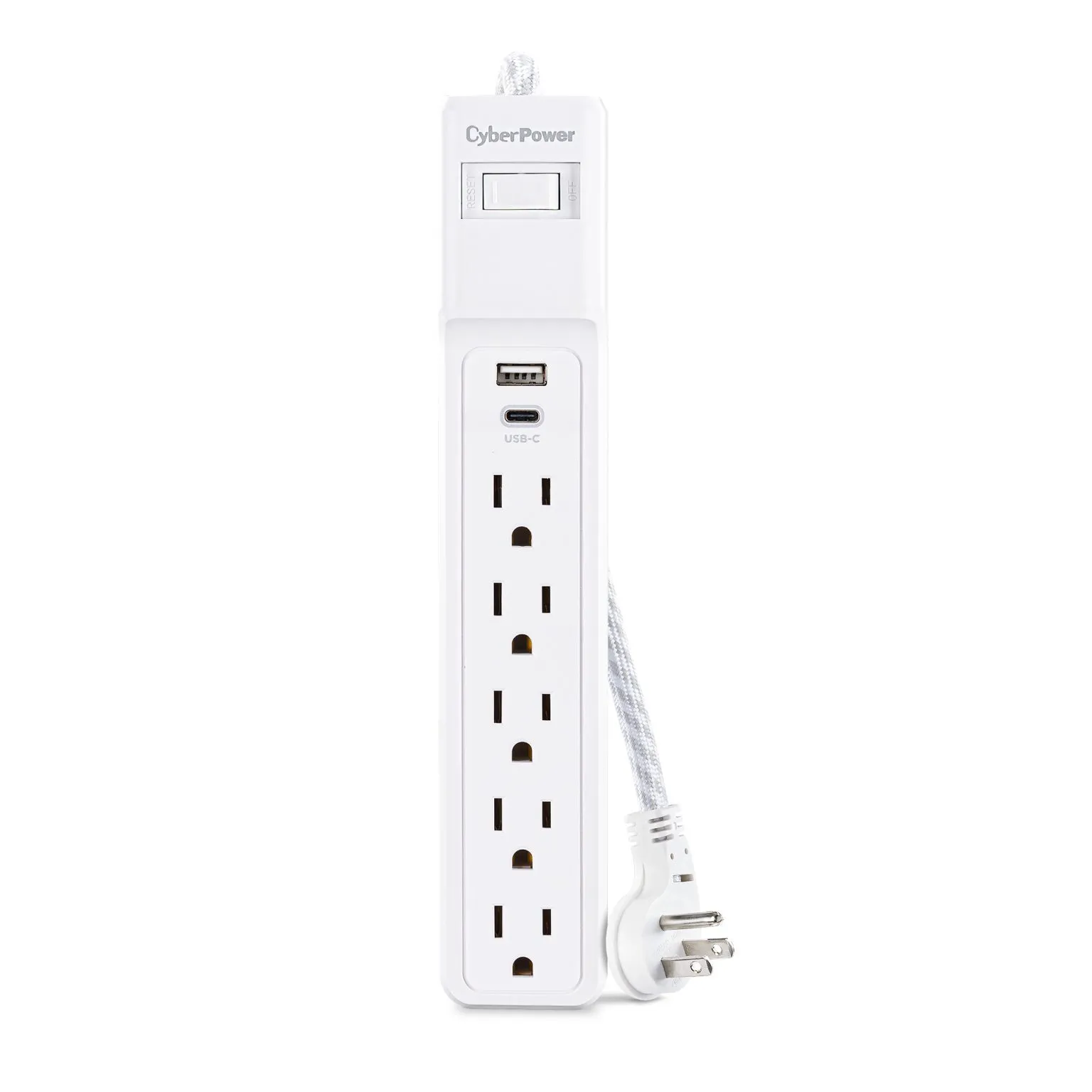

The CyberPower Surge Protector P504UC prevents spikes in energy caused by storms and electrical power surges from reaching your home electronics such as audio/video equipment, laptops and desk top computers, household appliances and small electronics. The P504UC provides 500 joules of surge protection, 5 AC outlets, 1 USB-C charging port, 1 USB-A charging port, and a braided 4 foot power cord with a right-angle plug.
Features of the P504UC include automatic shutdown, an EMI/RFI noise filter, metal oxide varistor (MOV) technology, an On/Off switch with integrated 15-Amp circuit breaker, low profile plug, keyhole mounting slots, and damage-resistant construction. This surge suppressor comes with a One Year Limited Warranty and a $25,000 Connected Equipment Guarantee.
Features:
- Surge ProtectionDiverts excess voltage from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- USB Charging PortsCharge USB-A and USB-C compatible devices such as tablets, smartphones, and other mobile accessories.
- Automatic ShutdownProtects connected electronics with the integrated circuit breaker which automatically switches off in the event of an overload that exceeds the model’s ability to suppress the signal.
- EMI/RFI Noise FilterMaintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
- Metal Oxide Varistor (MOV) TechnologyAllows normal current to pass through the device, while diverting any surges/spikes through the ground circuit, to safeguard connected electronics and the surge suppressor.
- On/Off SwitchIntegrated 15-amp circuit breaker.
- Low Profile Plug DesignFits tightly to the wall behind furniture.
- Keyhole SlotsEnable the model to be securely mounted to a wall or desk.
- Damage-Resistant HousingEnsures maximum durability and prolongs the life of the model.
- Connected Equipment GuaranteeCyberPower will repair or replace properly connected equipment (up to $25,000 value) if it is damaged by a power surge.
- One Year Limited WarrantyCovers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 4 ft (1.2 m) |
| Input Plug Type | NEMA 5-15P |
| Maximum Input Current | 15A |
| Plug Style | Low Profile |
| Power Cord Length | 4 ft (1 m) |
| Output | |
| Outlet Type | 5 – NEMA 5-15R |
| Outlets – Total | 5 |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 2.4 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| USB Charge Port Type | 1 Type A, 1 Type C |
| USB Charge Port Voltage | 5 VDC |
| USB Charge Port Watts | 15 Watts |
| Surge Protection & Filtering | |
| Clamping Voltage | 800V (H-N) |
| EMI/RFI Filtration | 150 KHz, 100 MHz, Yes |
| Maximum Surge Current | 15000 A |
| Maximum Surge Current H-N | 15000 A |
| Maximum Surge Voltage | 6000 V |
| Response Time | <1 Nanosecond |
| Surge Suppression (Joules) | 500 J |
| Physical | |
| Color | White |
| Form Factors Supported | Keyhole (Wall Mount or Under-counter Installation) |
| Material of Construction | Plastic |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 4.55 x 3.81 x 24.79 (cm) |
| Physical Dimensions – (WxHxD) (in) | 1.79 x 1.50 x 9.76 (in) |
| Physical Dimensions – (WxHxD) (mm) | 45 x 38 x 248 (mm) |
| Physical Weight (kg) | 0.34 |
| Physical Weight (lb) | 0.75 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 0.38 |
| Shipping – Weight (lb) | 0.837 |
| Shipping Dimensions – (WxHxD) (cm) | 4.55 x 7.04 x 24.69 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 1.79 x 2.77 x 9.72 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 45.47 x 70.36 x 246.89 (mm) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1449 3rd Edition, UL1363, UL1310, FCC, cUL, DOE VI |
| Warranty | |
| CEG Amount | $25,000 |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 1 Year Limited Warranty |
