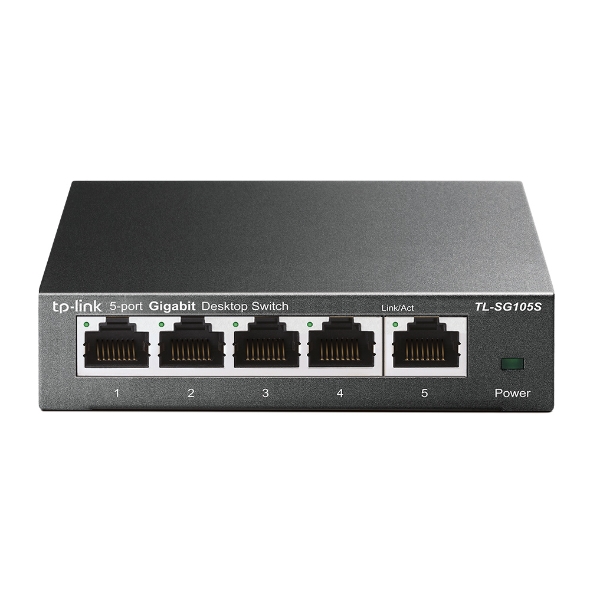

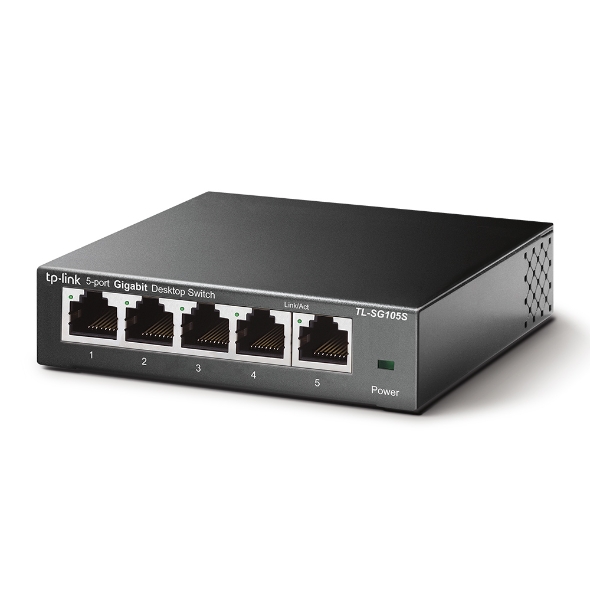

TP-Link - TL-SG105S - 5-PORT GIGABIT DESKTOP SWITCH PERP
Part number:
TL-SG105S
Price:
5-Port 10/100/1000Mbps Desktop Switch
Features:
- 5 10/100/1000Mbps Auto-Negotiation RJ45 ports with auto-MDI/MDIX
- Green Ethernet technology saves power
- IEEE 802.3x flow control provides reliable data transfer
- Metal housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping
- Plug and play, with no configuration required
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.1p |
| Interface | 5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports |
| Fan Quantity | Fanless |
| Power Consumption | 2.4W |
| External Power Supply | External Power Adapter (Output: 9VDC / 0.6A) |
| LED Indicator | System Power Link/Act indicators per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 3.9 x 3.9 x 1.0 in. (100 x 98 x 25 mm) |
| PERFORMANCE | |
|---|---|
| Packet Forwarding Rate | 7.4Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1Mb |
| Jumbo Frame | 16KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | Green Technology 802.3X Flow Control 802.1P/DSCP QoS IGMP Snooping |
| Transfer Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | FCC, RoHS |
| Package Contents | 5-Port 10/100/1000Mbps Desktop Switch Power Adapter Installation Guide Rubber Feet |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5%~90% non-condensing |
