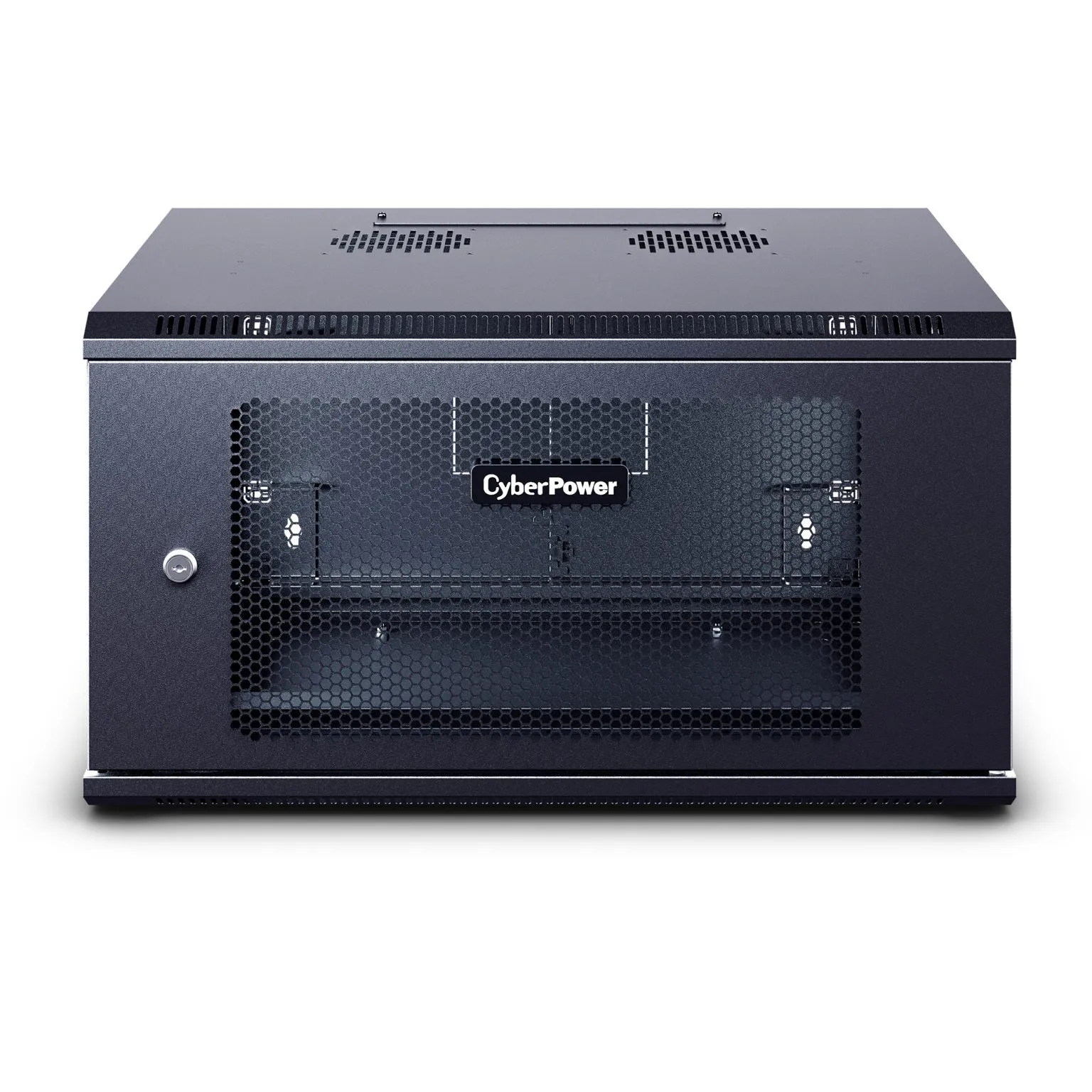

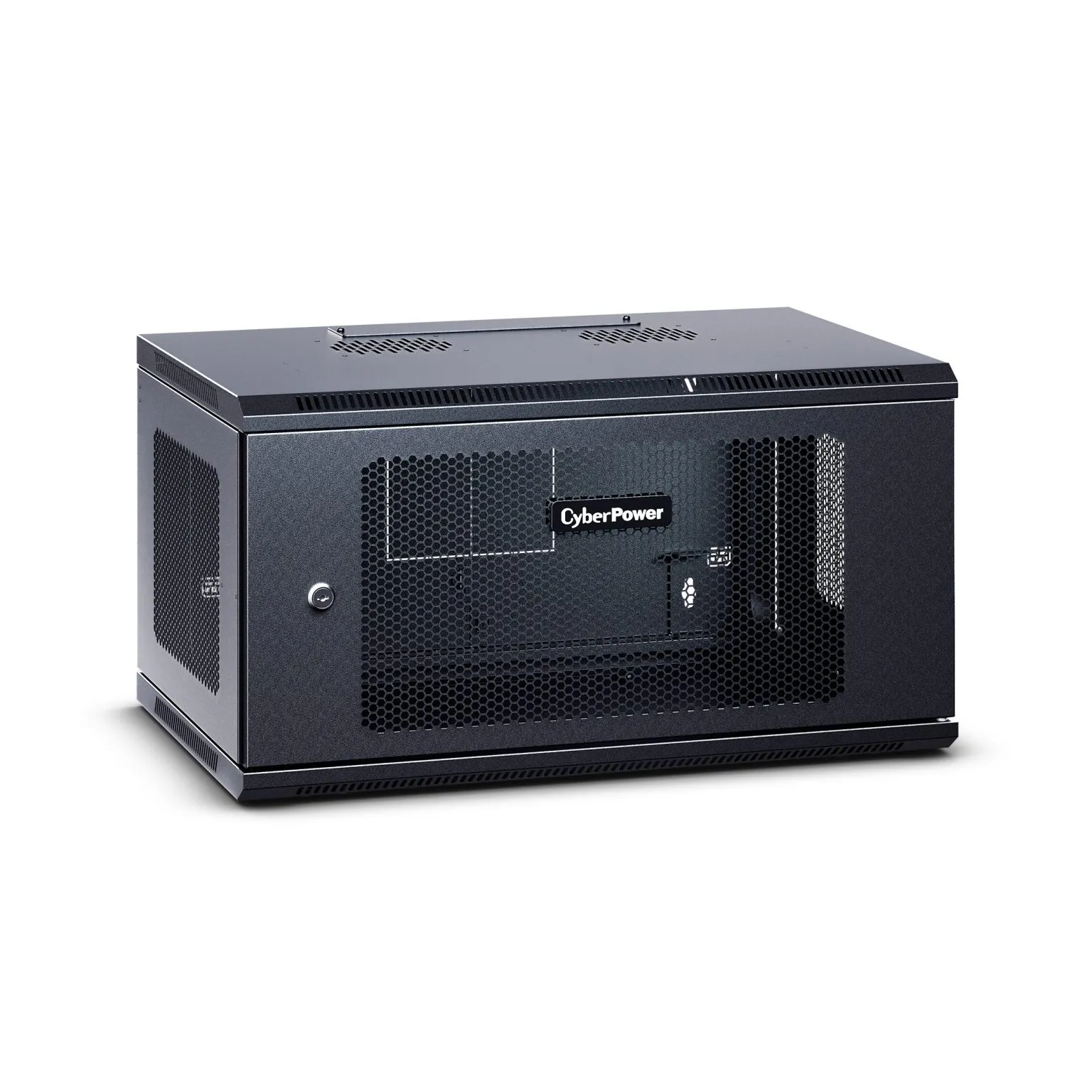

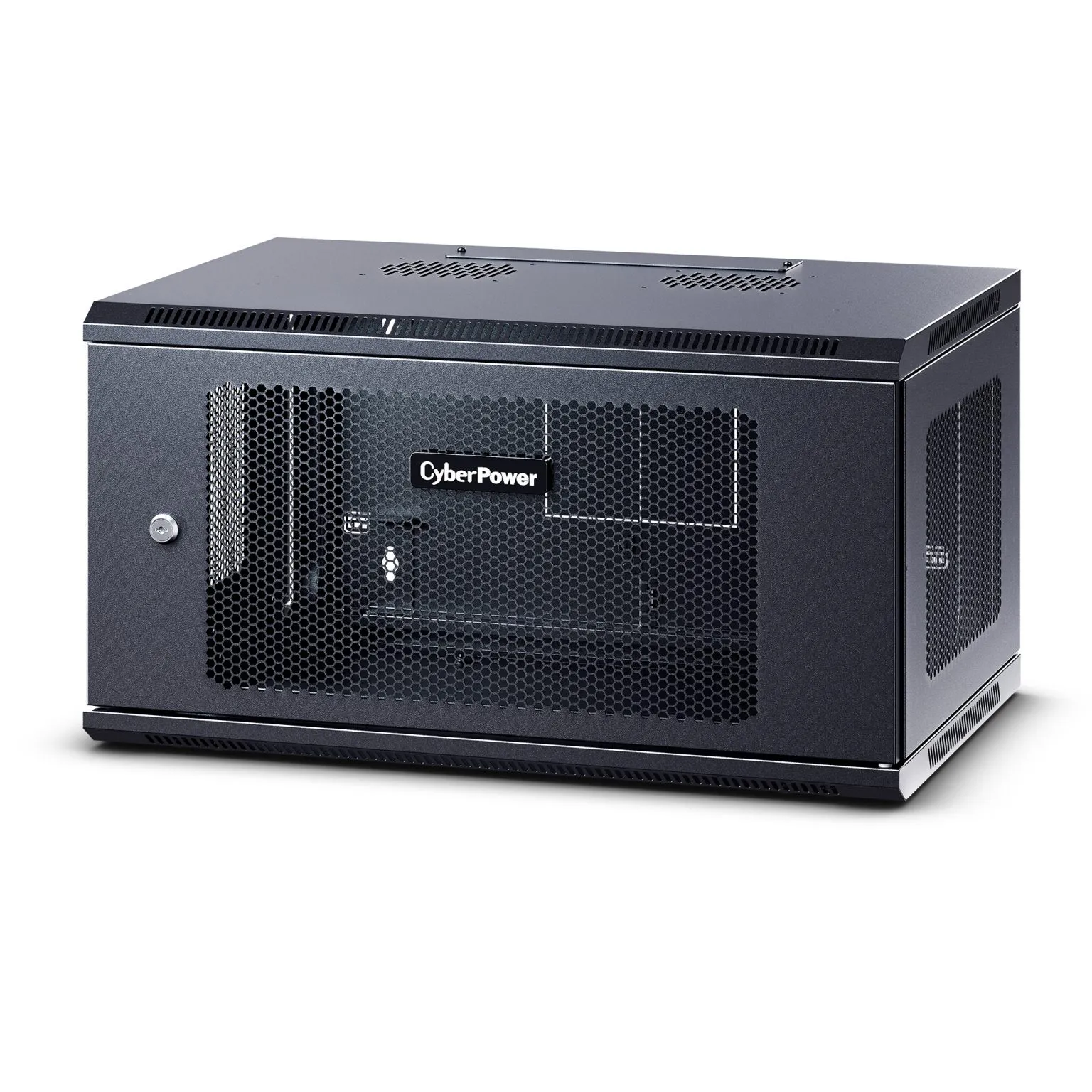

Cyber Power - CR6U61003 - 6U 19" Wall Mount Enclosure, 600mm Wide, 600mm Deep, Hex Perforated Metal Door, Side Panels, Locking Doors/Panels, Black
Part number:
CR6U61003
Price:

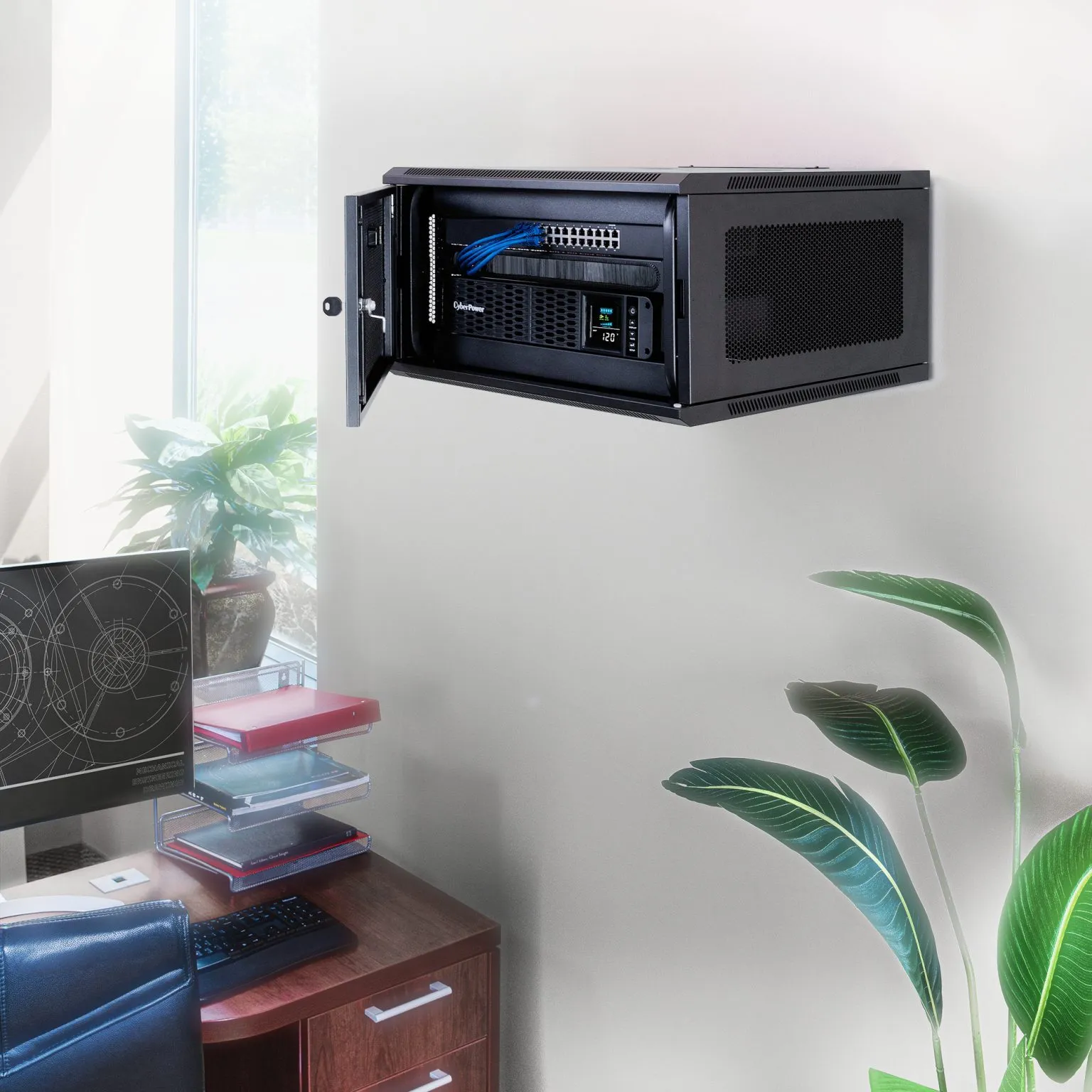

The CR6U61003 is designed for use in network closets, classrooms, and other locations. This wall mount rack houses network switches and patch panels up to 20.3" deep. It includes convenient top panel cable access openings, perforated front door and side panels for efficient airflow, adjustable rack angles, and square and threaded mounting holes. The CR6U61003 ships fully assembled for quick deployment and can be customized with compatible accessories. It is covered by a 5-year limited warranty.

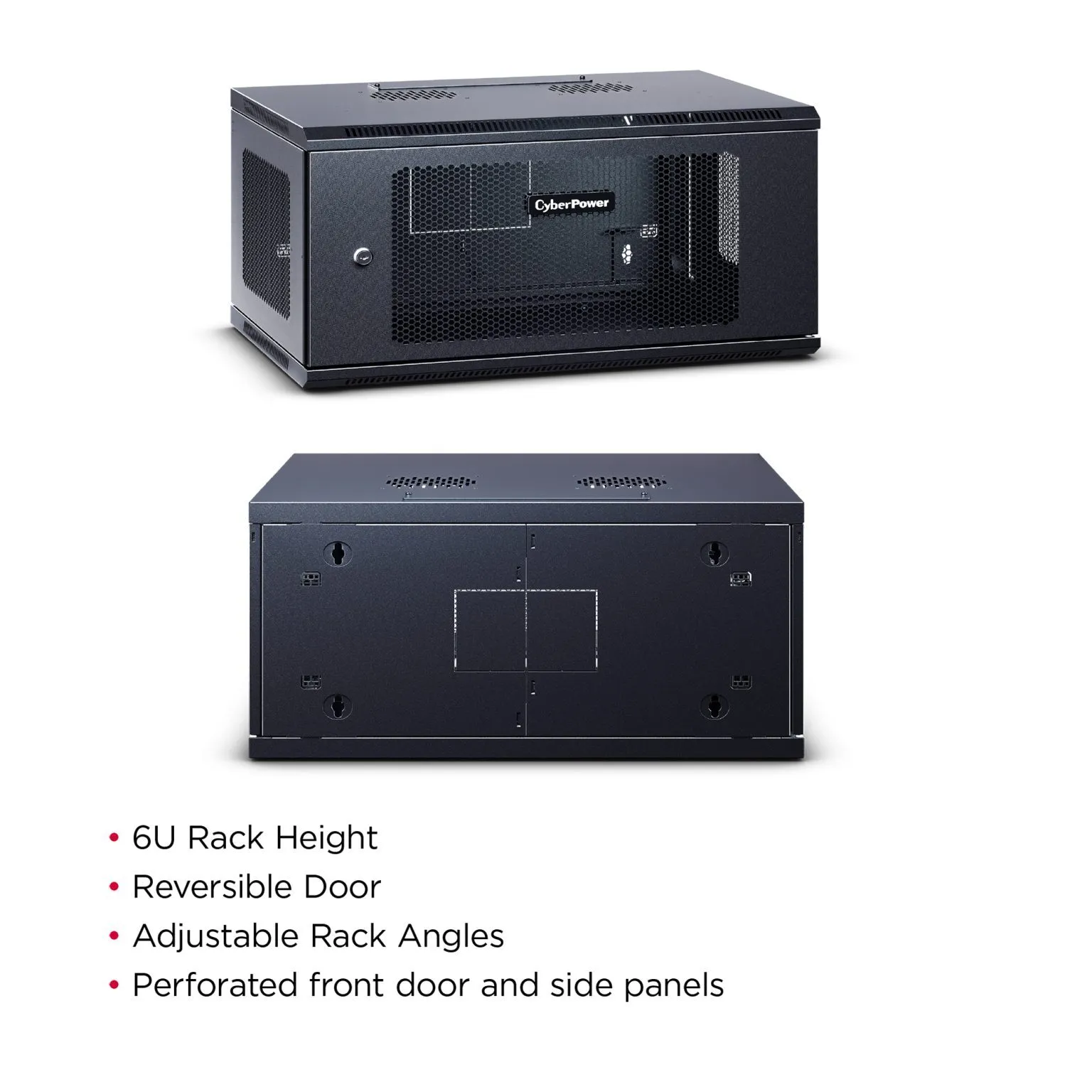

Features:
- Perforated Front Door and Side PanelsProvides ventilation for small servers and networking equipment.
- Reversible DoorFront door has spring loaded hinges and can be easily moved to the opposite side.
- Quick Release Side PanelsLockable side panels can be removed easily for quick access to equipment and cabling.
- Cable Access OpeningsSlots in the bottom and top provide convenient cable routing to and from the enclosure.
- Rack Mounting CompatibilityThe CR6U61003 is compatible with all EIA-310 compliant 19″ equipment.
- Adjustable Rack AnglesVertical rack angles can be adjusted in 3/4″ increments for mounting depth requirements up to 20.3″. U rack units are numbered front and back for easy equipment installation.
- Square and Threaded Mounting HolesVertical rack angles have both square and threaded mounting holes, and can be turned easily to change mounting type.
- Designed for StabilityA high-precision frame design and heavy gauge mounting rails provide a load rating of 132 lbs.
- Integrated Electrical GroundingGrounding connections are located on the frame for facility ground.
| Output | |
| USB Charge Port | No |
| Physical | |
| Cable Access Opening Dimensions | 9.8 x 2.2 in (249 x 56 m) |
| Color | Black |
| Door Type | Hex Perforated Metal Door |
| Factory Default Mounting Depth | 17.2 ft (436.9 mm) |
| Max. Mounting Depth (in) | 20.3 |
| Max. Mounting Depth (mm) | 516 |
| Min. Mounting Depth (in) | 1.9 |
| Min. Mounting Depth (mm) | 47 |
| Rack Angle Mounting Hole Type | Square Mounting Holes, #12-24 Mounting Holes |
| Rack Height | 6U |
| Weight Capacity – stationary load (kg) | 60 |
| Weight Capacity – stationary load (lbs) | 132.3 |

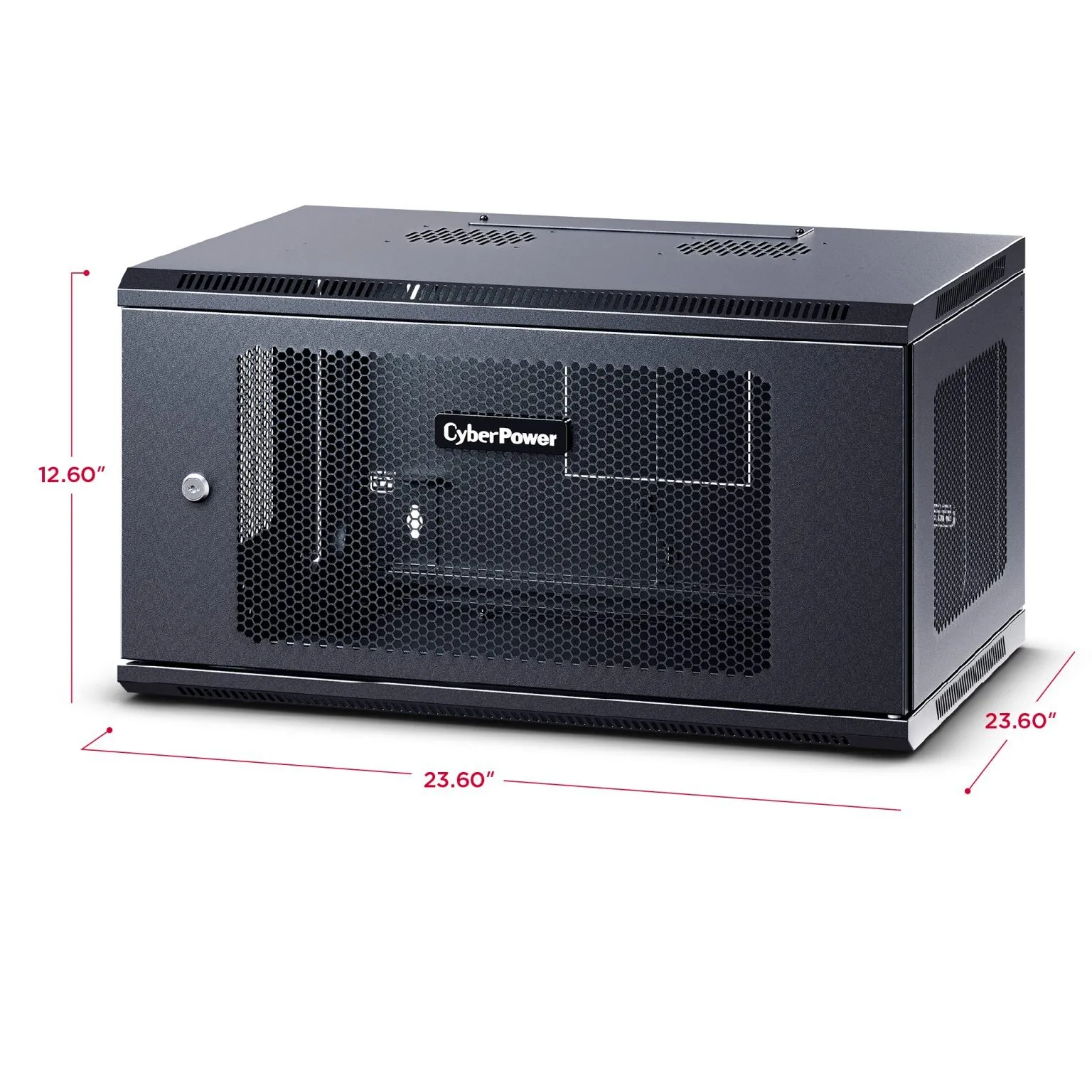

| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 59.94 x 32.0 x 59.94 (cm) |
| Physical Dimensions – (WxHxD) (in) | 23.6 x 12.6 x 23.6 (in) |
| Physical Dimensions – (WxHxD) (mm) | 599 x 320 x 599 (mm) |
| Physical Weight (kg) | 13.47 |
| Physical Weight (lb) | 29.7 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 19.5 |
| Shipping – Weight (lb) | 43 |
| Shipping Dimensions – (WxHxD) (cm) | 67.01 x 45.42 x 66.7 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 26.38 x 17.88 x 26.26 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 670.05 x 454.15 x 667.0 (mm) |
| Special Features | |
| Cable Access | Top and Bottom Openings |
| Lockable Doors and Side Panels | Yes, keyed alike |
| Numbered Rack Units | Yes |
| PE Grounding Point | Yes |
| Removable Doors and Side Panels | Yes |
| Reversible Front Door | Yes |
| Ventilation | Perforated Doors, Perforated Side Panels, Ventilated Top and Bottom |
| Environmental | |
| Protection Class | IP20 |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | EIA-310E, IEC-60297-1, 2, ASTM-D610, ASTM-B117 |
| Warranty | |
| Product Warranty | 5 Year Limited Warranty |
