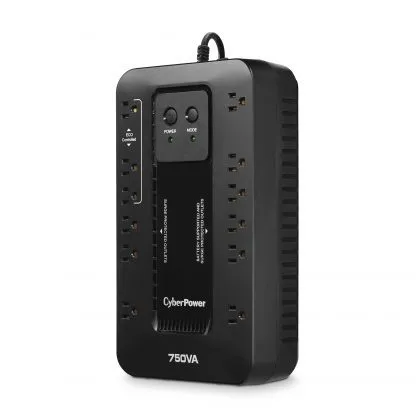

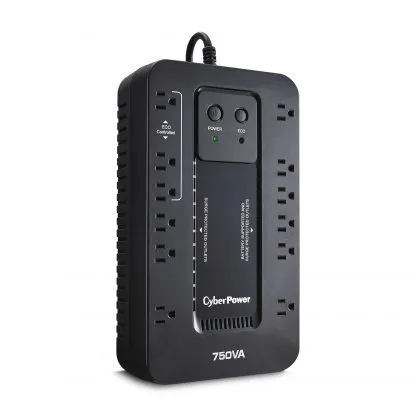

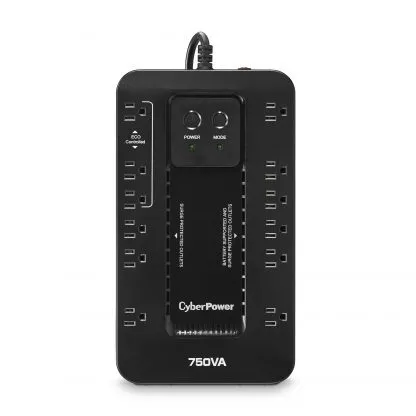

Cyber Power - EC750G - 750VA/450W, Simulated Sine Wave, NEMA 5-15P, 5 ft cord, 12 NEMA 5-15R, USB
Part number:
EC750G
Price:

A compact UPS with standby topology, the CyberPower Ecologic EC750G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC750G offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The EC750G comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • ECO Mode: Is an energy-efficient, user selectable feature for some surge-protected outlets. When the computer is off or is in sleep mode, the UPS automatically cuts power to computer peripherals connected to any outlets in ECO mode.
  • Widely Spaced Outlet(s): The widely-spaced outlet allow you to conveniently add transformer-sized plugs without blocking other outlets.
  • Audible Alarms: Provides audible notification of certain events such as running on battery power, low battery, or overload conditions.
  • LED Status Lights: Indicate Power On, ECO On/Off.
  • Ultra Quiet Design: Minimizes noise during operation for a quieter work environment.
  • ENERGY STAR: This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • GreenPower UPS High-Efficiency: Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
  • Standby Topology: Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.
  • Simulated Sine Wave Output: Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • PowerPanel Personal Software: Provides a user-friendly dashboard interface for controlling and monitoring the UPS.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
General
Energy SavingGreenPower UPS™ High-Efficiency
Energy Star CertifiedYes
UPS TopologyStandby
Battery
Battery TypeSealed Lead-Acid Battery
Field-serviceable BatteryReplaceable by qualified technician
Runtime at Full Load2.8 min
Runtime at Half Load10 min
Typical Recharge Time8 Hours
Dimensions
Physical Dimensions – (WxHxD) (cm)30.99 x 7.87 x 17.78 (cm)
Physical Dimensions – (WxHxD) (in)12.2 x 3.1 x 7 (in)
Physical Dimensions – (WxHxD) (mm)310 x 79 x 178 (mm)
Weight (kg)3.49
Weight (lb)7.7
Dimensions – Shipping
Shipping – Weight (kg)4.31
Shipping – Weight (lb)9.5
Shipping Dimensions – (WxHxD) (cm)11.05 x 24.13 x 38.1 (cm)
Shipping Dimensions – (WxHxD) (in)4.35 x 9.5 x 15 (in)
Shipping Dimensions – (WxHxD) (mm)110.49 x 241.3 x 381.0 (mm)
Input
Cord Length5 ft (2 m)
Input Frequency Range47 – 63 Hz
Input Plug TypeNEMA 5-15P
Nominal Input Voltage120 VAC
Plug StyleRight Angle – 45° Offset
Output
On Battery Frequency50/60 Hz ± 1% (auto-sensing)
On Battery Voltage120 VAC ± 5%
On Battery WaveformSimulated Sine Wave
Outlets – Battery & Surge Protected6
Outlets – Eco Controlled3
Outlets – Surge-Only Protected6
Outlets – Total12
Outlets – Widely Spaced4
Overload ProtectionInternal Circuitry Limiting
Circuit Breaker Protected
Typical Transfer Time4 ms
VA750 VA
Watts450 W
Management & Communications
Audible AlarmsBattery Mode
Low Battery
Overload
HID Compliant USB PortYes
LED IndicatorsPower On
ECO On/Off
Management CableUSB Cable
Software (Free Download)PowerPanel® Personal
Physical
ColorBlack
Form FactorCompact
Keyhole Mounting SlotsYes
Environmental
Operating Elevation0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity0 – 90 % (non-condensing)
Operating Temperature32 – 104 °F (0 – 40 °C)
Storage Elevation0 – 50000 ft (0 – 15239 m)
Storage Relative Humidity0 – 95% (non-condensing)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyUL1778, cUL CSA C22.2 No.107.3-05, FCC/DoC Class B
Surge Protection & Filtering
EMI/RFI FiltrationYes
Surge Suppression (Joules)526
Warranty
CEG Amount$100000
Connected Equipment GuaranteeLifetime
Extended Warranty OptionWEXT5YR-U1B
Product Warranty3 Years Limited Warranty
