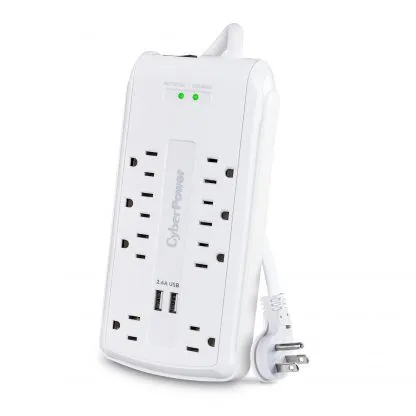

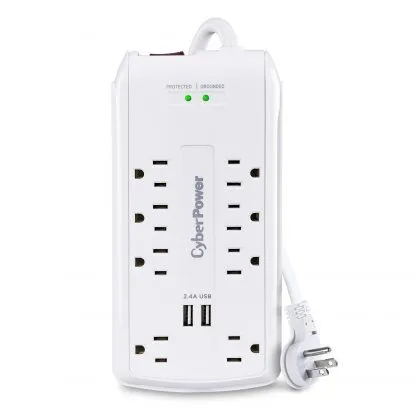

The Professional Surge Protector CSP806U from CyberPower offers vital surge protection for common home and office devices such as computers and electronics. It prevents spikes in energy caused by storms and electrical power surges and is ideal for safeguarding personal computers, phones/faxes/modems, and other consumer electronics. The CSP806U provides 3000 joules of protection and eight surge-protected outlets. Its two USB charge ports (2.4 Amp shared) keep tablets, smartphones, and other rechargeable electronics ready to use. The 6 ft. power cord has a right-angle plug with a 45° off-set.
Features of the CSP806U include automatic shutdown, metal oxide varistor (MOV) technology, and an EMI/RFI noise filter. It also has LED indicators (Protected and Grounded), and impact-resistant casing. The CSP806U comes with a One Year Limited Warranty and a $300,000 Connected Equipment Guarantee.
Features:
- Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. - Automatic Shutdown
Protects connected electronics with the integrated circuit breaker which automatically switches off in the event of an overload that exceeds the model’s ability to suppress the signal. - EMI/RFI Noise Filter
Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality. - Metal Oxide Varistor (MOV) Technology
Allows normal current to pass through the device, while diverting any surges/spikes through the ground circuit, to safeguard connected electronics and the surge suppressor. - USB Charge Ports
Rapidly charge and power USB devices such as tablets (including iPad), smartphones, MP3 players, and other mobile accessories. Ensures maximum durability and prolongs the life of the model. - Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge. - Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
| Input | |
| Circuit Breaker | 15 A |
| Cord Length | 6 ft (1.8 m) |
| Input Plug Type | NEMA 5-15P |
| Maximum Input Current | 15A |
| Output | |
| Outlet Type | 8 – NEMA 5-15R |
| Outlets – Total | 8 |
| Outlets – Widely Spaced | 2 |
| USB Charge Port | Yes |
| USB Charge Port Amperage | 2.4 Amps (Shared) |
| USB Charge Port Quantity | 2 |
| USB Charge Port Standard | Type A |
| USB Charge Port Type | 2 Type A |
| USB Charge Port Voltage | 5 VDC |
| Surge Protection & Filtering | |
| Attenuation | 30 dB |
| Clamping Voltage | 600V (H-N, H-G, N-G) |
| Coax Protection RG6 | None |
| EMI/RFI Filtration | 150 KHz |
| 100 MHz | |
| Yes | |
| Maximum Surge Current | 105000 A |
| Maximum Surge Current H-G | 30000 A |
| Maximum Surge Current H-N | 45000 A |
| Maximum Surge Current N-G | 30000 A |
| Maximum Surge Voltage | 6000 V |
| Response Time | <1 Nanosecond |
| Surge Suppression (Joules) | 3000 J |
| Management & Communications | |
| LED Indicators | Protected (green) |
| Grounded (green) | |
| Physical | |
| Color | White |
| Cord Management | No |
| Form Factor | Strip |
| Form Factors Supported | Horizontal Mount in Variety of Other Applications |
| Keyhole Mounting Slots | No |
| Material of Construction | Plastic |
| Safety Covers | No |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 9.91 x 3.99 x 19.81 (cm) |
| Physical Dimensions – (WxHxD) (in) | 3.9 x 1.57 x 7.8 (in) |
| Physical Dimensions – (WxHxD) (mm) | 99 x 40 x 198 (mm) |
| Physical Weight (kg) | 0.6 |
| Physical Weight (lb) | 1.32 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 0.85 |
| Shipping – Weight (lb) | 1.87 |
| Shipping Dimensions – (WxHxD) (cm) | 16.48 x 4.6 x 26.49 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 6.49 x 1.81 x 10.43 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 164.85 x 45.97 x 264.92 (mm) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1363 |
| UL1449 3rd Edition | |
| cUL | |
| Warranty | |
| CEG Amount | $300000 |
| Connected Equipment Guarantee | Lifetime |
| Product Warranty | 1 Year Limited Warranty |
