SECO-LARM - E-941SA-80Q - 80-lb Electromagnetic Lock
Part number:
E-941SA-80Q
Price:
When power is applied to an electromagnetic lock, it activates a built-in electromagnet that attracts a door-mounted steel armature plate, preventing the door from opening. When power is removed, the electromagnet releases the armature, allowing the door to open.
Features:
- ETL, Conforms to UL Std. 294
- 80-lb (36kg) Holding force
- For spaces where small size is required, including cabinets, drawers, etc.
- Low current draw
- No residual magnetism
- MOV Surge protection
- Complete mounting hardware for typical installations
| Holding Force | 12VDC: 80-lb (36kg) 24VDC: 110-lb (51kg) |
| Operating Voltage | 12~24 VDC±10% |
| Current Draw | 12VDC: 60mA 24VDC: 120mA |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level I |
| Standby power | Level I |
| Operating Temperature | 14º~131º F (-10º~55º C) |

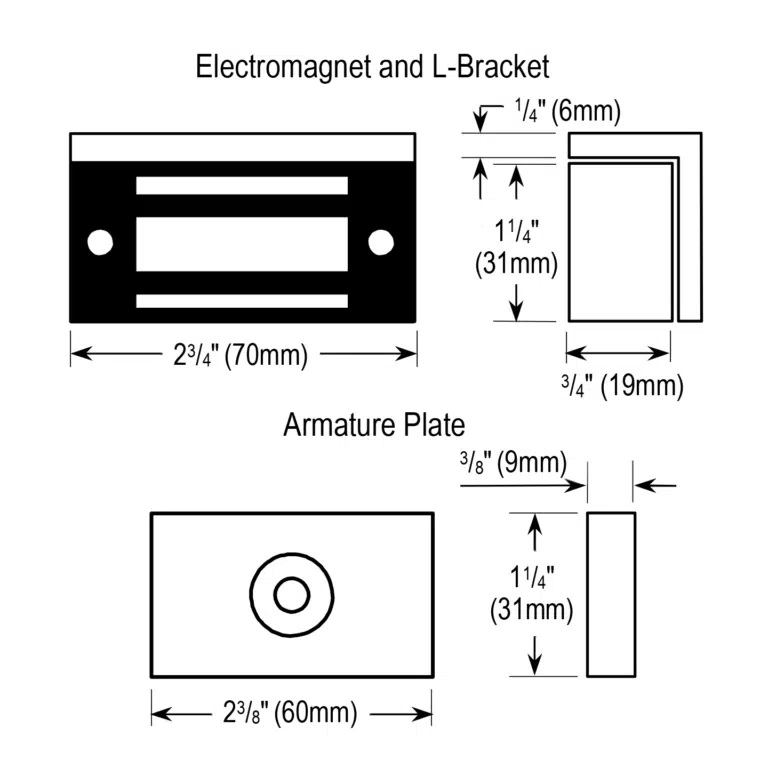

| Dimensions | Magnet: 2-3/4″ x 1-1/4″ x 3/4″ (70 x 31 x 19 mm) Armature: 2-3/8″ x 1-1/4″ x 3/8″ (60 x 31 x 9 mm) |
| Weight | 0.9-lb (410g) |
