he Essential Surge Protector CSB100W offers vital surge protection for common home and office devices such as computers and electronics. It prevents spikes in energy caused by storms and electrical power surges from reaching your electronic equipment. The CSB100W provides 900 joules of protection, a surge-protected outlet (widely spaced for transformer plugs), and a wall tap plug.
Features of the CSB100W include metal oxide varistor (MOV) technology, an EMI/RFI noise filter, a LED status indicator, and impact-resistant casing. This compact surge suppressor comes with a Limited Lifetime Warranty and a Connected Equipment Guarantee.
Features:
Input | |
Circuit Breaker | None |
Cord Length | Walltap |
Input Plug Type | NEMA 5-15P |
Maximum Input Current | 15A |
Plug Style | Wall Tap |
Switch | None |
Output | |
Outlet Type | 1 – NEMA 5-15R |
Outlets – Total | 1 |
Outlets – Widely Spaced | 1 |
USB Charge Port | No |
Surge Protection & Filtering | |
Attenuation | 32 dB |
Clamping Voltage | 800V (H-N, H-G, N-G) |
Coax Protection RG6 | None |
EMI/RFI Filtration | 150 KHz |
100 MHz | |
Yes | |
Maximum Surge Current | 45000 A |
Maximum Surge Current H-G | 15000 A |
Maximum Surge Current H-N | 15000 A |
Maximum Surge Current N-G | 15000 A |
Maximum Surge Voltage | 6000 V |
Response Time | <1 Nanosecond |
Surge Suppression (Joules) | 900 J |
Physical | |
Color | White |
Form Factors Supported | Direct Plug |
Material of Construction | Plastic |
Dimensions | |

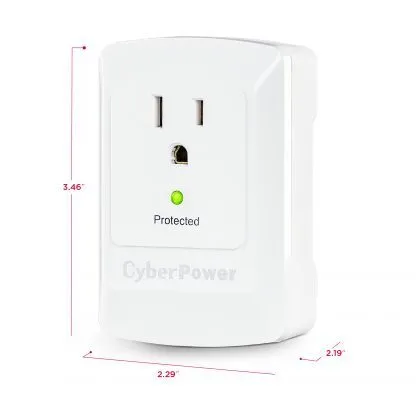

Physical Dimensions – (WxHxD) (cm) | 5.82 x 8.79 x 5.56 (cm) |
Physical Dimensions – (WxHxD) (in) | 2.29 x 3.46 x 2.19 (in) |
Physical Dimensions – (WxHxD) (mm) | 58 x 88 x 56 (mm) |
Physical Weight (kg) | 0.36 |
Physical Weight (lb) | 0.8 |
Dimensions – Shipping | |
Shipping – Weight (kg) | 0.48 |
Shipping – Weight (lb) | 1.05 |
Shipping Dimensions – (WxHxD) (cm) | 10.46 x 7.29 x 15.24 (cm) |
Shipping Dimensions – (WxHxD) (in) | 4.12 x 2.87 x 6.0 (in) |
Shipping Dimensions – (WxHxD) (mm) | 104.65 x 72.9 x 152.4 (mm) |
Certifications | |
Environmental | RoHS Compliant |
Safety | UL1449 3rd Edition |
Warranty | |
CEG Amount | $25,000 |
Connected Equipment Guarantee | Lifetime |
Product Warranty | Limited Lifetime Warranty |
